38639 C (828 OE) - Toro 28" Power Max Snow Thrower (SN: 290000001 - 290999999) (2009) GOVERNOR, CONTROLS AND IGNITION ASSEMBLY BRIGGS AND STRATTON 15D104-0113-E8 Parts Diagram

28" Power Max Snow Thrower

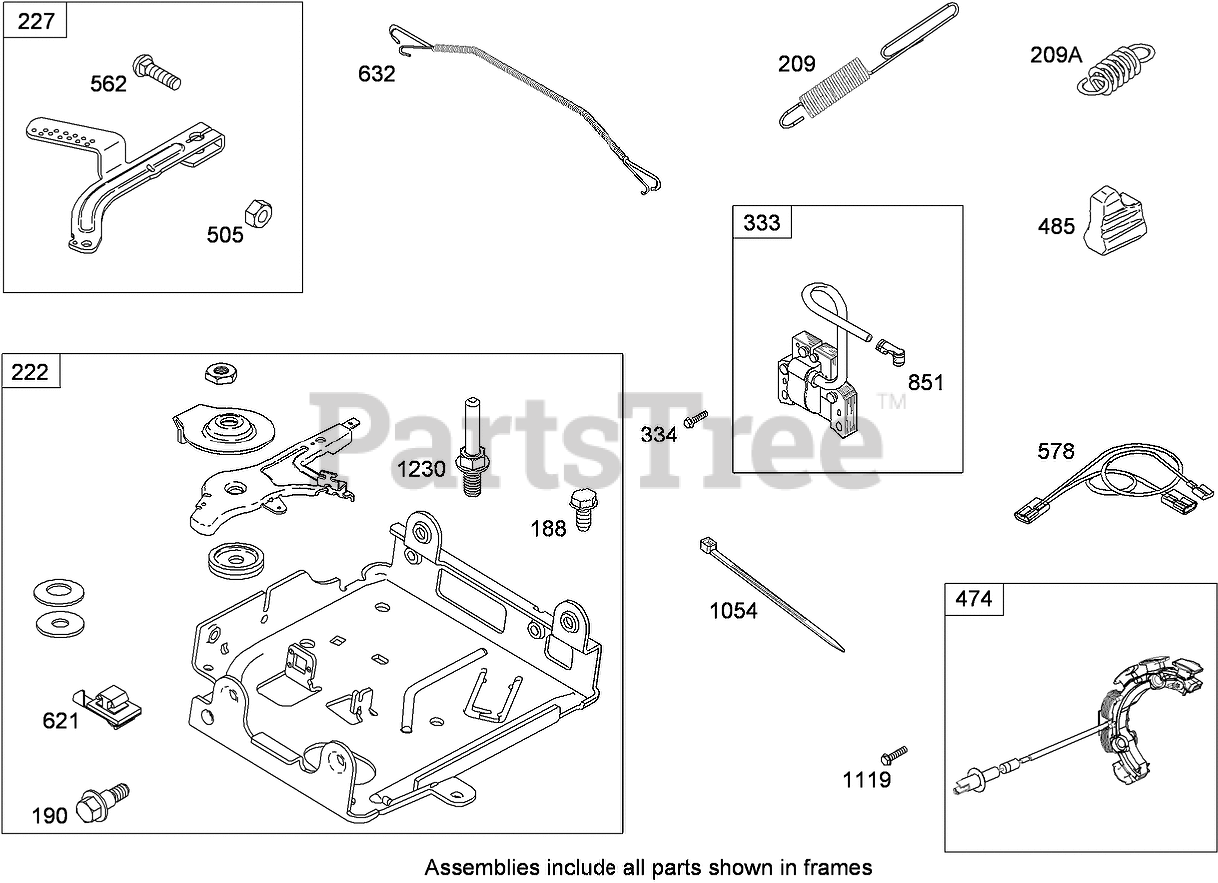

GOVERNOR, CONTROLS AND IGNITION ASSEMBLY BRIGGS AND STRATTON 15D104-0113-E8 Parts Diagram

  • Title
188

Briggs & Stratton 699479

Screw (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 699220

Screw (Fuel Tank)
(Superseded to 597133)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 6

0

209

Briggs & Stratton 692571

Spring-Governor

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 1 left!

0

209A

Briggs & Stratton 691278

Spring-Governor (Platinum)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 2 left!

0

222

Briggs & Stratton 793109

Bracket-Control

Note: Obtain parts from www.briggsandstratton.com

$40.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 794367

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, Qty 6

0

333

Briggs & Stratton 695711

Armature-Magneto
(Superseded to 796964)

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

In Stock, Qty 10

0

334

Briggs & Stratton 699477

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 793640

Alternator

Note: Obtain parts from www.briggsandstratton.com

$67.99

$

Usually ships in 2-12 days

0

485

Briggs & Stratton 695755

Knob-Control

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 1 left!

0

505

Briggs & Stratton 691251

Nut (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

562

Briggs & Stratton 691119

Bolt (Governor Control Lever)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

578

Briggs & Stratton 794819

Wire Asm

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 692310

Switch-Stop

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

632

Briggs & Stratton 692653

Link-Spring, Mechanical Governor

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

851

Toro 493880s

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1054

Briggs & Stratton 280275

Tie-Cable

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 699772

Screw (Alternator)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

1230

Briggs & Stratton 699847

Stud (Control Bracket)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0
