38639 C (828 OE) - Toro 28" Power Max Snow Thrower (SN: 280000001 - 280999999) (2008) CYLINDER ASSEMBLY BRIGGS AND STRATTON 15D104-0112-E1 Parts Diagram

28" Power Max Snow Thrower

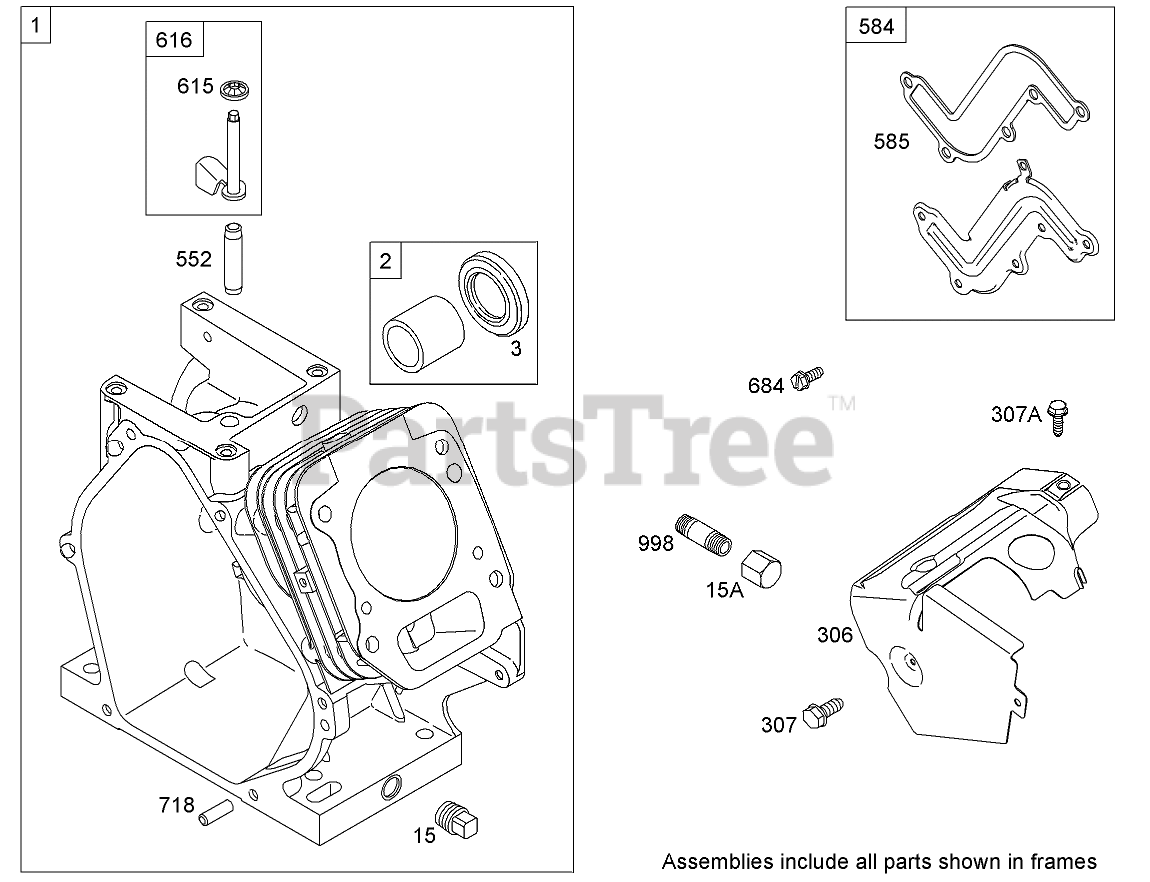

CYLINDER ASSEMBLY BRIGGS AND STRATTON 15D104-0112-E1 Parts Diagram

  • Title
1

Briggs & Stratton 794188

Cylinder Asm

Note: Obtain parts from www.briggsandstratton.com

$232.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing and Seal Kit (Magneto Side)
(Superseded to 796961)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

15

Briggs & Stratton 691686

Plug-Drain, Oil (Square Head)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 2 left!

0

15A

Briggs & Stratton 695757

Plug-Oil Drain

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 695710

Shield-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 699483

Screw (Cylinder Shield)
(Superseded to 794822)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

307A

Briggs & Stratton 699234

Screw (Cylinder Shield)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

552

Briggs & Stratton 692346

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 791759

Cover-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

585

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

585

Gasket-Passage, Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Not available

615

Briggs & Stratton 692576

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

684

Briggs & Stratton 793369

Screw (Breather Passage Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

998

Briggs & Stratton 794701

Pipe-Oil

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

Usually ships in 2-12 days

0
