38637 C (828 OXE) - Toro 28" Power Max Snow Thrower (SN: 290000001 - 290999999) (2009) CYLINDER ASSEMBLY BRIGGS AND STRATTON 15D104-0113-E8 Parts Diagram

28" Power Max Snow Thrower

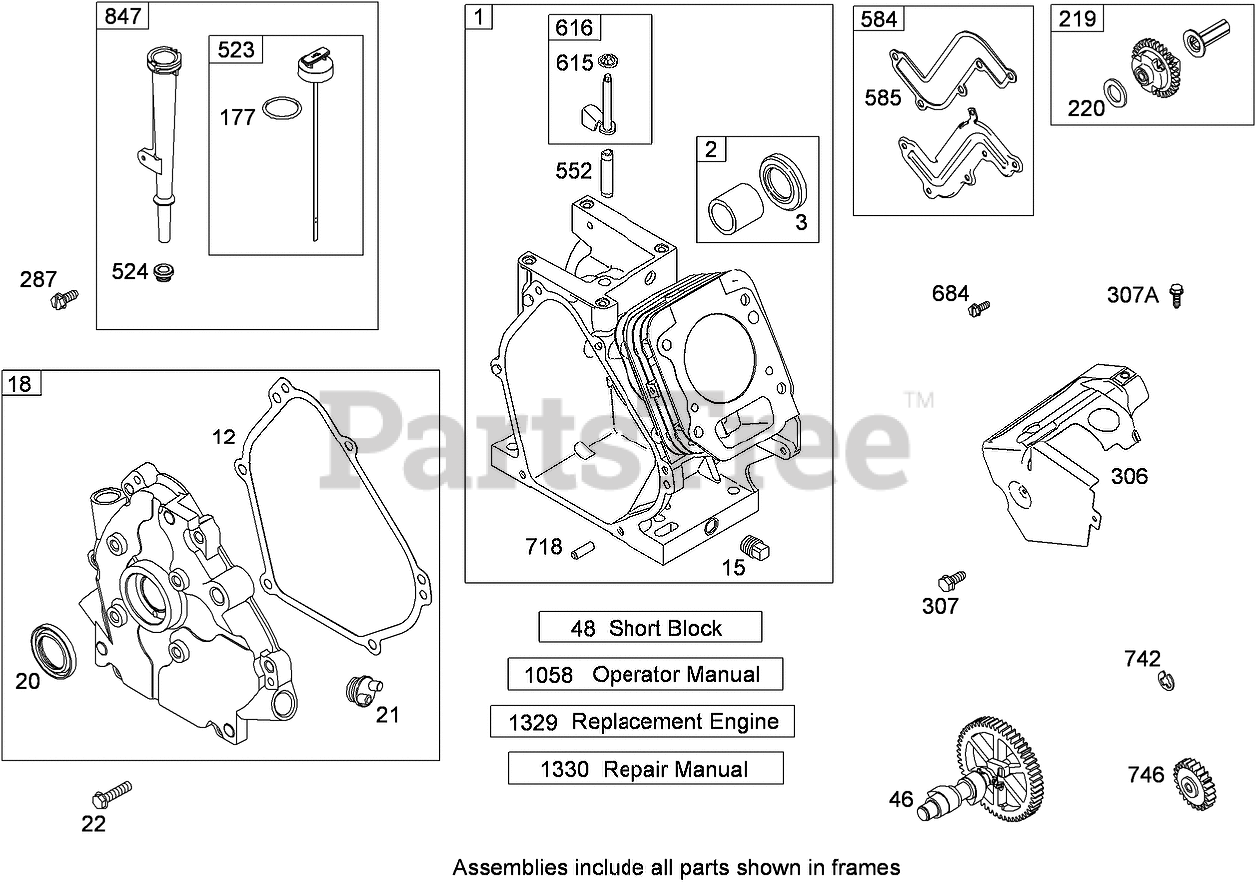

CYLINDER ASSEMBLY BRIGGS AND STRATTON 15D104-0113-E8 Parts Diagram

  • Title

1

Briggs & Stratton 794188

Cylinder Asm

Note: Obtain parts from www.briggsandstratton.com

$232.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing and Seal Kit (Magneto Side)
(Superseded to 796961)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

12

Briggs & Stratton 699485

Gasket-Cover, Crankcase

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

In Stock, Qty 15

0

12

Briggs & Stratton 699485

Gasket-Cover, Crankcase

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 15

0

15

Briggs & Stratton 691686

Plug-Drain, Oil (Square Head)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

18

Briggs & Stratton 699696

Cover-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$199.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

Seal-Oil

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 281658S

Cap-Fill, Oil

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 699478

Screw (Crankcase Cover to Sump)
(Superseded to 594761)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 693404

Camshaft

Note: Obtain parts from www.briggsandstratton.com

$73.99

$

In Stock, Qty 5

0

48

Briggs & Stratton 791711

Short Block
(Superseded to 791711A)

Note: Obtain parts from www.briggsandstratton.com

$482.99

$

Usually ships in 2-12 days

0

177

Briggs & Stratton 691031

Seal-O Ring (Dipstick)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

219

Briggs & Stratton 693578

Gear-Governor

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

Usually ships in 2-12 days

0

220

Briggs & Stratton 691724

Washer (Governor Gear)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 2 left!

0

287

Briggs & Stratton 699629

Screw (Dipstick Tube)
(Superseded to 699234)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

306

Briggs & Stratton 695710

Shield-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 699483

Screw (Cylinder Shield) (M4)
(Superseded to 794822)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

307A

Briggs & Stratton 699234

Screw (Cylinder Shield) (M5)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

523

Briggs & Stratton 693618

Dipstick

Note: Obtain parts from www.briggsandstratton.com

$15.99

$

Usually ships in 2-12 days

0

524

Toro 281730s

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

552

Briggs & Stratton 692346

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 791759

Cover-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 791760

Gasket-Passage, Breather

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 791760

Gasket-Passage, Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 791760

Gasket-Passage, Breather

Note: Included in Valve Gasket Set (Ref. No. 1095)

$9.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 692576

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 692547

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

684

Briggs & Stratton 793369

Screw (Breather Passage Cover)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

742

Briggs & Stratton 692564

Retainer-E Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 790278

Gear-Idler

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 693617

Dipstick and Tube ASM

Note: Obtain parts from www.briggsandstratton.com

$22.99

$

In Stock, only 4 left!

0

1058

Briggs & Stratton 277104

Operator Manual
(Superseded to 279128TRI)

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0
