38637 (828 OXE) - Toro 28" Power Max Snow Thrower (SN: 310000001 - 310999999) (2010) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 15D104-0112-E1 Parts Diagram

28" Power Max Snow Thrower

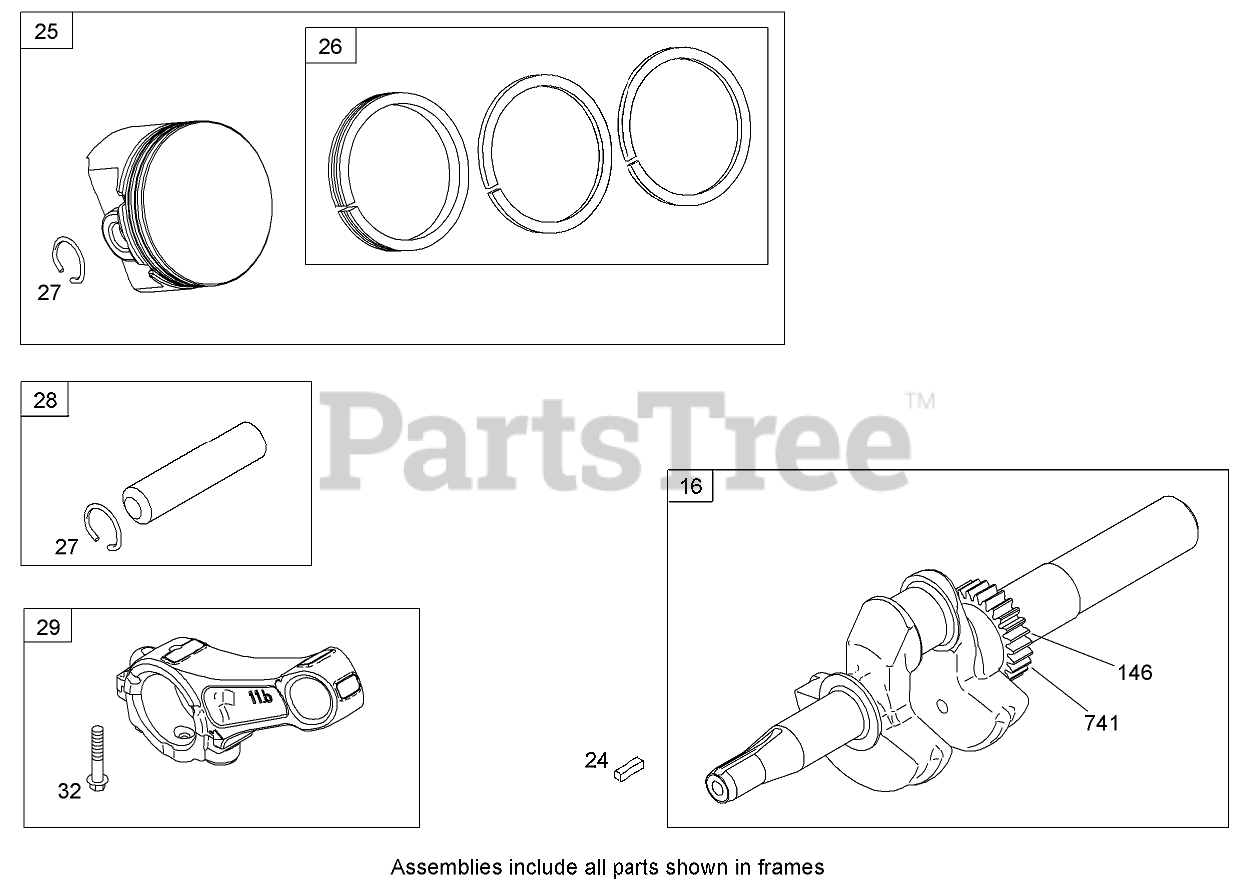

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 15D104-0112-E1 Parts Diagram

  • Title
16

Briggs & Stratton 791721

Crankshaft

Note: Obtain parts from www.briggsandstratton.com

$167.99

$

Usually ships in 2-12 days

0

24

Toro 222698s

Key-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Briggs & Stratton 791786

Piston Asm (Std)

Note: Obtain parts from www.briggsandstratton.com

$122.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 791791

Piston Asm (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$130.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791787

Ring Set (Std)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 791792

Ring Set (.020 O S)

Note: Obtain parts from www.briggsandstratton.com

$45.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690975

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 10

0

28

Briggs & Stratton 690229

Pin-Piston (STD)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 791783

Rod-Connecting

Note: Obtain parts from www.briggsandstratton.com

$61.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 791784

Screw (Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

146

Briggs & Stratton 690979

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 7

0

741

Briggs & Stratton 695087

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

Usually ships in 2-12 days

0
