38635 (828 LE) - Toro 28" Power Max Snow Thrower (SN: 240000001 - 240999999) (2004) REWIND STARTER ASSEMBLY NO. 590733 (OPTIONAL) TECUMSEH HMSK-100 159495Y Parts Diagram

28" Power Max Snow Thrower

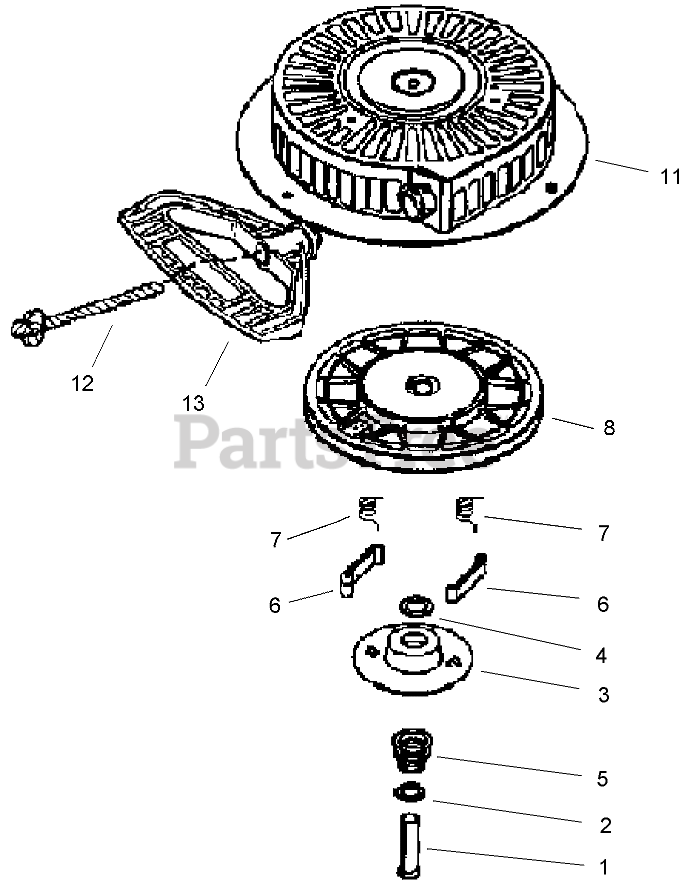

REWIND STARTER ASSEMBLY NO. 590733 (OPTIONAL) TECUMSEH HMSK-100 159495Y Parts Diagram

  • Title

1

Tecumseh 590599A

Spring Pin (Incl. Ref. #4)

Note: Original Tecumseh Part

$5.49

$

In Stock, only 2 left!

0

2

Tecumseh 590600

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 590696

Retainer

Note: Original Tecumseh Part

$7.49

$

In Stock, only 1 left!

0

4

Tecumseh 590601

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590697

Spring-Brake

Note: Original Tecumseh Part

$3.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590698

Dog-Starter

Note: Original Tecumseh Part

$6.99

$

In Stock, only 4 left!

0

7

Tecumseh 590699

Spring-Dog

Note: Original Tecumseh Part

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 590709

Pulley and Rewind Spring ASM

Note: Original Tecumseh Part

$18.99

$

In Stock, only 1 left!

0

11

Tecumseh 590734A

Starter Housing ASM
(Superseded to 590734B)

Note: Original Tecumseh Part

$

$

Not available

12

Tecumseh 590535

Rope-Starter (98 cut to length)

Note: Original Tecumseh Part

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Original Tecumseh Part

$5.49

$

In Stock, only 1 left!

0
