38632 (828 LE) - Toro 28" Power Max Snow Thrower (SN: 240000001 - 240999999) (2004) CHAIN DRIVE ASSEMBLY Parts Diagram

28" Power Max Snow Thrower

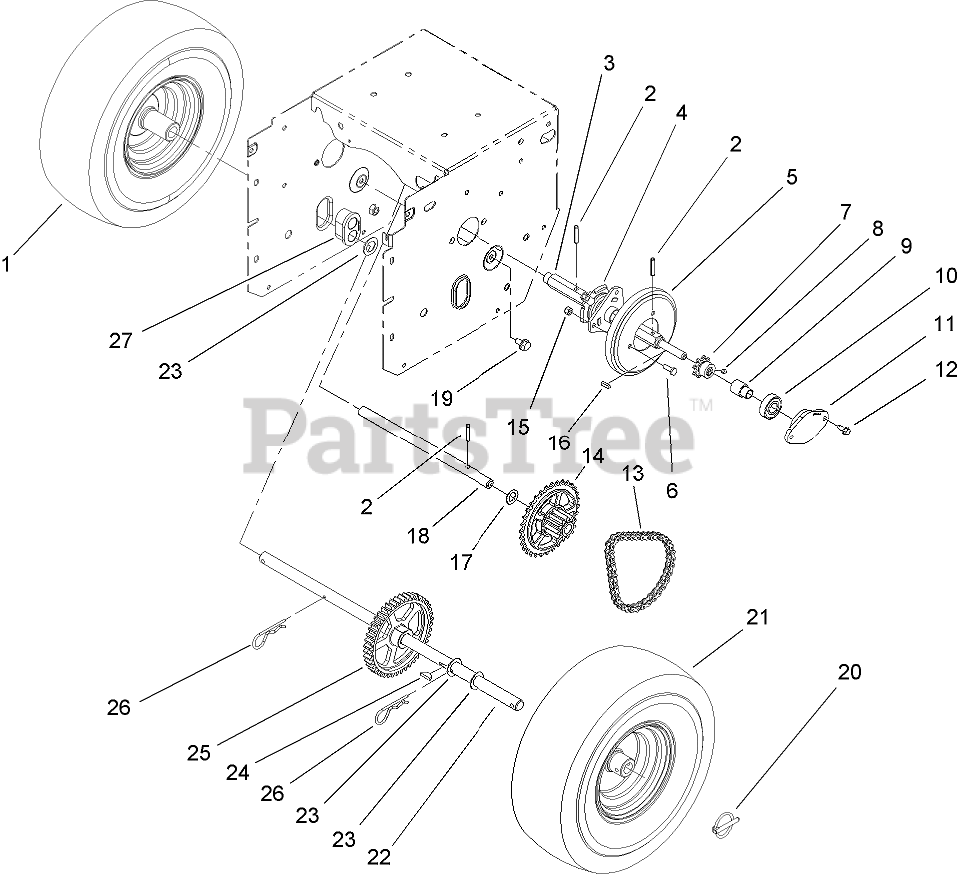

CHAIN DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 107-3043

RIM-TIRE

$142.99

$

Usually ships in 3-6 days

0

1

$84.99

$

Usually ships in 3-6 days

0

2

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

3

Toro 106-4593

SHAFT-HEX
(Superseded to 108-7317)

$

$

Not available

4

Toro 106-4434

TRUNNION-HEX

$106.99

$

Usually ships in 3-6 days

0

5

Toro 106-4480

WHEEL-FRICTION
(Superseded to 119-1567)

$47.99

$

In Stock, Qty 10

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 106-7317

SPROCKET-8 TOOTH

$37.99

$

Usually ships in 3-6 days

0

8

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

9

Toro 106-7250

SPACER-BEARING, SLEEVE

$15.99

$

In Stock, only 2 left!

0

10

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

11

Toro 106-7308

RETAINER-BEARING

$

$

Not available

12

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 15

0

13

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0

13

Toro 106-7293

CHAIN-ROLLER

$65.99

$

Usually ships in 3-6 days

0

14

Toro 106-7261

SPROCKET ASM
(Superseded to 108-0013)

$94.99

$

In Stock, only 2 left!

0

15

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 94-8850

KEY-SQUARE

$2.99

$

Usually ships in 3-6 days

0

17

Toro 107-3041

WASHER-FLAT

$1.49

$

In Stock, Qty 9

0

18

Toro 106-4592

SHAFT-INTERMEDIATE

$98.99

$

Usually ships in 3-6 days

0

19

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

20

Toro 107-3039

KLIK PIN ASM

$10.99

$

In Stock, only 1 left!

0

21

Toro 107-3043

RIM-TIRE

$142.99

$

Usually ships in 3-6 days

0

21

$84.99

$

Usually ships in 3-6 days

0

22

Toro 106-4449

SHAFT-AXLE

$93.99

$

Usually ships in 3-6 days

0

23

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

24

Toro 3257-7

KEY-WOODRUFF

$9.99

$

In Stock, Qty 5

0

25

Toro 106-4572

GEAR-AXLE, 44 TOOTH

$83.99

$

Usually ships in 3-6 days

0

26

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, Qty 12

0

27

Toro 106-4558

BEARING-AXLE

$31.99

$

Usually ships in 3-6 days

0

30

Toro 99-9300

CORD-EXTENSION
(Superseded to 117-0020)

Note: Not illustrated

$23.99

$

Usually ships in 3-6 days

0
