38631 (828 LXE) - Toro 28" Power Max Snow Thrower (SN: 260000001 - 260999999) (2006) CHUTE ASSEMBLY Parts Diagram

28" Power Max Snow Thrower

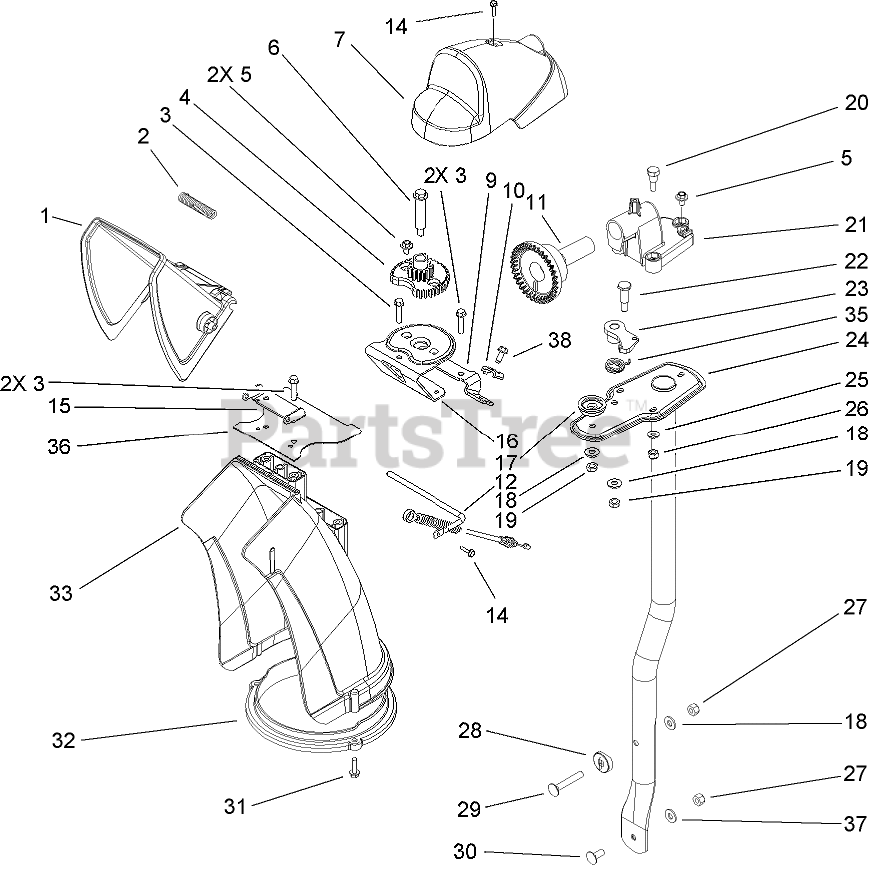

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 106-7309

DEFLECTOR-CHUTE

$

$

Not available

2

Toro 106-4594

SPRING-TORSION

$6.49

$

In Stock, only 1 left!

0

3

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

4

Toro 106-4472

GEAR-CHUTE

$18.99

$

Usually ships in 3-6 days

0

5

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

6

Toro 100-9880

BOLT-SHOULDER
(Superseded to 136-7199)

$5.49

$

Usually ships in 3-6 days

0

7

Toro 106-4585

COVER-GEAR, CHUTE

$14.99

$

Usually ships in 3-6 days

0

9

Toro 106-7296

BRACKET-CABLE, CLAMP
(Superseded to 136-7107)

$11.99

$

Usually ships in 3-6 days

0

10

Toro 106-7297

CLAMP-CABLE
(Superseded to 136-7191)

$4.99

$

Usually ships in 3-6 days

0

11

Toro 106-4471

GEAR-FACE

$27.99

$

In Stock, only 1 left!

0

12

Toro 107-1021

ROD-DEFLECTOR

$17.99

$

Usually ships in 3-6 days

0

14

Toro 98-1375

SCREW-HWH

$2.49

$

In Stock, Qty 12

0

15

Toro 106-7266

BRACKET-DEFLECTOR
(Superseded to 136-7105)

$8.49

$

Usually ships in 3-6 days

0

16

Toro 106-4582-03

BRACKET-SUPPORT, CHUTE

$14.99

$

Usually ships in 3-6 days

0

17

Toro 106-4422

SPACER-CHUTE

$3.99

$

In Stock, only 1 left!

0

18

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

20

Toro 106-7276

SCREW-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

21

Toro 106-7257

MOUNT-GEAR, FACE

$28.99

$

Usually ships in 3-6 days

0

22

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

23

Toro 106-4476

LATCH-CHUTE

$17.99

$

Usually ships in 3-6 days

0

24

Toro 106-7253-03

TUBE-SUPPORT

$129.99

$

Usually ships in 3-6 days

0

25

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 106-7260

WASHER-CURVED

$9.49

$

Usually ships in 3-6 days

0

29

Toro 3230-5

SCREW-CARR

$0.99

$

Usually ships in 3-6 days

0

30

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

31

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

32

Toro 105-9991

RING-CHUTE

$13.99

$

In Stock, Qty 7

0

33

Toro 106-4440

CHUTE-DISCHARGE

$77.99

$

Usually ships in 3-6 days

0

35

Toro 108-7315

SPRING-TORSION

$5.99

$

In Stock, Qty 7

0

36

Toro 108-5052

SEAL-CHUTE

$8.99

$

In Stock, only 3 left!

0

37

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

38

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0
