38629 C (826 OE) - Toro 26" Power Max Snow Thrower (SN: 280000001 - 280999999) (2008) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 15D104-0112-E1 Parts Diagram

26" Power Max Snow Thrower

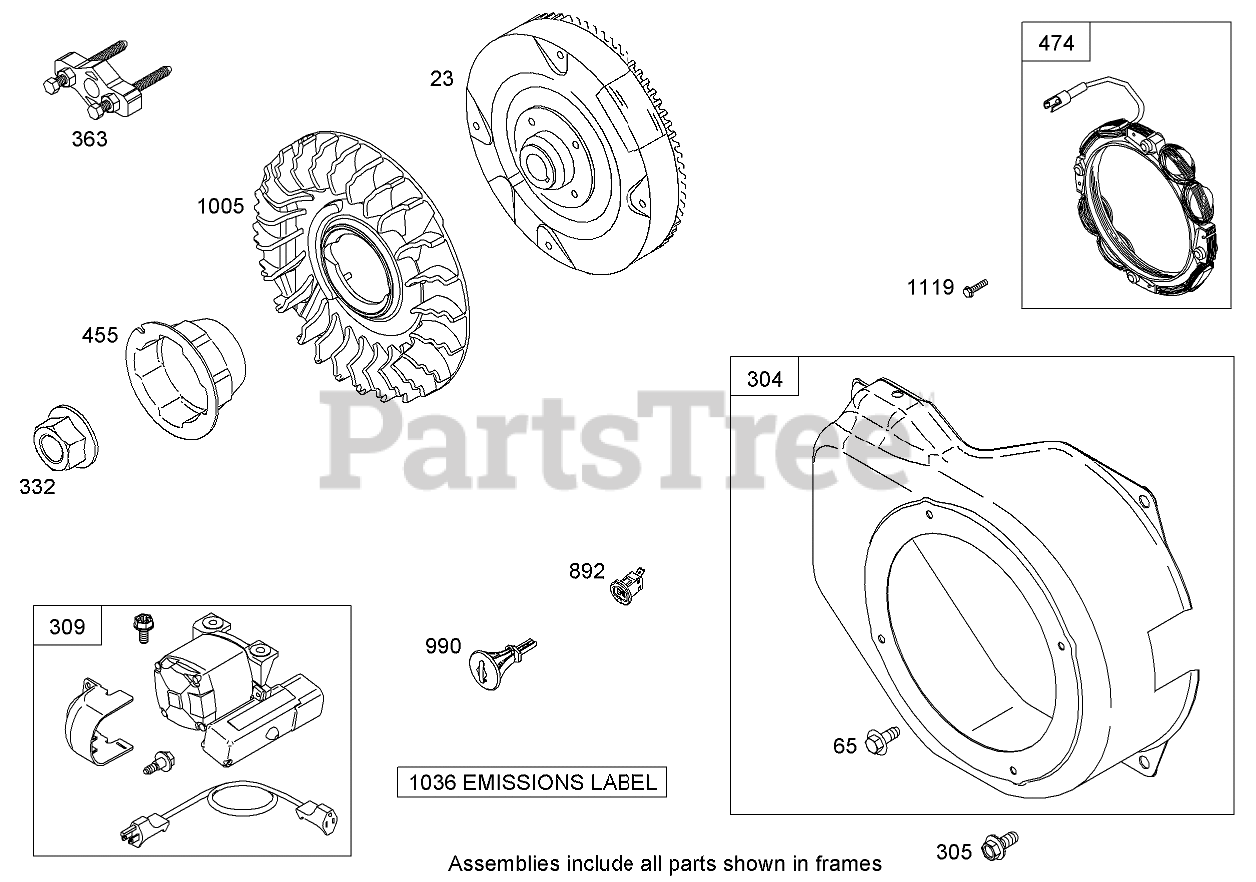

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 15D104-0112-E1 Parts Diagram

  • Title
23

Briggs & Stratton 699516

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$199.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 699228

Screw (Rewind Starter)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 3 left!

0

304

Briggs & Stratton 699598

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$90.99

$

In Stock, only 4 left!

0

305

Briggs & Stratton 699480

Screw (Blower Housing)
(Superseded to 699481)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 4 left!

0

309

Briggs & Stratton 699786

Motor-Starter (230V)

Note: Obtain parts from www.briggsandstratton.com

$428.99

$

Usually ships in 2-12 days

0

309

Toro 699192

Motor-Starter (120V)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

332

Briggs & Stratton 792723

Nut (Flywheel)
(Superseded to 591988)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

363

Briggs & Stratton 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 692591

Cup-Flywheel
(Superseded to 591302)

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 791743

Alternator
(Superseded to 793640)

Note: Obtain parts from www.briggsandstratton.com

$67.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 791944

Switch-Key

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

990

Briggs & Stratton 695756

Key
(Superseded to 794696)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 19

0

1005

Briggs & Stratton 794273

Fan-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$16.99

$

In Stock, Qty 8

0

1036

Label-Emissions (Available from an authorized Briggs & Stratton Service Dealer)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1119

Briggs & Stratton 699772

Screw (Alternator)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0
