38629 (826 OE) - Toro 26" Power Max Snow Thrower (SN: 290000001 - 290999999) (2009) FRAME ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

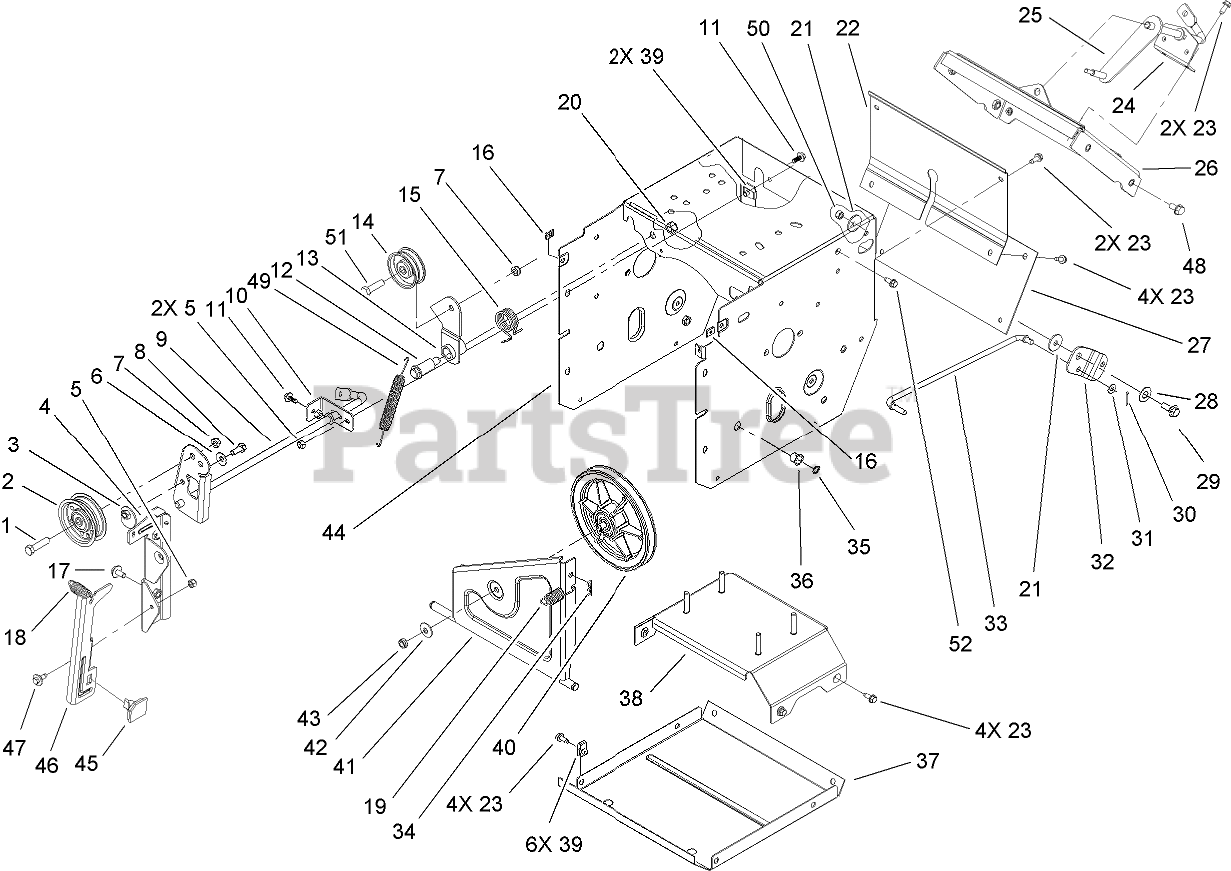

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 92-7104

PULLEY-IDLER

$29.99

$

In Stock, only 1 left!

0

3

Toro 107-1047

NUT

$5.49

$

Usually ships in 3-6 days

0

4

Toro 107-1039

BRACKET-IDLER, IMPELLER
(Superseded to 136-7112)

$22.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

6

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

7

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

8

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 107-3838-03

IMPELLER CLUTCH ASM

$39.99

$

Usually ships in 3-6 days

0

10

Toro 106-7341

BRACKET-REAR, CLUTCH

$15.99

$

Usually ships in 3-6 days

0

11

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

12

Toro 108-5056

BOLT-SHOULDER

$7.99

$

Usually ships in 3-6 days

0

13

Toro 108-5058

ARM-IDLER, TRACTION

$35.99

$

Usually ships in 3-6 days

0

14

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

15

Toro 108-7332

SPRING-TORSION

$6.49

$

In Stock, only 2 left!

0

16

Toro 107-1013

NUT-SPEED, U-TYPE

$3.49

$

In Stock, only 2 left!

0

17

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

18

Toro 107-1045

SPRING-EXTENSION

$5.49

$

Usually ships in 3-6 days

0

19

Toro 107-1003

SPRING-EXTENSION

$5.49

$

In Stock, only 3 left!

0

20

Toro 3296-76

NUT-LOCK, NI

$4.99

$

Usually ships in 3-6 days

0

21

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

22

Toro 106-4556-01

COVER-UPPER

$31.99

$

Usually ships in 3-6 days

0

23

Toro 32144-10

SCREW-HWH

$4.99

$

In Stock, Qty 7

0

24

Toro 108-0036

BRACKET-ROD, SHIFT
(Superseded to 136-7114)

$6.49

$

Usually ships in 3-6 days

0

25

Toro 106-7268

LEVER-CONTROL, TRACTION
(Superseded to 136-7106)

$49.99

$

Usually ships in 3-6 days

0

26

Toro 108-0026-01

SHIFT PLATE ASM

$63.99

$

Usually ships in 3-6 days

0

27

Toro 106-7345-01

COVER-LOWER

$14.99

$

In Stock, only 4 left!

0

28

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

29

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

30

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

31

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

32

Toro 107-1011

BELLCRANK-DRIVE

$9.49

$

Usually ships in 3-6 days

0

33

Toro 106-4467

LINK-CONTROL, SPEED

$21.99

$

Usually ships in 3-6 days

0

34

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

35

Toro 32151-61

RING-RETAINING

$2.99

$

In Stock, Qty 20+

0

36

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

37

Toro 106-7330-01

PAN-BOTTOM

$38.99

$

In Stock, only 3 left!

0

38

Toro 112-8128

FRAME BRACE ASM

$51.99

$

Usually ships in 3-6 days

0

39

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

40

Toro 108-0031

PULLEY-TRACTION
(Superseded to 136-7319)

$106.99

$

Usually ships in 3-6 days

0

41

Toro 108-7307

BRACKET-WHEEL, FRICTION
(Superseded to 136-7118)

$78.99

$

Usually ships in 3-6 days

0

42

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

43

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

44

Toro 114-9259-01

TRACTION FRAME ASM

$

$

Not available
