38623x5D - Murray 38" Lawn Tractor (1996) Chassis & Hood Parts Diagram

38" Lawn Tractor

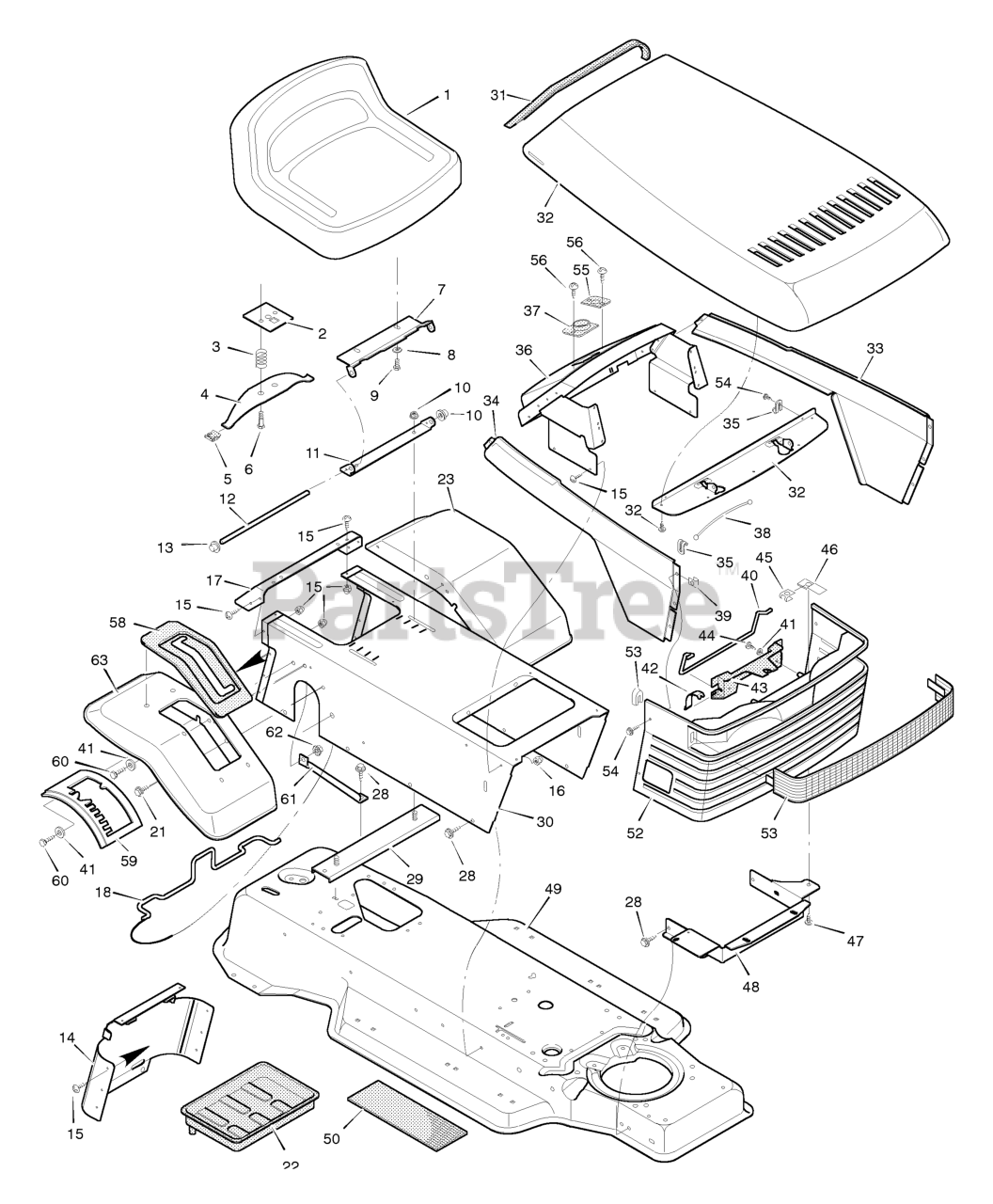

Chassis & Hood Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Murray 091963

Plate Assembly, Switch

$12.99

$

Usually ships in 2-12 days

0

3

Murray 164X26MA

Spring, Compression

$3.49

$

Usually ships in 2-12 days

0

4

Murray 091964MA

Spring, Seat

$

$

Not available

5

Murray 091822MA

Glide, Spring

$8.49

$

Usually ships in 2-12 days

0

6

Murray 009X38MA

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

7

Murray 92334E701

Support, Seat

$76.99

$

Usually ships in 2-12 days

0

8

Murray 018X16MA

Lockwasher

$3.99

$

Usually ships in 2-12 days

0

9

Murray 001X45MA

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

10

Murray 015X88MA

Locknut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

11

Murray 091729E701

Bracket, Pivot

$

$

Currently unavailable

12

Murray 91730E701

Rod, Pivot

$

$

Currently unavailable

13

Murray 028X23MA

Cap, Push On
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

14

Murray 92443E701

Cap, Console

$

$

Currently unavailable

15

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

16

Murray 15X120

Locknut

$

$

Currently unavailable

17

Murray 91724E701

Fender, Apron

$

$

Currently unavailable

18

Murray 092725

Clamp, Battery

$16.99

$

Usually ships in 2-12 days

0

21

$4.99

$

In Stock, only 1 left!

0

22

Murray 091895MA

Tray, Battery

$

$

Not available

23

$37.99

$

Usually ships in 2-12 days

0

25

$1.99

$

Usually ships in 2-12 days

0

28

$

$

Not available

29

Murray 091857E701

Channel Assembly

$

$

Currently unavailable

30

$

$

Currently unavailable

31

Murray 021765

Trim, Edge

$

$

Currently unavailable

32

Murray 092089E245

Hood Assembly

$

$

Currently unavailable

33

Murray 93133E701

Panel, Left

$

$

Currently unavailable

34

Murray 91778E701

Panel, Right

$

$

Currently unavailable

35

Murray 092013

Clip, Cable

$

$

Currently unavailable

36

Murray 93175E701

Dash Assembly

$

$

Currently unavailable

37

Murray 093135MA

Bearing, Steering

$2.49

$

Usually ships in 2-12 days

0

38

$

$

Currently unavailable

39

Murray 028X59MA

U- Fastener

$3.99

$

Usually ships in 2-12 days

0

40

Murray 091980 Z

Rod, Hinge

$

$

Currently unavailable

41

Murray 17X382

Washer

$

$

Currently unavailable

42

Murray 091979MA

Spring, Hood

$59.99

$

Usually ships in 2-12 days

0

43

Murray 091978

Bracket, Hood Mount

$

$

Currently unavailable

44

$4.49

$

In Stock, only 1 left!

0

45

Murray 028X61MA

Nut, Speed

$4.49

$

Usually ships in 2-12 days

0

46

Murray 092005 Z

Shield, Heat

$

$

Currently unavailable

47

$3.99

$

Usually ships in 2-12 days

0

48

Murray 91723E701

Support, Grille

$

$

Currently unavailable

49

Murray 92815E701

Frame Assembly

$219.99

$

Usually ships in 2-12 days

0

50

$

$

Not available

52

$

$

Currently unavailable

53

Murray 091850

Lens

Note: (Included with Ref. No. 52)

$

$

Currently unavailable

54

$3.49

$

Usually ships in 2-12 days

0

55

Murray 093155

Bearing

$

$

Currently unavailable

56

$3.99

$

Usually ships in 2-12 days

0

58

Murray 091905

Cover, Shift

$

$

Not available

59

Murray 91892E701

Gate, Shift

$

$

Currently unavailable

60

Murray 001X38MA

Bolt, Hex

$4.49

$

In Stock, Qty 18

0

61

Murray 91910E701

Strut, Shifter

$

$

Currently unavailable

62

Murray 015X66MA

Locknut
(Superseded to 703914)

$3.49

$

In Stock, Qty 14

0

63

Murray 092379E245

Fender, SOG

$

$

Currently unavailable

--

Murray F-96703

Instruction Book

$

$

Currently unavailable

--

Murray F-96875

Repair Parts Book

$

$

Currently unavailable

--

Murray 44X4293

Decal, Left Hood

$6.99

$

Usually ships in 2-12 days

0

--

Murray 44X4291

Decal, Grille

$

$

Currently unavailable

--

Murray 44X4294

Decal, Right Hood

$6.99

$

Usually ships in 2-12 days

0

--

Murray 44X4295

Decal, Left Console

$

$

Currently unavailable

--

Murray 44X4296

Decal, Right Console

$

$

Currently unavailable

--

Murray 44X119

Decal, Shift Pattern

$0.99

$

Usually ships in 2-12 days

0
