38620 (826 LE) - Toro 26" Power Max Snow Thrower (SN: 250000001 - 250010000) (2005) ENGINE ASSEMBLY NO. 1 TECUMSEH LH318SA-156562H Parts Diagram

26" Power Max Snow Thrower

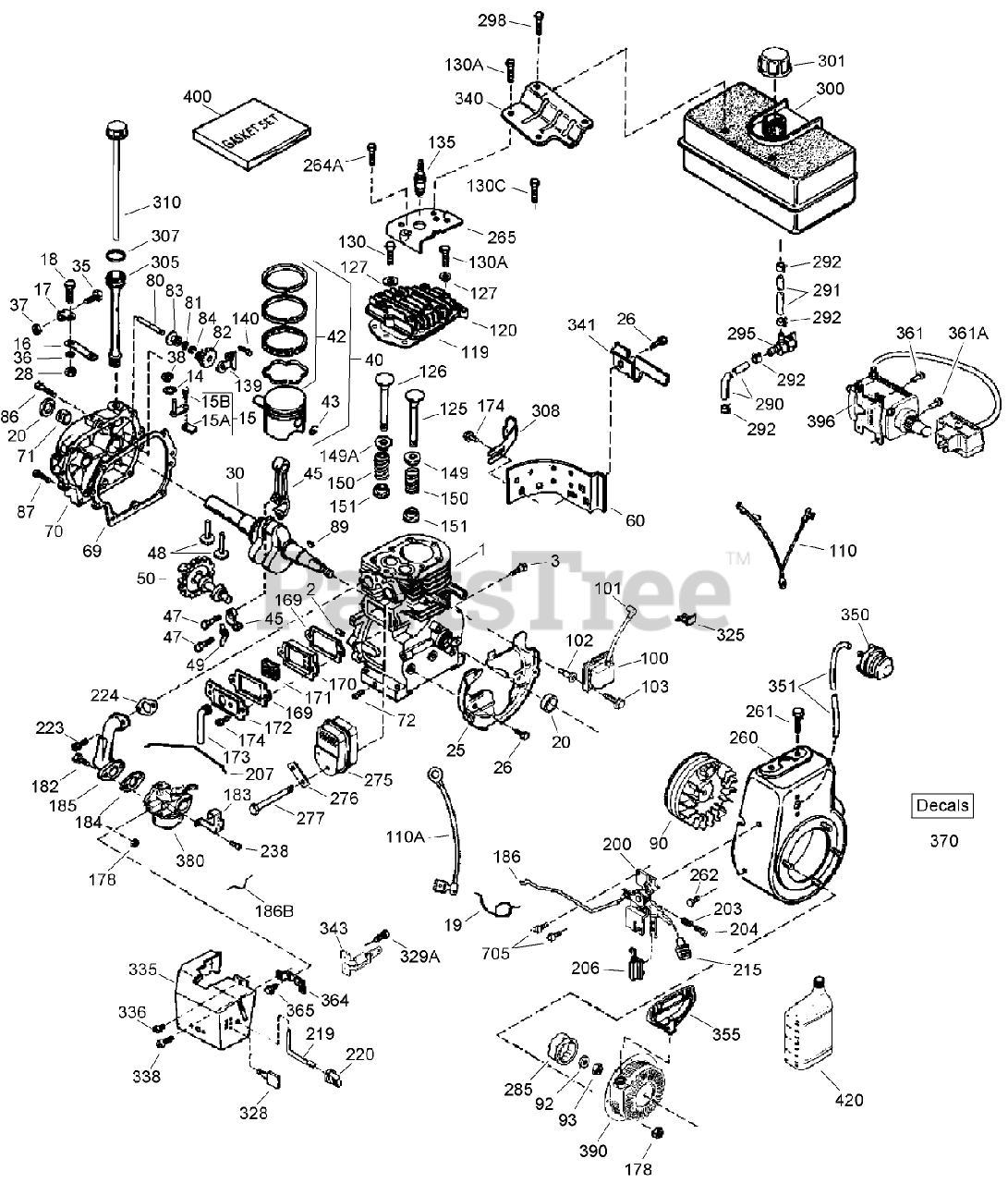

ENGINE ASSEMBLY NO. 1 TECUMSEH LH318SA-156562H Parts Diagram

  • Title

1

Tecumseh 35385

Cylinder ASM (Includes 2, 20, 72, 72A) (3-1/8 Bore)

Note: Original Tecumseh Part

$311.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

Note: Original Tecumseh Part

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

Screw (1/4-20x1/2)

Note: Original Tecumseh Part

$3.99

$

In Stock, Qty 15

0

14

Tecumseh 28277

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 30699C

Rod-Governor (Includes 15A, 15B)

Note: Original Tecumseh Part

$17.99

$

In Stock, only 1 left!

0

15A

Tecumseh 30700

Yoke-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

15B

Tecumseh 650494

Screw (6-40x5/16)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

16

Tecumseh 33454A

Lever-Governor

Note: Original Tecumseh Part

$10.99

$

In Stock, only 1 left!

0

17

Tecumseh 29916

Clamp-Lever, Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 651028

Screw (T-15, 8-32x7/16)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

19

Tecumseh 34663

Spring-Throttle

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0

20

Tecumseh 35319

Seal-Oil

Note: Original Tecumseh Part

$4.99

$

In Stock, only 2 left!

0

25

Tecumseh 37853

Baffle-Housing, Blower

Note: Original Tecumseh Part

$11.99

$

In Stock, only 1 left!

0

26

Tecumseh 650561

Screw (1/4-20x19/32)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 30322

Nut-Lock

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 35571A

Crankshaft

Note: Original Tecumseh Part

$166.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Washer-Lock

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Nut-Lock

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Ring-Retaining

Note: Original Tecumseh Part

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 40011

Piston-Pin and Ring Set (STD)
(Superseded to 40049)

Note: Original Tecumseh Part

$

$

Not available

40

Tecumseh 40012

Piston- Pin and Ring Set (.010 O S)

Note: Original Tecumseh Part

$

$

Not available

42

Tecumseh 40013

Ring Set (STD)

Note: Original Tecumseh Part

$28.99

$

In Stock, only 1 left!

0

42

Tecumseh 40014

Ring Set (.010 O S)

Note: Original Tecumseh Part

$43.99

$

Usually ships in 3-12 days

0

43

Tecumseh 27888

Ring-Retaining, Piston Pin

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

45

Tecumseh 36897

Connecting Rod ASM (Includes 47, 49)
(Superseded to 36897A)

Note: Original Tecumseh Part

$48.99

$

In Stock, only 1 left!

0

47

Tecumseh 651033

Bolt-Rod, Connecting
(Superseded to 651033A)

Note: Original Tecumseh Part

$

$

Not available

48

Tecumseh 34034

Lifter-Valve
(Superseded to 34034A)

Note: Original Tecumseh Part

$10.99

$

In Stock, only 3 left!

0

49

Tecumseh 36896

Dipper-Oil

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

50

Tecumseh 35375

Camshaft (MCR)

Note: Original Tecumseh Part

$

$

Not available

60

Tecumseh 33273A

Extension-Housing, Blower

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

69

Tecumseh 37342

Gasket-Cover, Cylinder

Note: Original Tecumseh Part

$11.99

$

In Stock, only 2 left!

0

69

Tecumseh 37342

Gasket-Cover, Cylinder

Note: Included in Gasket Set 36450C

$11.99

$

In Stock, only 2 left!

0

70

Tecumseh 37847

Cylinder Cover (Includes 71, 75, 80-84)
(Superseded to 38027)

Note: Original Tecumseh Part

$

$

Not available

71

Tecumseh 35377

Bushing-Crankshaft

Note: Original Tecumseh Part

$11.99

$

In Stock, only 3 left!

0

72

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

80

Tecumseh 37587

Shaft-Governor

Note: Original Tecumseh Part

$

$

Not available

81

Tecumseh 651080

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 8

0

82

Tecumseh 37588

Governor Gear ASM (Includes 81)

Note: Original Tecumseh Part

$9.49

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Spool-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Ring-Retaining

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw (1/4-20x1-3/16)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw (1/4-20x1-11/16)

Note: Original Tecumseh Part

$

$

Not available

89

Tecumseh 32589

Key-Flywheel

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 6

0

90

Tecumseh 611091

Flywheel (W/Ring Gear)

Note: Original Tecumseh Part

$

$

Not available

92

Tecumseh 650880

Washer-Belleville

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

93

Tecumseh 650881

Nut-Flywheel

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135A

Ignition-Solid State (Includes 101)
(Superseded to 35135B)

Note: Original Tecumseh Part

$62.99

$

In Stock, only 1 left!

0

101

Tecumseh 610118

Cover-Spark Plug

Note: Original Tecumseh Part

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 651024

Stud-Mounting, Solid State

Note: Original Tecumseh Part

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35187

Wire-Ground

Note: Original Tecumseh Part

$

$

Not available

110A

Tecumseh 37047

Wire-Ground

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

119

Tecumseh 36448

Gasket-Head, Cylinder

Note: Original Tecumseh Part

$9.99

$

In Stock, only 2 left!

0

119

Tecumseh 36448

Gasket-Head, Cylinder

Note: Included in Gasket Set 36450C

$9.99

$

In Stock, only 2 left!

0

120

Tecumseh 36449

Head-Cylinder

Note: Original Tecumseh Part

$

$

Not available

125

Tecumseh 27878A

Valve-Exhaust (Std.)(Includes 151)

Note: Original Tecumseh Part

$23.99

$

Usually ships in 3-12 days

0

125

Tecumseh 27880A

Valve-Exhaust (1/32 OS) (Includes 151)

Note: Original Tecumseh Part

$

$

Not available

126

Tecumseh 34035

Valve-Intake (Std) (Includes 151)

Note: Original Tecumseh Part

$15.99

$

In Stock, only 1 left!

0

127

Tecumseh 650691

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

130A

Tecumseh 650727

Screw (5/16-18x1-25/32)

Note: Original Tecumseh Part

$3.99

$

In Stock, only 1 left!

0

130C

Tecumseh 651055

Screw (5/16-18x39/64)
(Superseded to 650273)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M) (also available in Packaged Part #740081)

Note: Original Tecumseh Part

$3.49

$

In Stock, Qty 16

0

139

Tecumseh 33369

Bracket-Gear, Governor

Note: Original Tecumseh Part

$8.49

$

In Stock, only 1 left!

0

140

Tecumseh 650836

Screw (10-24x1/2)
(Superseded to 650965)

Note: Original Tecumseh Part

$

$

Not available

149

Tecumseh 27882

Cap-Spring, Valve

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

149A

Tecumseh 35862

Cap-Spring, Valve

Note: Original Tecumseh Part

$9.49

$

Usually ships in 3-12 days

0

150

Tecumseh 27881

Spring-Valve

Note: Original Tecumseh Part

$3.99

$

In Stock, only 2 left!

0

151

Tecumseh 32581

Keeper-Spring, Valve

Note: Original Tecumseh Part

$6.49

$

In Stock, Qty 10

0

169

Tecumseh 27896A

Gasket-Cover, Valve

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 8

0

169

Tecumseh 27896A

Gasket-Cover, Valve

Note: Included in Gasket Set 36450C

$1.49

$

In Stock, Qty 8

0

170

Tecumseh 28423

Body-Breather

Note: Original Tecumseh Part

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Element-Breather

Note: Original Tecumseh Part

$3.99

$

In Stock, only 3 left!

0
