38611 (726 TE) - Toro 26" Power Max Snow Thrower (SN: 240000001 - 240999999) (2004) ENGINE AND FRAME ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

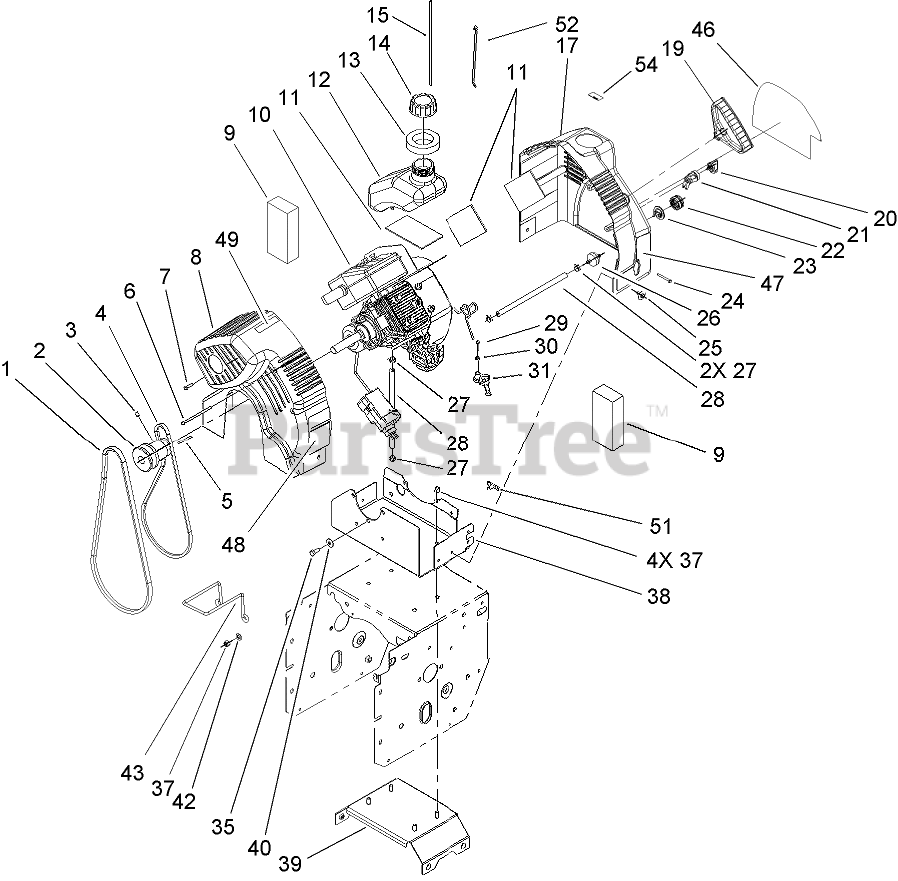

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 106-9193

V BELT-AUGER
(Superseded to 110-6254)

$38.99

$

In Stock, only 1 left!

0

2

Toro 105-8883

PULLEY-ENGINE

$65.99

$

Usually ships in 3-6 days

0

3

Toro 3245-41

SCREW-HSH

$2.99

$

In Stock, Qty 12

0

4

Toro 106-9192

V BELT-TRACTION

$96.99

$

Usually ships in 3-6 days

0

5

Toro 7-0036

KEY-SQUARE

$

$

Not available

6

$

$

Not available

7

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, Qty 5

0

8

Toro 106-9194

COVER-FRONT, STYLING

$

$

Not available

9

$24.99

$

Usually ships in 3-6 days

0

10

Engine-Briggs and Stratton

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

10

Engine-Briggs and Stratton

Note: Not serviced separately

$

$

Not available

11

Toro 98-1386

PAD-FOAM

Note: Not serviced separately

$

$

Not available

12

Toro 106-9199

TANK-FUEL

$

$

Not available

13

Toro 55-9310

SEAL-FOAM

$

$

Not available

14

Toro 104-4133

GAS CAP ASM

$16.99

$

In Stock, Qty 17

0

15

Toro 44-3170

HOSE-PRIMER

$10.99

$

In Stock, only 2 left!

0

17

Toro 106-9152

COVER ASM

$

$

Not available

19

Toro 106-9175

HANDLE-ROPE START

$

$

Not available

20

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 20+

0

21

Toro 40-5940

SWITCH

$15.99

$

In Stock, Qty 18

0

22

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

23

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

24

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

25

Toro 106-9173

SCREW-WASHER HEAD

$9.99

$

Usually ships in 3-6 days

0

26

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

27

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

28

Toro 49-2482

LINE-FUEL

$16.99

$

In Stock, Qty 6

0

29

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 7

0

30

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 104-0878

LEVER-CHOKE

$14.99

$

In Stock, only 4 left!

0

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 105-8897-03

PLATE-MOUNTING, ENGINE

$178.99

$

Usually ships in 3-6 days

0

39

Toro 106-9189

FRAME BRACE ASM

$

$

Not available

40

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Toro 106-9184

GUIDE-BELT

$25.99

$

Usually ships in 3-6 days

0

46

Toro 106-9162

DECAL-PANEL

$

$

Not available

47

Toro 106-9164

DECAL-ELECTRIC STARTER

$

$

Not available

48

Toro 106-9163

DECAL-CHOKE

$

$

Not available

49

Toro 107-4550

DECAL-HOT SURFACE

$

$

Not available

51

Toro 32180-012

CLIP-HARNESS

$

$

Not available

52

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

54

Toro 93-6659

DECAL-FUEL, 2 CYCLE

$8.49

$

In Stock, only 1 left!

0
