38610 (6000) - Toro 26" Power Max Snow Thrower (SN: 270000001 - 270999999) (2007) ENGINE AND FRAME ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

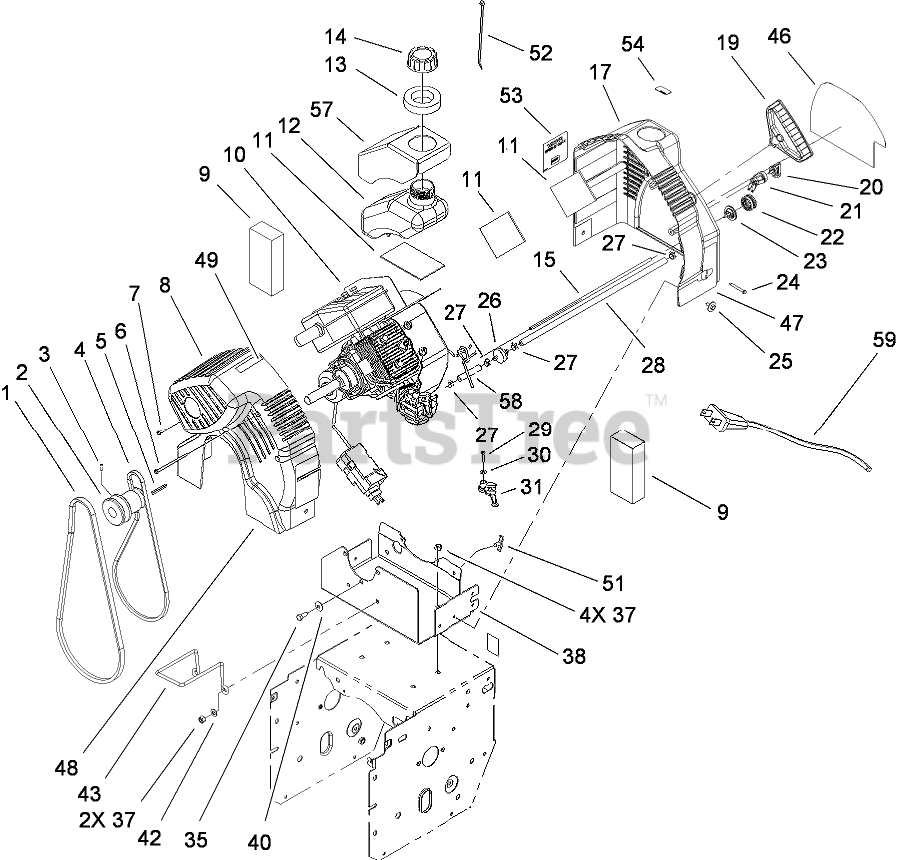

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 110-6254

BELT-V

$38.99

$

In Stock, only 1 left!

0

2

Toro 105-8883

PULLEY-ENGINE

$65.99

$

Usually ships in 3-6 days

0

3

Toro 3245-9

SCREW-SET, HSH

$0.99

$

In Stock, Qty 12

0

4

Toro 106-9192

V BELT-TRACTION

$96.99

$

Usually ships in 3-6 days

0

5

Toro 7-0036

KEY-SQUARE

$

$

Not available

6

Toro 106-9174

SCREW

$

$

Not available

7

Toro 106-9169

SCREW-HWH

$7.99

$

In Stock, only 3 left!

0

8

Toro 106-9194

COVER-FRONT, STYLING

$

$

Not available

9

Toro 106-9178

FOAM

$24.99

$

Usually ships in 3-6 days

0

10

ENGINE-BRIGGS AND STRATTON, 084333-0197-E1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

10

ENGINE-BRIGGS AND STRATTON, 084333-0197-E1

Note: Not serviced separately

$

$

Not available

11

Toro 98-1386

PAD-FOAM

$

$

Not available

12

Toro 106-9199

TANK-FUEL

$

$

Not available

13

Toro 55-9310

SEAL-FOAM

$

$

Not available

14

Toro 104-4133

GAS CAP ASM

$16.99

$

Usually ships in 3-6 days

0

15

Toro 44-3170

HOSE-PRIMER

$10.99

$

Usually ships in 3-6 days

0

17

Toro 106-9152

COVER ASM

$

$

Not available

19

Toro 106-9175

HANDLE-ROPE START

$

$

Not available

20

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

21

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

22

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

23

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

24

Toro 32144-27

SCREW-PLASTITE

$7.49

$

Usually ships in 3-6 days

0

25

Toro 106-9173

SCREW-WASHER HEAD

$9.99

$

Usually ships in 3-6 days

0

26

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

27

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

28

Toro 109-0299

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

29

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

30

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 104-0878

LEVER-CHOKE

$14.99

$

In Stock, only 2 left!

0

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 105-8897-03

PLATE-MOUNTING, ENGINE

$178.99

$

Usually ships in 3-6 days

0

40

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Toro 106-9184

GUIDE-BELT

$25.99

$

Usually ships in 3-6 days

0

46

Toro 106-9158

DECAL-PANEL

$37.99

$

In Stock, only 1 left!

0

47

Toro 106-9160

DECAL-STARTER, ELECTRIC

$17.99

$

In Stock, only 1 left!

0

48

Toro 106-9159

DECAL-CHOKE

$16.99

$

In Stock, only 1 left!

0

49

Toro 104-2767

DECAL-WARNING

$4.49

$

Usually ships in 3-6 days

0

51

Toro 32180-012

CLIP-HARNESS

$

$

Not available

52

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

53

Toro 108-5072

DECAL

$9.99

$

In Stock, only 1 left!

0

54

Toro 93-6659

DECAL-FUEL, 2 CYCLE

$8.49

$

In Stock, only 1 left!

0

57

Toro 107-4579

FOAM-TANK, FUEL

$

$

Not available

58

Toro 109-0304

HOSE-FUEL

$2.49

$

In Stock, Qty 11

0

59

Toro 106-4741

CORD-ELECTRIC

$

$

Not available
