38608 (722 E) - Toro 22" Power Throw Snow Thrower (SN: 312000001 - 312999999) (2012) FRAME AND PULLEY ASSEMBLY Parts Diagram

22" Power Throw Snow Thrower

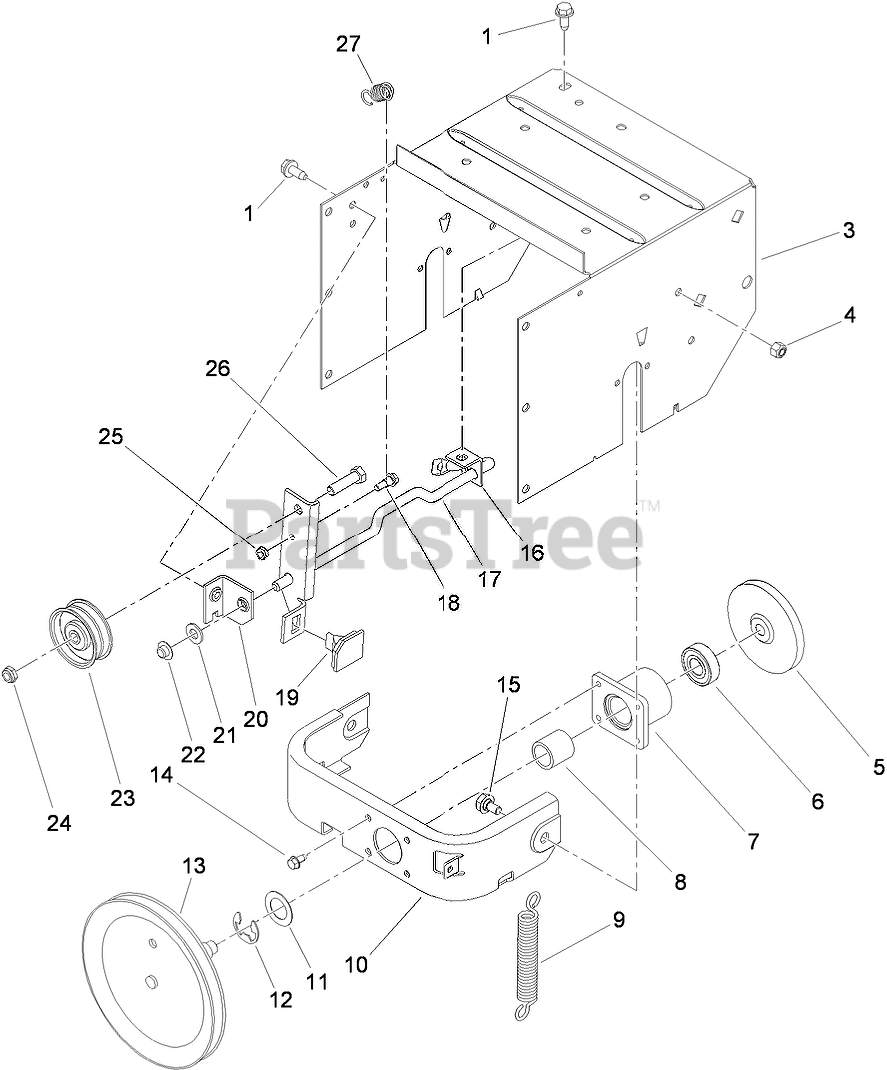

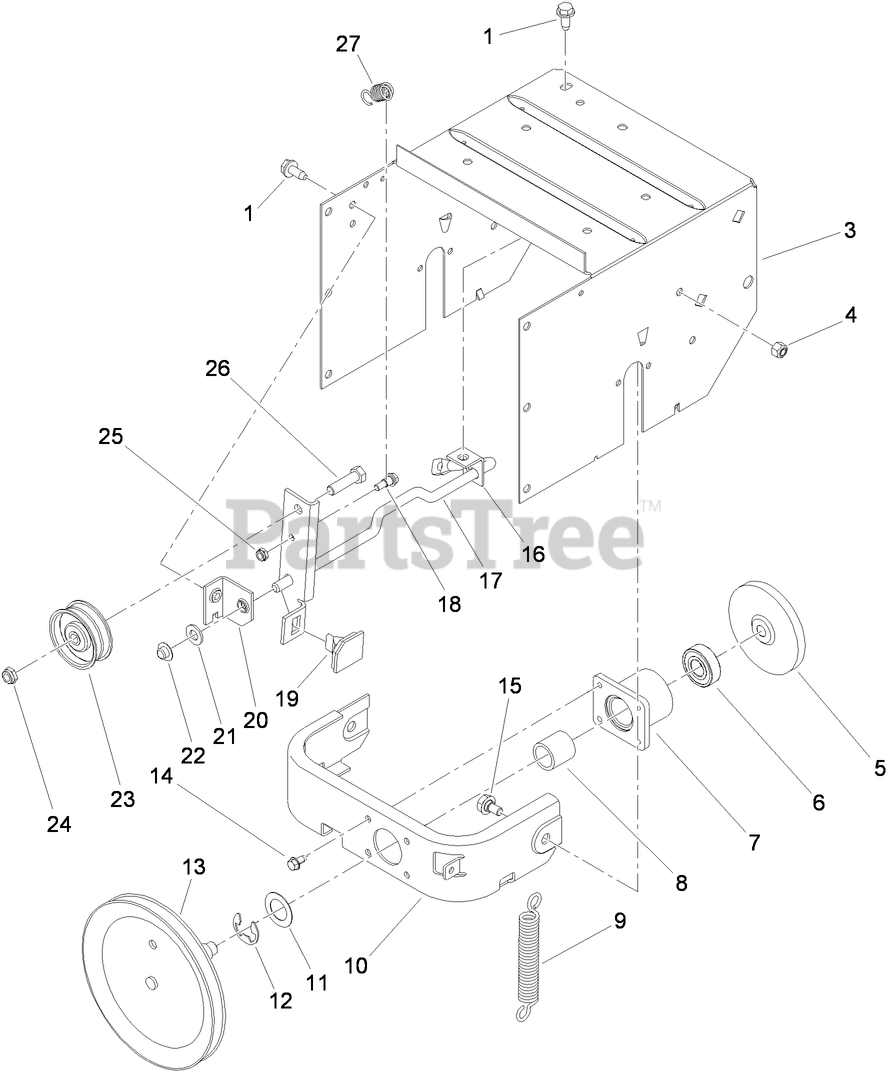

FRAME AND PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

3

Toro 37-8900-01

FRAME-TRACTION

$228.99

$

Usually ships in 3-6 days

0

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 38-0800

PLATE-FRICTION

$106.99

$

In Stock, only 1 left!

0

6

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 17

0

7

Toro 88-0560

HUB-FRAME, TRACTION

$104.99

$

Usually ships in 3-6 days

0

8

Toro 256-322

BUSHING

$16.99

$

In Stock, only 3 left!

0

9

Toro 37-8870

SPRING-PLATE, FRICTION

$46.99

$

Usually ships in 3-6 days

0

10

Toro 88-0550-03

FRAME-FRONT

$

$

Not available

11

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, only 4 left!

0

12

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

13

Toro 88-0850

PULLEY AND DRIVE ASM

$137.99

$

In Stock, only 1 left!

0

14

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

15

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

16

Toro 37-9070

BRACKET-MOUNT, REAR

$15.99

$

Usually ships in 3-6 days

0

17

Toro 40-6511-03

AUGER CLUTCH ROD ASM

$

$

Not available

18

Toro 42-3560

BOLT-SHOULDER

$5.99

$

In Stock, Qty 20+

0

19

Toro 66-8060

PAD-BRAKE

$18.99

$

In Stock, Qty 20+

0

20

Toro 66-6790

BRACKET-MOUNT, FRONT

$8.49

$

Usually ships in 3-6 days

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

22

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

23

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

24

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

25

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

26

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 16

0

27

Toro 53-7570

SPRING

$16.99

$

In Stock, only 1 left!

0
