38607 (622 E) - Toro 22" Power Throw Snow Thrower (SN: 280000001 - 280999999) (2008) ENGINE ASSEMBLY NO. 2 TECUMSEH OH195SA-72563G Parts Diagram

22" Power Throw Snow Thrower

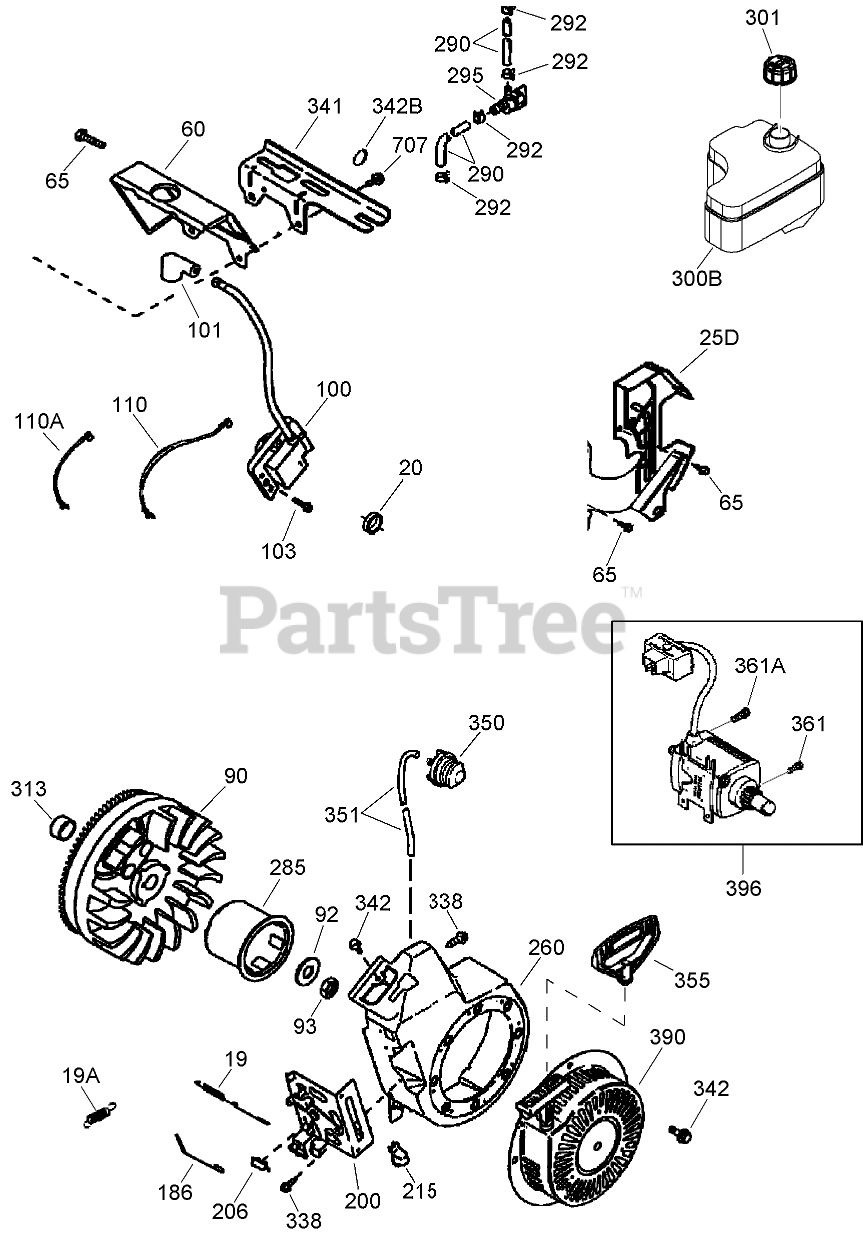

ENGINE ASSEMBLY NO. 2 TECUMSEH OH195SA-72563G Parts Diagram

  • Title

19

Tecumseh 37111

Spring-Throttle

Note: Original Tecumseh Part

$6.99

$

In Stock, only 1 left!

0

19A

Tecumseh 36750

Spring-Governor

Note: Original Tecumseh Part

$5.49

$

Usually ships in 3-12 days

0

20

Tecumseh 32600

Seal-Oil

Note: Original Tecumseh Part

$

$

Not available

25D

Tecumseh 37710

Baffle-Air (1 Piece, Electric Start)

Note: Original Tecumseh Part

$

$

Not available

60

Tecumseh 36623A

Extension-Housing, Blower

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

65

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 10

0

90

Tecumseh 611216

Flywheel (18 Watt, Ring Gear)

Note: Original Tecumseh Part

$

$

Not available

92

Tecumseh 650815

Washer-Belleville

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Nut-Flywheel

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443C

Ignition-State, Solid
(Superseded to 34443D)

Note: Original Tecumseh Part

$44.99

$

In Stock, only 3 left!

0

101

Tecumseh 610118

Cover-Spark Plug

Note: Original Tecumseh Part

$6.49

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 36230

Wire-Ground (Green, 9.0)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

110A

Tecumseh 36874

Wire-Ground (Green, 5.5)

Note: Original Tecumseh Part

$

$

Not available

186

Tecumseh 36711

Link-Governor

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 5

0

200

Tecumseh 36824A

Bracket-Control (Includes 206 and 215)

Note: Original Tecumseh Part

$

$

Not available

206

Tecumseh 610973

Terminal

Note: Original Tecumseh Part

$3.99

$

In Stock, only 4 left!

0

215

Tecumseh 32410

Knob-Control

Note: Original Tecumseh Part

$5.49

$

In Stock, only 4 left!

0

260

Tecumseh 36901

Housing-Blower

Note: Original Tecumseh Part

$34.99

$

Usually ships in 3-12 days

0

285

Tecumseh 35985C

Cup-Starter

Note: Original Tecumseh Part

$13.99

$

Usually ships in 3-12 days

0

290

Tecumseh 37962

Line-Fuel, Low Permeation (8.62)

Note: Original Tecumseh Part

$3.99

$

In Stock, only 1 left!

0

290

Tecumseh 37963

Line-Fuel, Low Permeation (16.0)

Note: Original Tecumseh Part

$6.99

$

In Stock, only 1 left!

0

292

Tecumseh 26460

Clamp-Line, Fuel

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Valve-Shut-Off, Fuel (Includes 292) (also available in Packaged Part 740073)

Note: Original Tecumseh Part

$13.99

$

In Stock, Qty 11

0

300B

Tecumseh 37048

Fuel Tank ASM (Includes 292 and 301) 3.5 Quart

Note: Original Tecumseh Part

$44.99

$

In Stock, only 1 left!

0

301

Tecumseh 37845

Cap-Fuel (Red Plastic) (1-1/2 ID)

Note: Original Tecumseh Part

$8.99

$

In Stock, Qty 6

0

313

Tecumseh 34080

Spacer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

338

Tecumseh 650821

Screw (10-32 x 1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

341

Tecumseh 36644A

Bracket-Tank, Fuel

Note: Original Tecumseh Part

$12.99

$

Usually ships in 3-12 days

0

342

Tecumseh 651008

Screw (1/4-20 x 31/64)

Note: Original Tecumseh Part

$0.99

$

Usually ships in 3-12 days

0

342B

Tecumseh 651086

Washer-Rubber

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

350

Tecumseh 570682A

Primer ASM (also available in packaged Part 740101)

Note: Original Tecumseh Part

$10.99

$

In Stock, Qty 7

0

351

Tecumseh 32180C

Line-Primer

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 9

0

355

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Original Tecumseh Part

$5.49

$

In Stock, only 1 left!

0

361

Tecumseh 650990

Screw (T-30, 1/4-20x15/32)

Note: Original Tecumseh Part

$3.99

$

In Stock, only 2 left!

0

361A

Tecumseh 650819

Screw

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

390

Tecumseh 590749

Starter-Rewind
(Superseded to 590789)

Note: Original Tecumseh Part

$87.99

$

Usually ships in 3-12 days

0

396

Tecumseh 37217

Electric Starter Motor 220 Volt

Note: Original Tecumseh Part

$

$

Not available

707

Tecumseh 651085

Screw (1/4-20 x 19/32)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 1 left!

0
