38607 (622 E) - Toro 22" Power Throw Snow Thrower (SN: 270000001 - 270999999) (2007) DRIVE ASSEMBLY Parts Diagram

22" Power Throw Snow Thrower

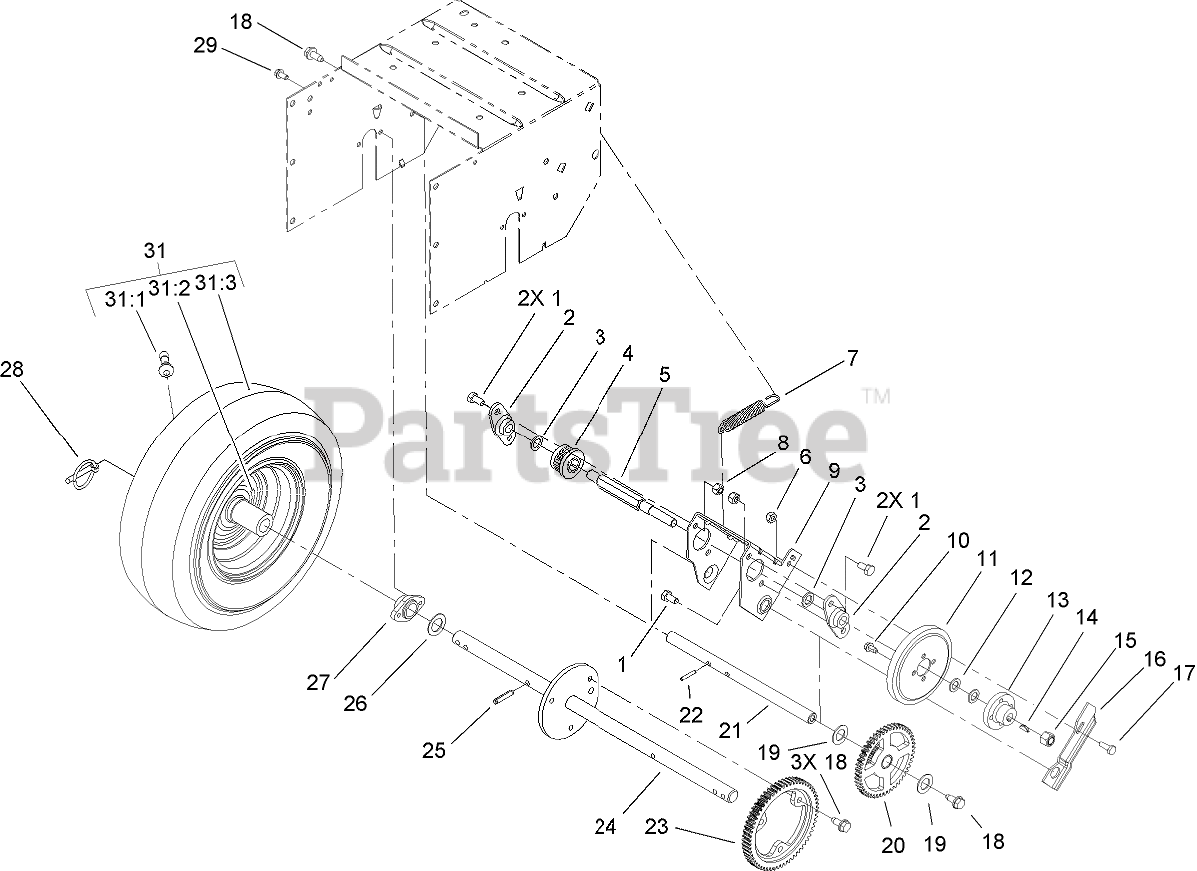

DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

2

Toro 20-1620

BEARING-WHEEL, FRICTION
(Superseded to 138-3142)

$39.99

$

Usually ships in 3-6 days

0

3

Toro 5-7570

WASHER-FLAT

$8.49

$

Usually ships in 3-6 days

0

4

Toro 37-6500

PINION

$

$

Not available

5

Toro 37-6780

SHAFT-WHEEL, FRICTION

$133.99

$

Usually ships in 3-6 days

0

6

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

7

Toro 37-8880

SPRING-TRACTION

$18.99

$

Usually ships in 3-6 days

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 39-1230

BRACKET-SLIDING

$

$

Not available

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 37-6570

WHEEL-FRICTION

$43.99

$

In Stock, Qty 6

0

12

Toro 36-4790

WASHER-THRUST

$3.49

$

Usually ships in 3-6 days

0

13

Toro 39-1520

HUB-WHEEL, FRICTION

$77.99

$

Usually ships in 3-6 days

0

14

Toro 3257-24

KEY-WOODRUFF

$5.49

$

Usually ships in 3-6 days

0

15

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

16

Toro 39-1250

CAM-RECEIVER

$24.99

$

Usually ships in 3-6 days

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 10-9280

WASHER-SPECIAL

$4.49

$

Usually ships in 3-6 days

0

20

Toro 37-9160

INTERNAL GEAR AND BUSHING ASM

$259.99

$

Usually ships in 3-6 days

0

21

Toro 37-6760

SHAFT-PIVOT

$108.99

$

Usually ships in 3-6 days

0

22

Toro 32121-45

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0

23

Toro 37-6520

GEAR-AXLE

$177.99

$

Usually ships in 3-6 days

0

24

Toro 74-1350

SHAFT-AXLE

$

$

Not available

25

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 8

0

26

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

27

Toro 37-6850

BEARING-AXLE

$32.99

$

Usually ships in 3-6 days

0

28

Toro 3290-243

PIN-LYNCH
(Superseded to 107-3039)

$10.99

$

In Stock, only 1 left!

0

29

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

30:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

Note: Not illustrated

$6.99

$

In Stock, Qty 14

0

30:2

Toro 241-131

RIM-WHEEL

Note: Not illustrated

$253.99

$

In Stock, only 2 left!

0

30:3

Toro 112-6609

TIRE

Note: Not illustrated

$

$

Not available

30

LH WHEEL AND TIRE ASM

Note: Not illustrated

$

$

Not available

31

RH WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

31:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

31:2

Toro 241-131

RIM-WHEEL

$253.99

$

In Stock, only 2 left!

0

31:3

$

$

Not available
