38605 (522) - Toro 22" Power Throw Snow Thrower (SN: 280000001 - 280999999) (2008) ENGINE ASSEMBLY NO. 1 TECUMSEH LH195SA - 67435V Parts Diagram

22" Power Throw Snow Thrower

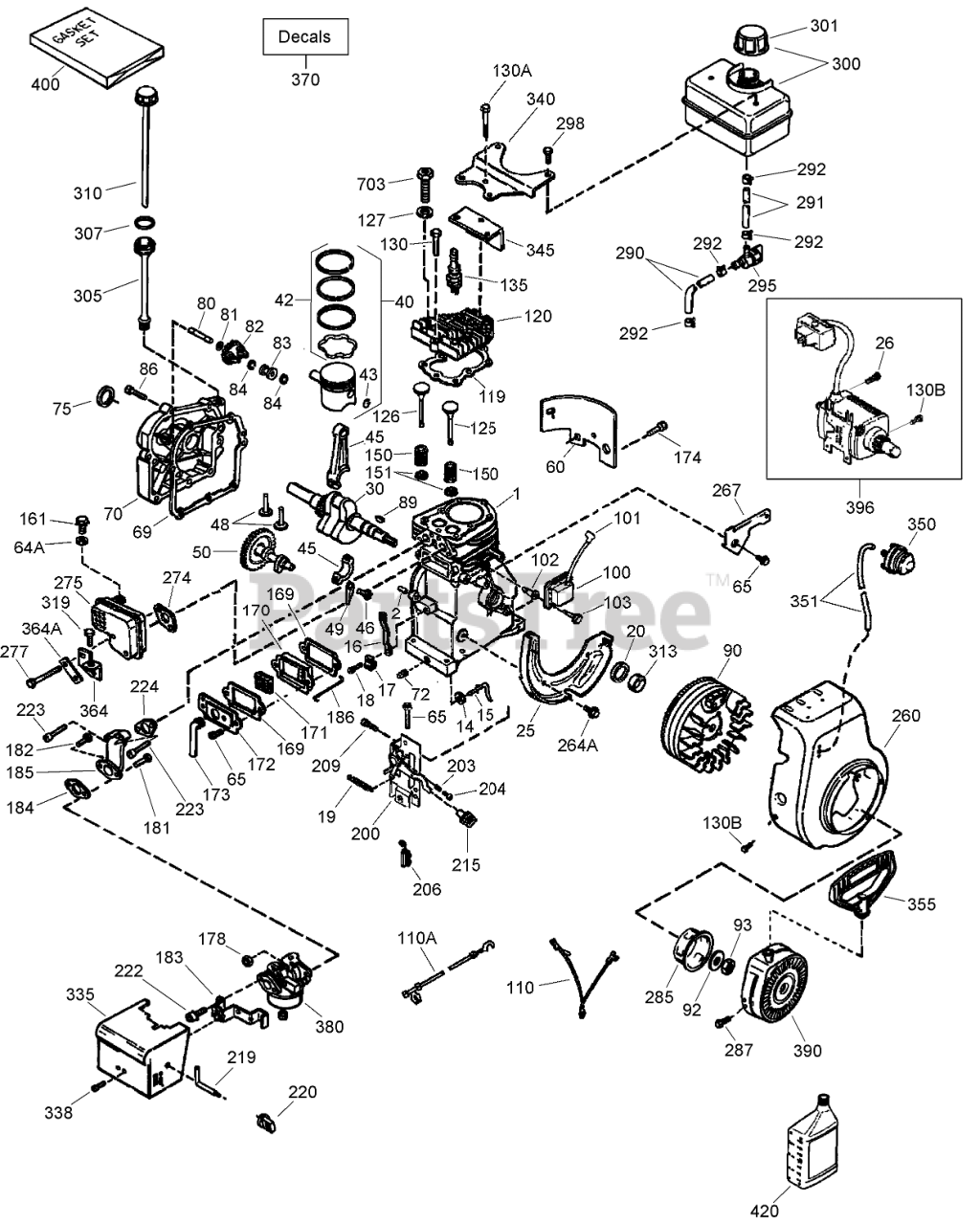

ENGINE ASSEMBLY NO. 1 TECUMSEH LH195SA - 67435V Parts Diagram

  • Title

1

Tecumseh 36469A

Cylinder ASM (Includes 2, 20, 72, 125)

Note: Original Tecumseh Part

$

$

Not available

2

Tecumseh 26727

Pin-Dowel

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

14

Tecumseh 28277

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

15

Tecumseh 31334

Rod-Governor

Note: Original Tecumseh Part

$5.49

$

In Stock, only 1 left!

0

16

Tecumseh 37729

Chute Idler Arm ASM (w/Bushings)

Note: Original Tecumseh Part

$8.49

$

In Stock, only 1 left!

0

17

Tecumseh 31335

Clamp-Lever, Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

18

Tecumseh 651018

Screw (T-15, 8-32 x 19/64)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 9

0

19

Tecumseh 31426

Spring-Extension

Note: Original Tecumseh Part

$3.99

$

In Stock, Qty 20+

0

20

Tecumseh 32600

Seal-Oil

Note: Original Tecumseh Part

$

$

Not available

25

Tecumseh 36552

Baffle-Blower Housing (Includes 262)

Note: Original Tecumseh Part

$9.49

$

Usually ships in 3-12 days

0

26

Tecumseh 650561

Screw (1/4-20x19/32)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

30

Tecumseh 34740

Crankshaft ASM

Note: Original Tecumseh Part

$137.99

$

Usually ships in 3-12 days

0

40

Tecumseh 40004

Piston, Pin and Ring Set (STD) (Includes 41, 42, 43)

Note: Original Tecumseh Part

$74.99

$

In Stock, only 1 left!

0

40

Tecumseh 36075

Piston, Pin and Ring Set (.020 O S)

Note: Original Tecumseh Part

$

$

Not available

40

Tecumseh 40005

Piston, Pin and Ring Set (.010 O S) (Includes 41, 42, 43)
(Superseded to 40045)

Note: Original Tecumseh Part

$

$

Not available

42

Tecumseh 36077

Ring Set (.010 O S)
(Superseded to 40045)

Note: Original Tecumseh Part

$

$

Not available

42

Tecumseh 36076

Ring Set (STD)
(Superseded to 40006)

Note: Original Tecumseh Part

$42.99

$

In Stock, only 1 left!

0

42

Tecumseh 40006

Ring Set (STD)

Note: Original Tecumseh Part

$42.99

$

In Stock, only 1 left!

0

42

Tecumseh 36078

Ring Set (.020 O S)

Note: Original Tecumseh Part

$

$

Not available

43

Tecumseh 20381

Ring-Retaining, Piston Pin

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

45

Tecumseh 32875A

Connecting Rod ASM (Includes 46, 49)

Note: Original Tecumseh Part

$47.99

$

In Stock, only 1 left!

0

46

Tecumseh 32610A

Bolt-Rod, Connecting

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

48

Tecumseh 27241

Lifter-Valve

Note: Original Tecumseh Part

$5.49

$

In Stock, only 2 left!

0

49

Tecumseh 32654

Dipper-Oil

Note: Original Tecumseh Part

$8.99

$

In Stock, only 4 left!

0

50

Tecumseh 33158

Camshaft
(Superseded to 37040)

Note: Original Tecumseh Part

$30.99

$

In Stock, only 1 left!

0

60

Tecumseh 29745

Extension-Blower

Note: Original Tecumseh Part

$3.99

$

Usually ships in 3-12 days

0

64A

Tecumseh 8345

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

65

Tecumseh 30200

Screw (10-24 x 9/16)

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 10

0

69

Tecumseh 27677A

Gasket-Cover, Cylinder

Note: Original Tecumseh Part

$7.49

$

In Stock, Qty 7

0

69

Tecumseh 27677A

Gasket-Cover, Cylinder

Note: Included in Gasket Set 36444

$7.49

$

In Stock, Qty 7

0

70

Tecumseh 34674C

Cover-Cylinder (Includes 75 - 80)

Note: Original Tecumseh Part

$

$

Not available

72

Tecumseh 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

75

Tecumseh 27897

Seal-Oil

Note: Original Tecumseh Part

$8.49

$

In Stock, Qty 17

0

80

Tecumseh 30574A

Shaft-Governor

Note: Original Tecumseh Part

$7.49

$

In Stock, only 4 left!

0

81

Tecumseh 30590A

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 7

0

82

Tecumseh 30591

Governor Gear ASM (Includes 81)

Note: Original Tecumseh Part

$13.99

$

In Stock, only 1 left!

0

83

Tecumseh 30588A

Spool-Governor

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

84

Tecumseh 29193

Ring-Retaining

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650488

Screw (1/4-20 x 1-1/4)

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

89

Tecumseh 610961

Key-Flywheel

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 20+

0

90

Tecumseh 611199

Flywheel (w/Ring Gear)

Note: Original Tecumseh Part

$

$

Not available

92

Tecumseh 650815

Washer-Belleville

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 10

0

93

Tecumseh 650816

Nut-Flywheel

Note: Original Tecumseh Part

$4.49

$

In Stock, Qty 6

0

100

Tecumseh 34443C

Ignition-State, Solid
(Superseded to 34443D)

Note: Original Tecumseh Part

$44.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Cover-Spark Plug

Note: Original Tecumseh Part

$6.49

$

In Stock, only 3 left!

0

102

Tecumseh 651024

Stud-Mounting, Solid State

Note: Original Tecumseh Part

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35182

Wire-Ground

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

110A

Tecumseh 36874

Wire-Ground (Green, 5.5)

Note: Original Tecumseh Part

$

$

Not available

119

Tecumseh 36443

Gasket-Head, Cylinder

Note: Original Tecumseh Part

$5.99

$

In Stock, Qty 9

0

119

Tecumseh 36443

Gasket-Head, Cylinder

Note: Included in Gasket Set 36444

$5.99

$

In Stock, Qty 9

0

120

Tecumseh 37675

Head-Cylinder (Includes 130A)

Note: Original Tecumseh Part

$41.99

$

In Stock, only 1 left!

0

125

Tecumseh 36471

Valve-Exhaust (STD) (Includes 151)

Note: Original Tecumseh Part

$13.99

$

In Stock, only 1 left!

0

125

Tecumseh 36472

Valve-Exhaust (1/32 O S) (Includes 151)

Note: Original Tecumseh Part

$

$

Not available

126

Tecumseh 32644A

Valve-Intake (STD) (Includes 151)

Note: Original Tecumseh Part

$9.99

$

In Stock, only 1 left!

0

126

Tecumseh 32645A

Valve-Intake (1/32 O S) (Includes 151)

Note: Original Tecumseh Part

$61.99

$

In Stock, only 2 left!

0

127

Tecumseh 650691

Washer-Flat

Note: Original Tecumseh Part

$1.99

$

Usually ships in 3-12 days

0

130

Tecumseh 6021A

Screw (5/16-18x1-1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

130A

Tecumseh 650694A

Screw (5/16-18 X 2)

Note: Original Tecumseh Part

$3.49

$

In Stock, Qty 20+

0

130B

Tecumseh 650737

Screw (1/4-20 x 1/2)

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 6

0

135

Tecumseh 35395

Spark Plug-Resistor (R J19 L M)

Note: Original Tecumseh Part

$3.49

$

In Stock, Qty 16

0

150

Tecumseh 31672

Spring-Valve

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 14

0

151

Tecumseh 31673

Cap-Valve, Spring

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

161

Tecumseh 30063

Screw

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 20+

0

169

Tecumseh 27234A

Gasket-Cover, Valve

Note: Original Tecumseh Part

$5.99

$

In Stock, only 2 left!

0

169

Tecumseh 27234A

Gasket-Cover, Valve

Note: Included in Gasket Set 36444

$5.99

$

In Stock, only 2 left!

0
