38605 (522) - Toro 22" Power Throw Snow Thrower (SN: 270000001 - 270004504) (2007) HANDLE AND CONTROL ASSEMBLY Parts Diagram

22" Power Throw Snow Thrower

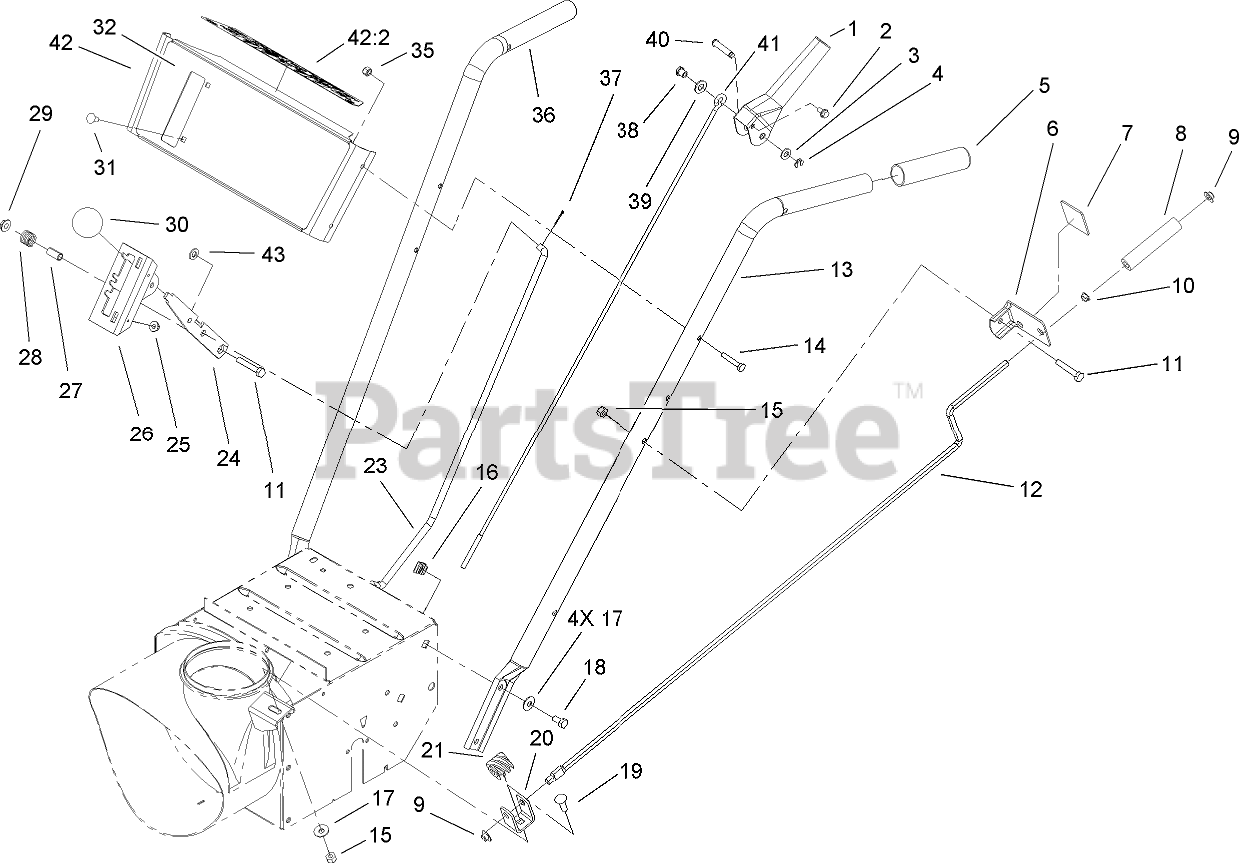

HANDLE AND CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 94-8887-03

HANDLE-CONTROL

$

$

Not available

2

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 32151-73

RING-CLIP

$2.99

$

In Stock, Qty 6

0

5

Toro 112-6615

GRIP-HANDLE

$16.99

$

Usually ships in 3-6 days

0

6

Toro 25-6090

BRACKET-ROD, CHUTE
(Superseded to 12-7739)

$

$

Not available

7

Toro 63-3510

DECAL-CHUTE DIRECTION

$5.99

$

Usually ships in 3-6 days

0

8

Toro 40-8230

GRIP-CONTROL, CHUTE

$16.99

$

Usually ships in 3-6 days

0

9

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

10

Toro 256-249

Bushing
(Superseded to 5979)

$3.49

$

In Stock, Qty 9

0

11

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

12

Toro 40-8270

ROD-CONTROL, CHUTE

$161.99

$

Usually ships in 3-6 days

0

13

Toro 110-6296-03

HANDLE-LEFT

$80.99

$

Usually ships in 3-6 days

0

14

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

$9.99

$

Usually ships in 3-6 days

0

17

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

18

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

19

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

20

Toro 40-8280

BRACKET-WORM

$18.99

$

In Stock, only 1 left!

0

21

Toro 40-8250

GEAR-WORM, CHUTE

$15.99

$

Usually ships in 3-6 days

0

23

Toro 39-7570

ROD-SELECTOR, SPEED

$41.99

$

Usually ships in 3-6 days

0

24

Toro 37-8820-03

Selector-Speed

$

$

Not available

25

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

26

Toro 39-1280-03

MOUNT-SELECTOR, SPEED

$

$

Not available

27

Toro 40-8130

SPACER

$10.99

$

In Stock, only 1 left!

0

28

Toro 37-9150

SPRING

$10.99

$

In Stock, only 1 left!

0

29

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

30

$13.99

$

Usually ships in 3-6 days

0

31

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

32

Toro 112-6636

DECAL-ESCUTCHEON

$

$

Not available

35

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

36

Toro 52-5561-03

HANDLE-RIGHT

$

$

Not available

37

Toro 3272-4

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

38

Toro 47-4990

POST-MOUNTING, LINKAGE

$27.99

$

Usually ships in 3-6 days

0

39

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

40

Toro 52-5600

PIN-LEVER, CONTROL

$28.99

$

Usually ships in 3-6 days

0

41

Toro 52-5590

LINK-UPPER

$23.99

$

Usually ships in 3-6 days

0

42

Toro 112-6642

ESCUTCHEON PANEL ASM

$

$

Not available

42:2

Toro 112-6621

DECAL-ESCUTCHEON BACK

$

$

Not available

43

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
