38604 (8163-B) - Gravely Lawn Tractor, 16hp, With Hydraulic Lift FUEL AND EXHAUST SYSTEM Parts Diagram

Lawn Tractor, 16hp, With Hydraulic Lift

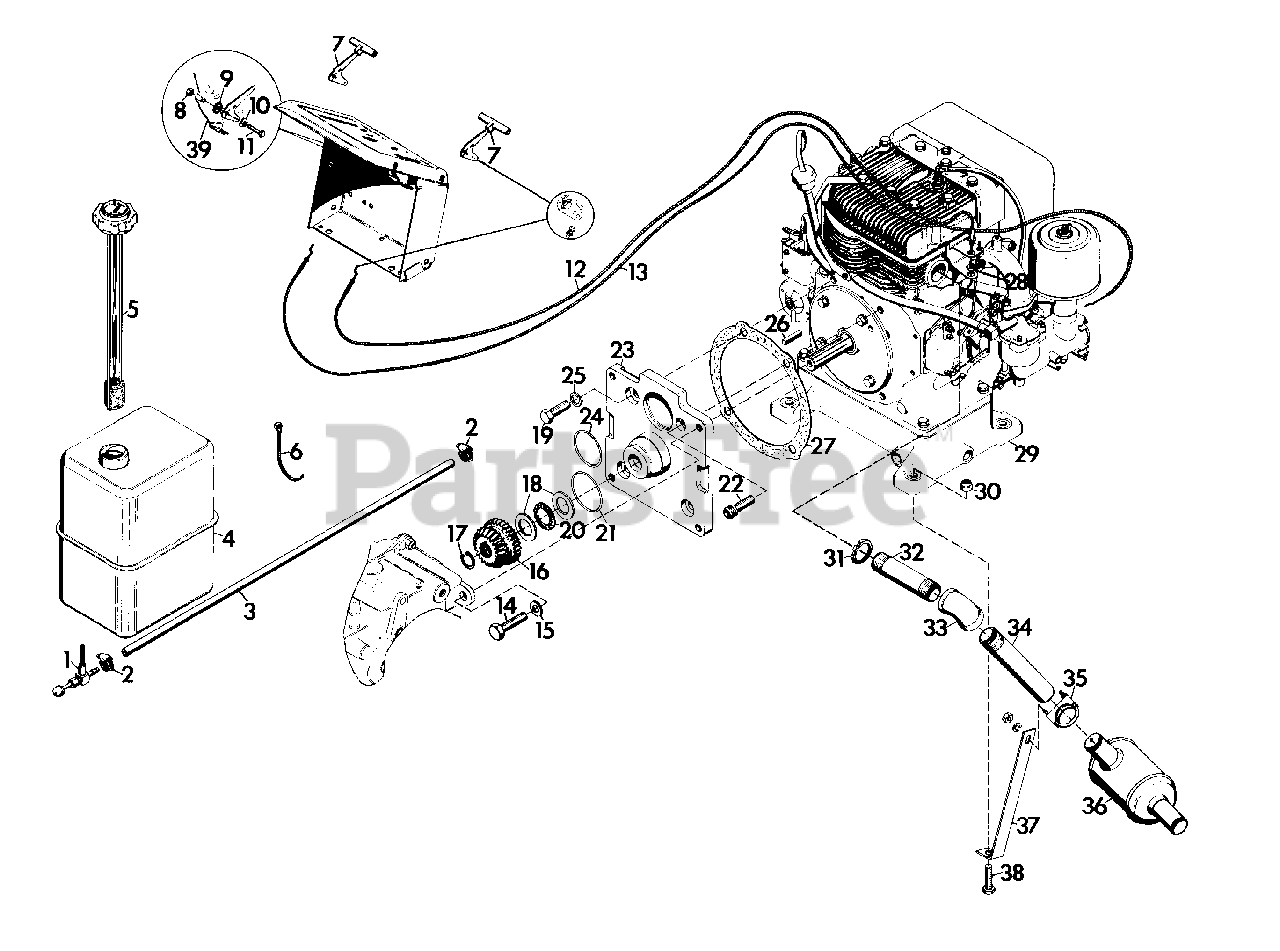

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 018563

VALVE, FUEL 90 DEG. REVERSE FLOW
(Superseded to 08707900)

$

$

Not available

2

Gravely 032045

CLAMP, HOSE
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 012383

TANK, FUEL
(Superseded to 58700500)

$

$

Not available

5

Gravely 021415

GAUGE, GAS
(Superseded to 08723700)

$

$

Not available

6

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

7

Gravely 011773

ASSEMBLY, KNOB AND LEVER
(Superseded to 06917100)

$

$

Not available

8

Gravely 416430

NUT, LOCK 1/4-28
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

9

Gravely 011772

WASHER, FRICTION
(Superseded to 06431500)

$13.99

$

Usually ships in 4-12 days

0

10

Gravely 011774

WASHER, SPRING
(Superseded to 03493400)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 181566

BOLT, HEX 1/4-28X.75
(Superseded to 05952300)

$1.99

$

Usually ships in 4-12 days

0

12

Gravely 020565

ASSEMBLY, CHOKE CONDUIT
(Superseded to 06921400)

$39.99

$

Usually ships in 4-12 days

0

13

Gravely 020942

ASSEMBLY, THROTTLE CONDUIT
(Superseded to 06921800)

$

$

Not available

14

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

15

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

16

Gravely 018343

GEAR, SPUR AND BEVEL, INPUT
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

17

Gravely 018344

RING, RETAINING 1.125 SHAFT
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

18

Gravely 018342

RACE, BEARING THRUST 1.127X1.740X.060
(Superseded to 20256200)

$16.99

$

In Stock, only 2 left!

0

19

Gravely 180146

BOLT, HEX 7/16-14X1.125
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 018341

BEARING, THRUST 1.127X1.740X.078
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

21

Gravely 018346

O-RING, 3.000X3.188X.094
(Superseded to 05614900)

$3.49

$

In Stock, Qty 11

0

22

Gravely 421648

SCREW, CAP 7/16-14X1.0 SOCKET HEAD
(Superseded to 05933000)

$

$

Not available

23

Gravely 020555

ADAPTOR, ENGINE
(Superseded to 21256100)

$

$

Not available

24

Gravely 018347

O-RING, 2.500X2.750X.125
(Superseded to 20256400)

$5.99

$

In Stock, Qty 11

0

25

Gravely 131100

WASHER, LOCK 7/16 SP HEAVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 018345

KEY, SQUARE .250X1.250
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 018340

GASKET, ADAPTOR
(Superseded to 08900100)

$8.99

$

In Stock, Qty 9

0

28

Gravely 020941

NUT, PLASTIC CONDUIT
(Superseded to 06921700)

$

$

Not available

29

Gravely 020559

ENGINE, 16 HP B&S

$

$

Not available

30

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

31

Gravely 010866

NUT, CONDUIT 1" PIPE

$

$

Not available

32

Gravely 020579

NIPPLE, PIPE 1X6
(Superseded to 20304400)

$9.49

$

Usually ships in 4-12 days

0

33

Gravely 127793

PIPE, 1 IN. ELBOW
(Superseded to 07024400)

$

$

Not available

34

Gravely 020580

NIPPLE, PIPE 1"X8.4" SPECIAL
(Superseded to 20304500)

$

$

Not available

35

Gravely 014728

CLAMP, MUFFLER
(Superseded to 06920900)

$6.99

$

In Stock, only 1 left!

0

36

Gravely 018543

MUFFLER, EXHAUST
(Superseded to 20259700)

$59.99

$

In Stock, only 1 left!

0

37

Gravely 020581

SUPPORT, EXHAUST
(Superseded to 21131700)

$

$

Not available

38

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 011770

BRACKET, MOUNTING
(Superseded to 03493300)

$

$

Not available

NS

Gravely 411893

NUT, LOCK 10-32
(Superseded to 06539200)

$1.99

$

Usually ships in 4-12 days

0

NS

Gravely 160046

SCREW, MACHINE 10-32X.50 PHD
(Superseded to 06113300)

$2.49

$

Usually ships in 4-12 days

0
