38603 - Toro 24" Snow Commander Snow Thrower (SN: 250000001 - 250999999) (2005) CHUTE ASSEMBLY Parts Diagram

24" Snow Commander Snow Thrower

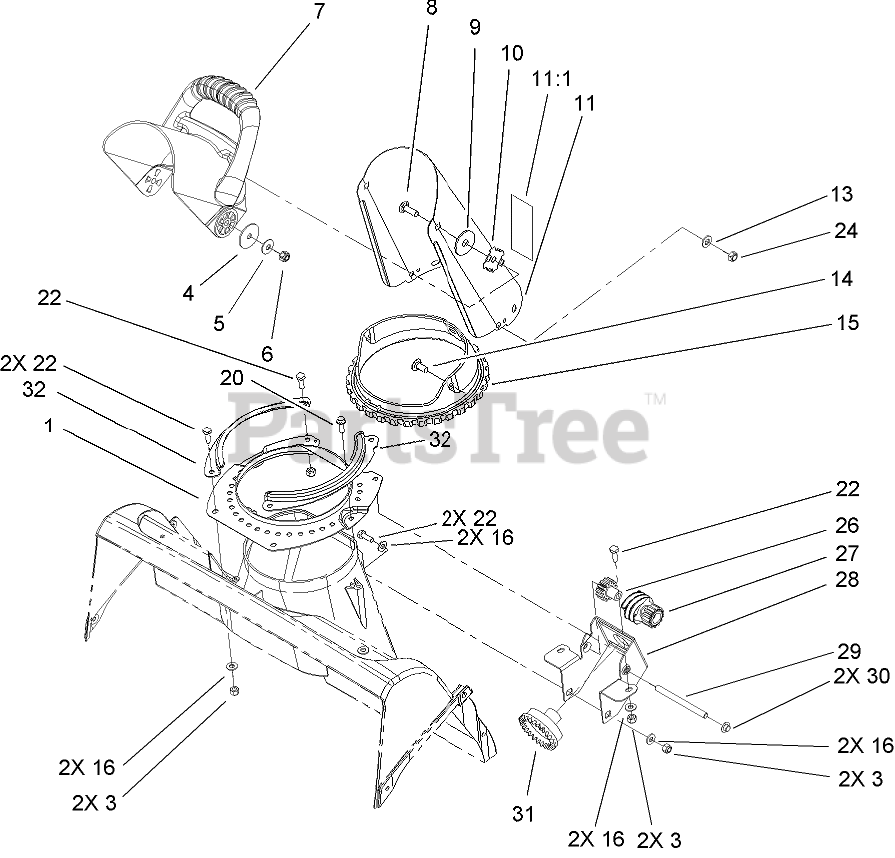

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 55-8921-03

RING-SUPPORT, CHUTE

$28.99

$

In Stock, Qty 9

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

4

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

5

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 104-0882

CHUTE-DEFLECTOR

$

$

Not available

8

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

9

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

10

Toro 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

11

Toro 94-2791

CHUTE ASM

$

$

Not available

11:1

Toro 94-2901

DECAL-DANGER

$

$

Not available

13

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 14

0

14

Toro 100-5486

SCREW-TRUSS HD, PHILLIPS

$2.49

$

Usually ships in 3-6 days

0

15

Toro 55-8720

RING-GEAR, CHUTE

$

$

Not available

16

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

22

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

26

Toro 55-8750

GEAR-SPUR, SPACER

$18.99

$

In Stock, only 1 left!

0

27

Toro 105-3512

GEAR-SPUR/WORM

$40.99

$

In Stock, only 1 left!

0

28

Toro 104-8660-03

BRACKET-CHUTE GEARS

$

$

Not available

29

Toro 55-9150

SHAFT-GEAR, WORM

$25.99

$

In Stock, only 1 left!

0

30

Toro 32112-11

NUT-PUSH

$1.49

$

In Stock, only 3 left!

0

31

Toro 55-8740

GEAR-FACE

$

$

Not available

32

Toro 55-8910-03

RING-RETAINER, CHUTE

$21.99

$

In Stock, Qty 5

0
