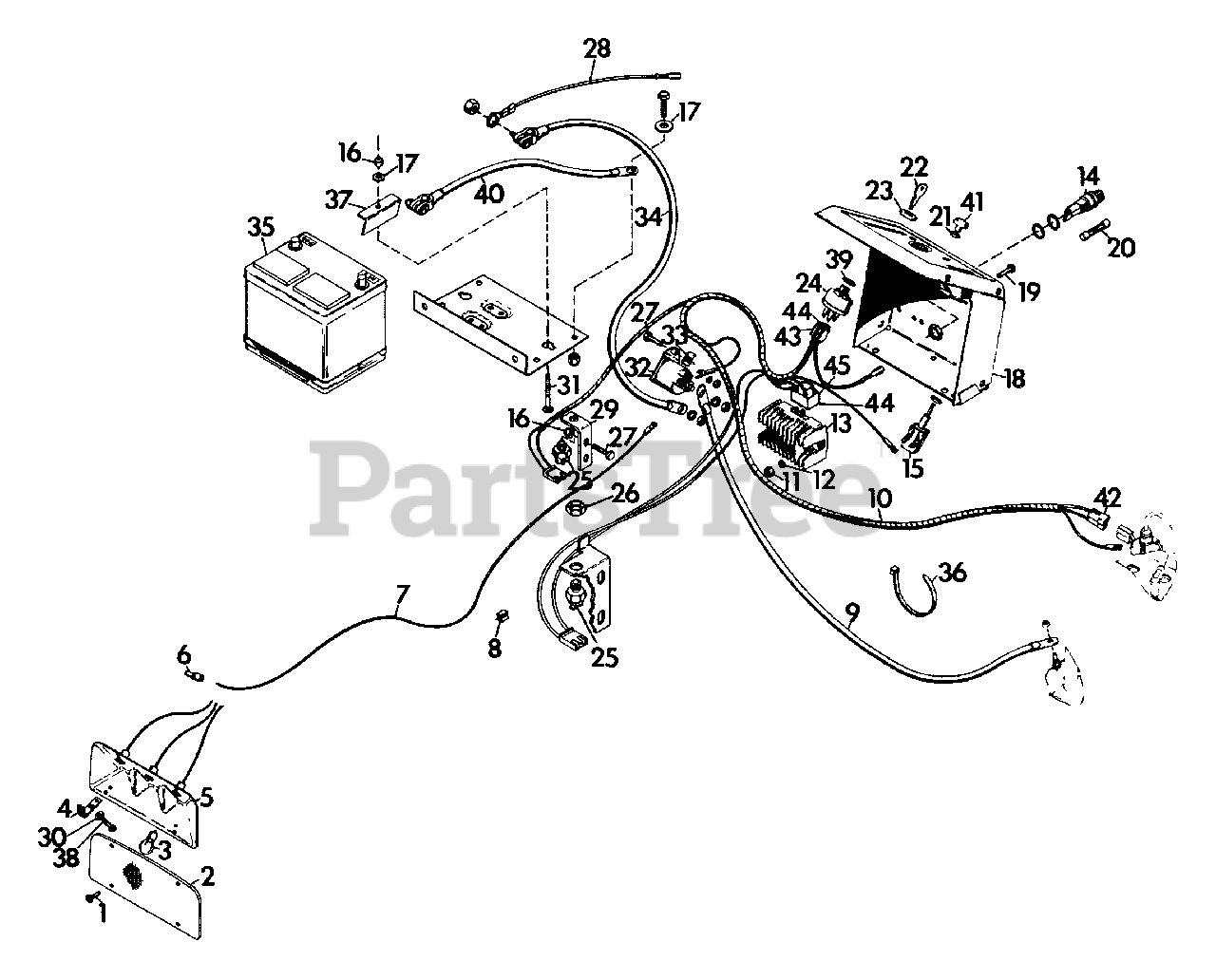

38603 (8123) - Gravely Lawn Tractor, 12hp, With Hydraulic Lift ELECTRICAL SYSTEM Parts Diagram

Lawn Tractor, 12hp, With Hydraulic Lift

ELECTRICAL SYSTEM Parts Diagram

  • Title
1

Gravely 159920

SCREW, MACH. 10-24X.50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

2

Gravely 011289

PANEL, FRONT LIGHT
(Superseded to 20070600)

$108.99

$

Usually ships in 4-12 days

0

3

Gravely 454646

LAMP, NO. 1073
(Superseded to 21072400)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 011030

CLIP, LIGHT MTG.
(Superseded to 20063500)

$

$

Not available

5

Gravely 011334

ASSEMBLY, LAMP REFLECTOR
(Superseded to 20072600)

$

$

Not available

6

Gravely 011763

NUT, WIRE
(Superseded to 07016700)

$

$

Not available

7

Gravely 019534

WIRE, HEADLIGHT
(Superseded to 20281200)

$

$

Not available

8

Gravely 011286

CLIP, WIRE
(Superseded to 20070500)

$

$

Not available

9

Gravely 011031

CABLE, STARTER
(Superseded to 20063600)

$

$

Not available

10

Gravely 034812

HARNESS, WIRING 12 HP KOHLER
(Superseded to 20611000)

$

$

Not available

11

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

12

Gravely 120380

WASHER, LOCK 1/4 REG.
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 018009

REGULATOR, RECTIFIER
(Superseded to 08505600)

$143.99

$

Usually ships in 4-12 days

0

14

Gravely 021416

FUSE, PANEL
(Superseded to 08902600)

$35.99

$

Usually ships in 4-12 days

0

15

Gravely 011337

SWITCH, LIGHT
(Superseded to 03490700)

$

$

Not available

16

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 024448

PANEL, INSTRUMENT
(Superseded to 58702200)

$

$

Not available

19

Gravely 160541

SCREW, MACHINE 1/4-20 PAN HD
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

20

Gravely 014893

FUSE, 30 AMP AGC 30
(Superseded to 20176100)

$

$

Not available

21

Gravely 018587

NUT, SPECIAL LIGHT SWITCH
(Superseded to 06520800)

$

$

Not available

22

Gravely 018570

KEY, IGNITION SWITCH
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

23

Gravely 019666

NUT, JAM 9/16-24
(Superseded to 20287700)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 019223

SWITCH, IGNITION
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

25

Gravely 020916

SWITCH, INTERLOCK
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

26

Gravely 107354

NUT, STAMPED 9/16-18
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

28

Gravely 021425

WIRE, INSTRUMENT PANEL
(Superseded to 08801600)

$

$

Not available

29

Gravely 020660

BRACKET, SWITCH
(Superseded to 08720300)

$

$

Not available

30

Gravely 120385

WASHER, FLAT .188X.562X.049
(Superseded to 06409200)

$

$

Not available

31

Gravely 126342

BOLT, 1/4-20X1.75 RD HD SQ NK
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

32

Gravely 007277

SWITCH, MAGNETIC
(Superseded to 20031900)

$51.99

$

In Stock, only 1 left!

0

33

Gravely 011676

NUT, SPEED 1/4-20
(Superseded to 07016800)

$

$

Not available

34

Gravely 012375

CABLE, BATTERY TO MAGNETIC SWITCH
(Superseded to 20095200)

$

$

Not available

35

Gravely 037764

BATTERY, 12 VOLT

$

$

Not available

36

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

37

Gravely 037742

CLAMP
(Superseded to 08539500)

$22.99

$

In Stock, only 1 left!

0

38

Gravely 159947

SCREW, MACH. 10-24X.75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 019667

WASHER, LOCK 9/16 INT. TOOTH
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

40

Gravely 006980

CABLE, NEGATIVE BATTERY
(Superseded to 21327300)

$17.99

$

Usually ships in 4-12 days

0

41

Gravely 038186

KNOB, LIGHT SWITCH
(Superseded to 07516400)

$

$

Not available

42

Gravely 038057

CONNECTOR
(Superseded to 20645000)

$

$

Not available

43

Gravely 038058

CONNECTOR
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

44

Gravely 038059

TERMINAL
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

45

Gravely 038800

CONNECTOR
(Superseded to 20652300)

$15.99

$

Usually ships in 4-12 days

0

NS

Gravely 033847

BOOT, BATTERY CABLE
(Superseded to 03384700)

$

$

Not available

NS

Gravely 121753

WASHER, LCOK 1/4 EXT. TOOTH TYPE A
(Superseded to 21051100)

$

$

Not available
