38602x70J - Murray 38" Lawn Tractor (1996) Engine Mount Parts Diagram

38" Lawn Tractor

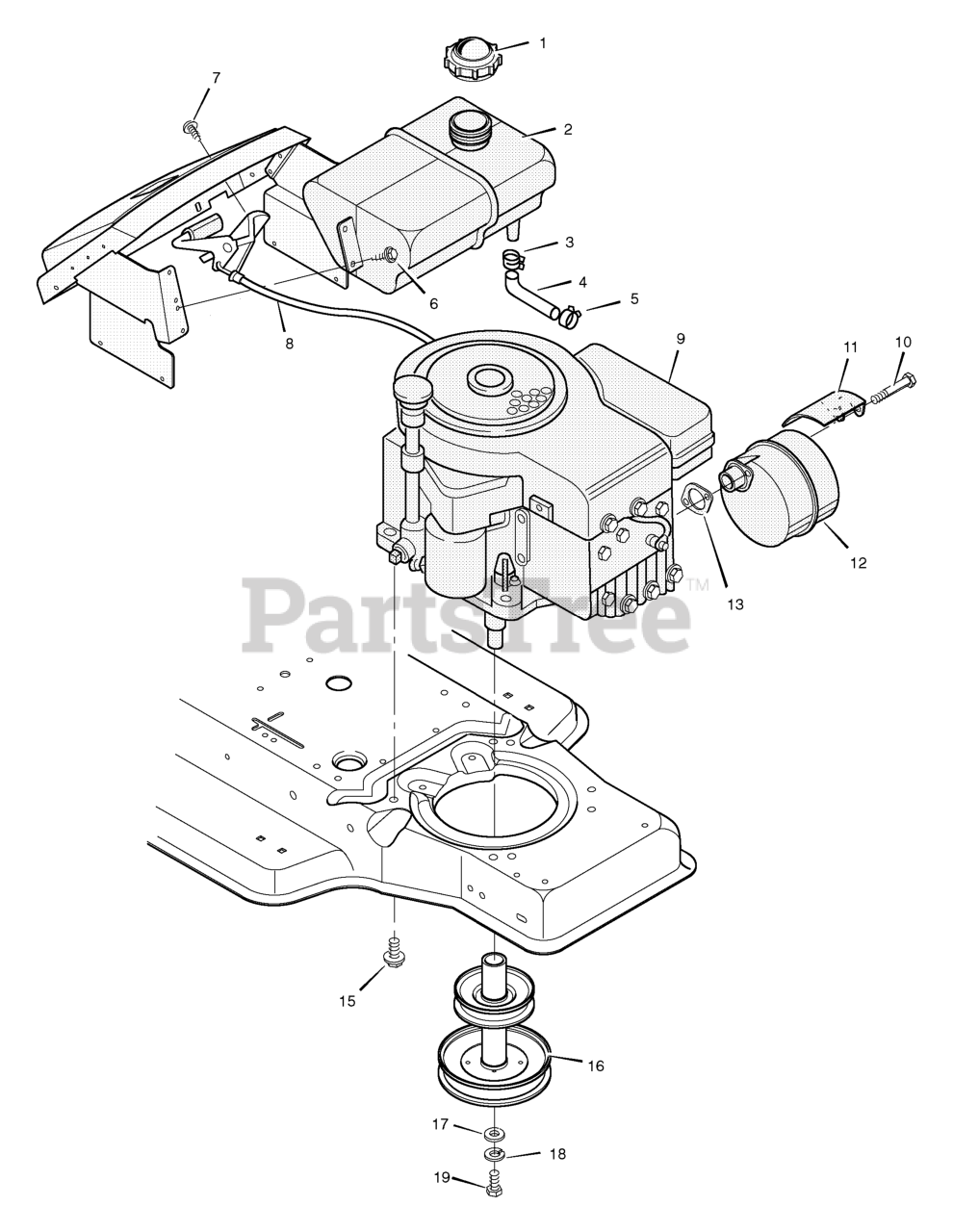

Engine Mount Parts Diagram

  • Title

1

Murray 092317MA

Fuel Cap

$10.99

$

In Stock, Qty 7

0

2

Murray 091869

Fuel Tank

$

$

Currently unavailable

3

Murray 091174

Hose Clamp

$

$

Currently unavailable

4

Murray 090671MA

Fuel Line

$17.99

$

Usually ships in 2-12 days

0

5

Murray 023713MA

Hose Clamp
(Superseded to 691038)

$3.99

$

In Stock, Qty 17

0

6

Murray 26X214MA

Screw

$4.49

$

Usually ships in 2-12 days

0

7

Murray 26X201MA

Screw

$4.49

$

In Stock, only 2 left!

0

8

Murray 091983

Throttle Control

$

$

Currently unavailable

9

Engine *

$

$

Not available

10

Murray 01X134MA

Bolt

$10.99

$

Usually ships in 2-12 days

0

11

Murray 091277MA

Shield, Heat

$6.99

$

Usually ships in 2-12 days

0

12

Murray 091271

Muffler

$52.99

$

Usually ships in 2-12 days

0

13

Murray 692236

GASKET, Exhaust

$5.49

$

In Stock, Qty 20+

0

15

Murray 0025X7MA

Bolt, Engine Mount
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

16

Murray 092318 Z

Pulley, Stack

$

$

Currently unavailable

17

Murray 17X170MA

Washer

$

$

Not available

18

Murray 019X35MA

Lockwasher

$4.99

$

In Stock, Qty 11

0

19

Murray 01X140MA

Bolt, Hex

$5.49

$

In Stock, Qty 15

0
