38602 - Toro 24" Snow Commander Snow Thrower (SN: 230000001 - 230999999) (2003) ENGINE AND FRAME ASSEMBLY Parts Diagram

24" Snow Commander Snow Thrower

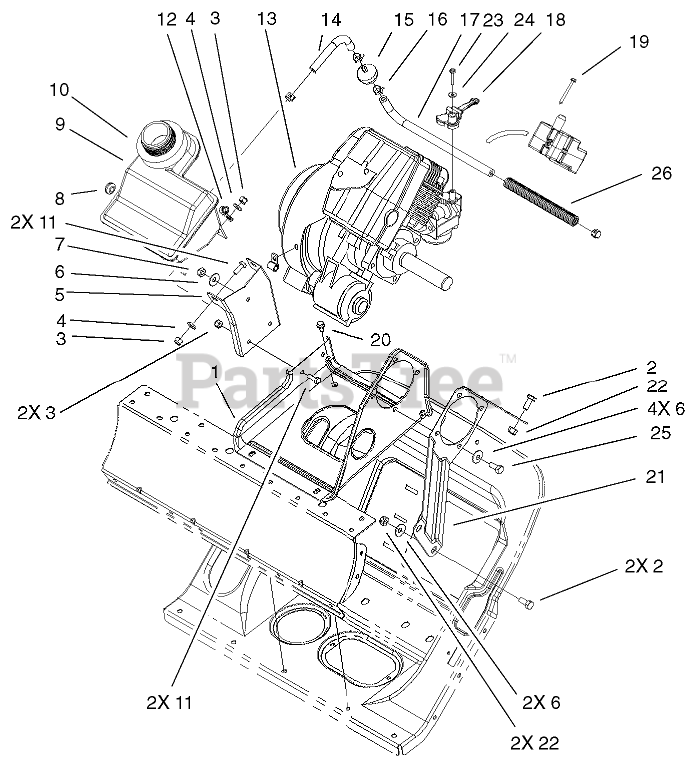

ENGINE AND FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 105-3515-03

SUPPORT-ENGINE

$

$

Not available

2

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

3

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

4

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 100-9899-03

SUPPORT-RECOIL

$25.99

$

Usually ships in 3-6 days

0

6

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

8

Toro 237-89

GROMMET-RUBBER

$3.49

$

In Stock, only 4 left!

0

9

Toro 55-8831

Tank-Gas
(Superseded to 105-8953)

$65.99

$

In Stock, only 1 left!

0

10

Toro 55-9310

SEAL-FOAM

$

$

Not available

11

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 2412-91

Clamp (only on: 38602, 38603)

$3.99

$

In Stock, only 2 left!

0

13

Engine-Briggs and Stratton, 084332-0130-E1 (Only on: 38600, 38601)

Note: Not serviced separately

$

$

Not available

13

Engine-Briggs and Stratton, 084332-0130-E1 (Only on: 38600, 38601)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

13

Engine-Briggs and Stratton, 084333-0199-E1 (Only on: 38602, 38603)

Note: Not serviced separately

$

$

Not available

13

Engine-Briggs and Stratton, 084333-0199-E1 (Only on: 38602, 38603)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

14

Toro 94-9932

HOSE-FUEL
(Superseded to 109-0304)

Note: Not serviced

$2.49

$

In Stock, Qty 11

0

15

Toro 56-6360

FILTER-FUEL

$6.99

$

In Stock, only 4 left!

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

17

Toro 104-4119

HOSE - GAS

$8.99

$

Usually ships in 3-6 days

0

18

Toro 104-0878

LEVER-CHOKE

$14.99

$

In Stock, only 2 left!

0

19

Toro 32144-27

Screw-Plastite (only on: 38602, 38603)

$7.49

$

Usually ships in 3-6 days

0

20

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

21

Toro 104-0875-03

BRACE-ENGINE

$

$

Not available

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0

24

Toro 104-4143

WASHER

$1.99

$

In Stock, only 4 left!

0

25

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

26

Toro 104-4149

CONDUIT

$

$

Not available

99

Toro 104-9705

Cord-Electric (only on: 38602)
(Superseded to 106-4741)

Note: Not illustrated

$

$

Not available
