38602 - Toro 24" Snow Commander Snow Thrower (SN: 230000001 - 230999999) (2003) CHUTE ASSEMBLY Parts Diagram

24" Snow Commander Snow Thrower

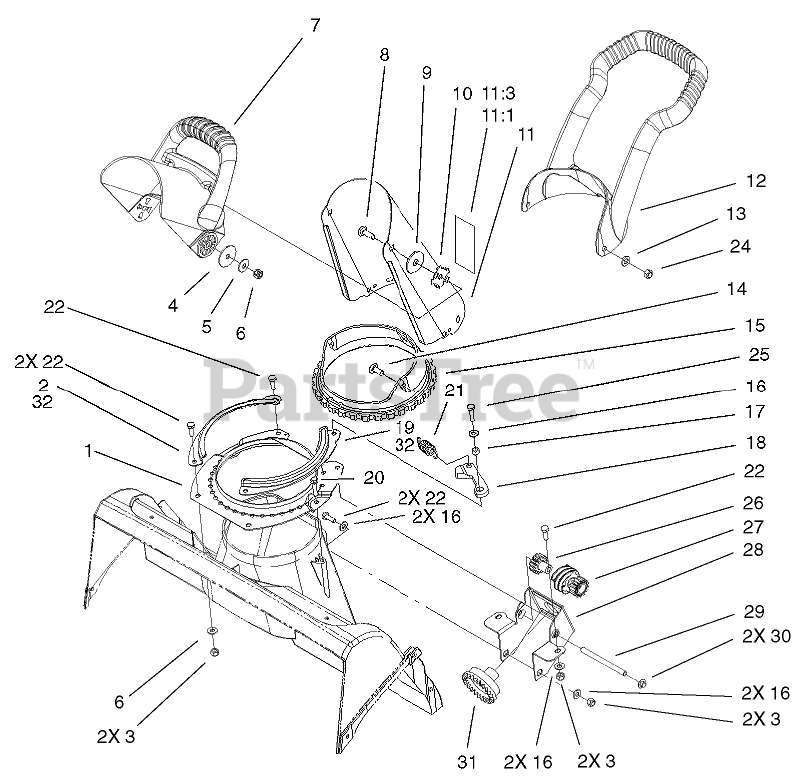

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 55-8921-03

RING-SUPPORT, CHUTE

$28.99

$

In Stock, Qty 9

0

2

Toro 71-4990-03

Retaining-Ring,Chute RH (only on: 38600, 38602)

$

$

Not available

3

Toro 3296-42

Nut-Lock, NI (only on: 38601, 38603)

$0.99

$

In Stock, Qty 20+

0

4

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

5

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

7

Toro 104-0882

CHUTE-DEFLECTOR

$

$

Not available

8

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

9

Toro 20-4320

WASHER-RUBBER

$0.99

$

In Stock, Qty 8

0

10

Toro 55-8950

PLATE-FRICTION

$8.99

$

Usually ships in 3-6 days

0

11

Toro 104-4115

Chute-Discharge W/Decal (only on: 38600, 38602)

$68.99

$

In Stock, only 1 left!

0

11

Toro 94-2791

Chute ASM W/Decal (only on: 38601, 38603)

$

$

Not available

11:1

Toro 104-4135

Decal-Danger (only on: 38600, 38602)

$5.99

$

In Stock, only 1 left!

0

11:3

Toro 94-2901

Decal-Danger Discharge (only on: 38601, 38603)

$

$

Not available

12

Toro 104-0884

Handle-Chute Control (only on: 38600, 38602)

$42.99

$

Usually ships in 3-6 days

0

13

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 16

0

14

Toro 100-5487

Screw-Truss Hd, Phillips (only on: 38600, 38602)

$1.99

$

In Stock, Qty 20+

0

14

Toro 100-5486

Screw-Truss Hd, Phillips (only on: 38601, 38603)

$2.49

$

Usually ships in 3-6 days

0

15

Toro 104-2763

Ring-Chute (only on: 38600, 38602)

$47.99

$

In Stock, Qty 7

0

15

Toro 55-8720

Ring-Gear, Chute (only on: 38601, 38603)

$

$

Not available

16

Toro 3256-22

Washer-Flat (only on: 38601, 38603)

$0.99

$

In Stock, Qty 20+

0

17

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, Qty 20+

0

18

Toro 80-4610

DETENT

$12.99

$

In Stock, Qty 10

0

19

Toro 71-4980-03

Ring-Chute Retainer LH (only on: 38600, 38602)

$

$

Not available

20

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 7

0

21

Toro 80-4600

SPRING-EXTENSION

$7.99

$

In Stock, Qty 9

0

22

Toro 321-4

Screw-HH (only on: 38601, 38603)

$1.49

$

In Stock, Qty 20+

0

24

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 6

0

25

Toro 321-6

Screw-HH (only on: 38600, 38602)

$0.99

$

In Stock, Qty 20+

0

26

Toro 55-8750

Gear-Spur, Spacer (only on: 38601, 38603)

$18.99

$

In Stock, only 1 left!

0

27

Toro 105-3512

Gear-Spur/Worm (only on: 38601, 38603)

$40.99

$

In Stock, only 1 left!

0

28

Toro 104-8660-03

Bracket-Chute Gears (only on: 38601, 38603)

$

$

Not available

29

Toro 55-9150

Shaft-Gear, Worm (only on: 38601, 38603)

$25.99

$

In Stock, only 1 left!

0

30

Toro 32112-11

Nut-Push (only on: 38601, 38603)

$1.49

$

In Stock, Qty 6

0

31

Toro 55-8740

Gear-Face (only on: 38601, 38603)

$

$

Not available

32

Toro 55-8910-03

Ring-Retainer, Chute (only on: 38601, 38603)

$21.99

$

In Stock, Qty 5

0
