38602 - Toro 24" Snow Commander Snow Thrower (SN: 210000001 - 210999999) (2001) LOWER HOUSING ASSEMBLY Parts Diagram

24" Snow Commander Snow Thrower

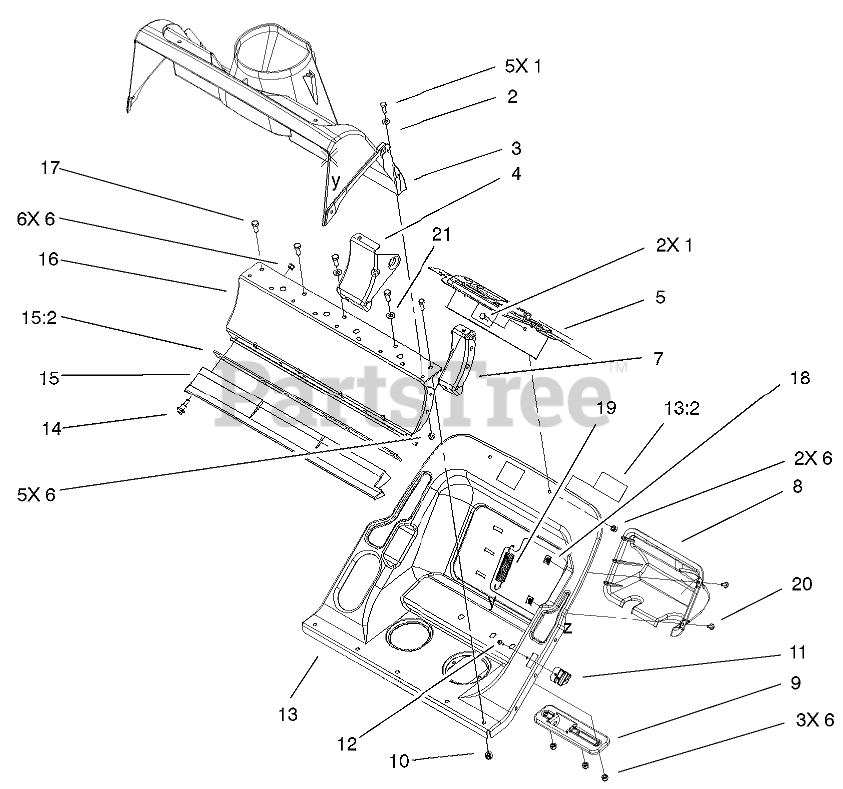

LOWER HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 100-9894

HOUSING-ROTOR, UPPER

$

$

Not available

4

Toro 104-0865

BRACKET-PIVOT, RH

$

$

Not available

5

Toro 104-0887-03

CONTROL PANEL SUPPORT ASM

$

$

Not available

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 104-0864

BRACKET-PIVOT, LH

$

$

Not available

8

Toro 104-0874

COVER-CARB

$

$

Not available

9

Toro 100-9897

BRACKET-PIVOT, CENTER

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 104-0880

GUIDE-CABLE, CLUTCH

$

$

Not available

12

Toro 95-4234

SCREW-PPH

$2.49

$

In Stock, Qty 5

0

13

Toro 104-4131

Housing-Lower W/Decal (only on: 38602)

$243.99

$

Usually ships in 3-6 days

0

13

Toro 100-9888-03

Housing-Lower (only on: 38600)

$

$

Not available

13:2

Toro 61-4790

Decal (only on: 38602)

$

$

Not available

14

Toro 104-0858

BOLT-SHOULDER

$5.49

$

In Stock, Qty 8

0

15

Toro 104-4138

SCRAPER ASM

$47.99

$

In Stock, only 4 left!

0

15:2

Toro 104-0879

FOAM-SCRAPER

$27.99

$

In Stock, only 1 left!

0

16

Toro 100-9893-03

HOUSING-ROTOR, LOWER

$

$

Not available

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 100-9889

NUT-SPEED

$7.49

$

In Stock, only 2 left!

0

19

Toro 104-4130

SPRING-EXTENSION, PIVOT

$21.99

$

Usually ships in 3-6 days

0

20

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0
