38602 (8122) - Gravely Lawn Tractor, 12hp, Without Hydraulic Lift FRONT AND REAR WHEELS Parts Diagram

Lawn Tractor, 12hp, Without Hydraulic Lift

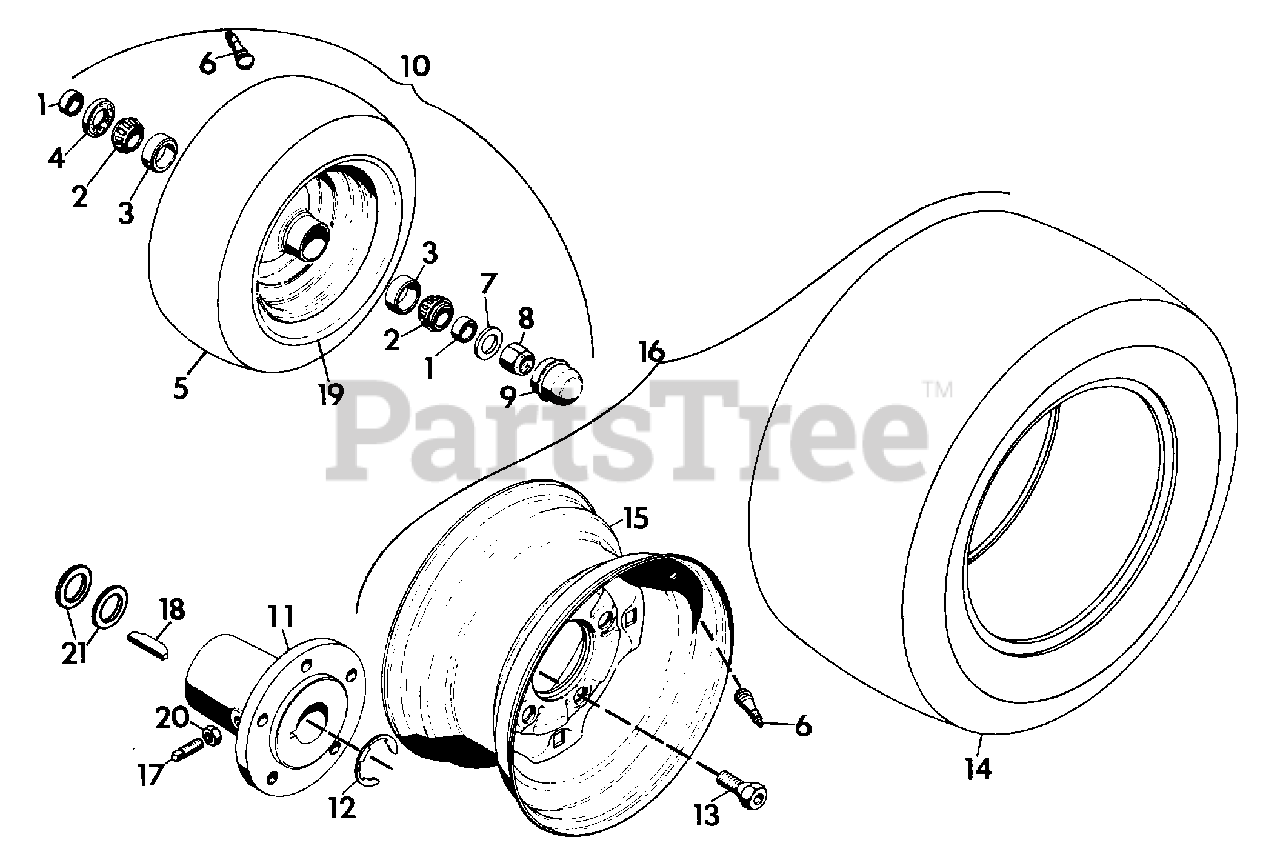

FRONT AND REAR WHEELS Parts Diagram

  • Title

1

Gravely 018448

SPACER
(Superseded to 03495900)

$15.99

$

In Stock, only 2 left!

0

2

Gravely 018446

BEARING, CONE LM 11949
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

3

Gravely 018445

BEARING, CUP LM 11910
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

4

Gravely 018447

SEAL, OIL
(Superseded to 05613200)

$15.99

$

In Stock, only 2 left!

0

5

Gravely 011190

TIRE, FRONT 16X6.50-8
(Superseded to 07122000)

$82.99

$

Usually ships in 4-12 days

0

5

Gravely 031280

TIRE, FRONT 16X7.50-8
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0

6

Gravely 011191

ASSEMBLY, VALVE STEM
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

7

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 018449

CAP
(Superseded to 03496000)

$14.99

$

In Stock, only 3 left!

0

10

Gravely 018442

ASSEMBLY, FRONT WHEEL 16X6.50-8
(Superseded to 21119100)

$312.99

$

Usually ships in 4-12 days

0

10

Gravely 031425

ASSEMBLY, FRONT WHEEL 16X7.50-8
(Superseded to 21212500)

$284.99

$

Usually ships in 4-12 days

0

11

Gravely 018052

HUB, WHEEL
(Superseded to 21112700)

$276.99

$

In Stock, only 2 left!

0

12

Gravely 018055

E-RING, 1.125 SHAFT
(Superseded to 20251300)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 012744

BOLT, HUB 7/16-20X.75(SPECIAL)
(Superseded to 07051400)

Note: (SPECIAL)

$10.99

$

In Stock, only 3 left!

0

14

Gravely 011194

TIRE, REAR 23X8.50-12
(Superseded to 20928000)

$

$

Not available

14

Gravely 031278

TIRE, REAR 23X10.50-12
(Superseded to 20928100)

$

$

Not available

15

Gravely 011195

RIM, WELDMENT
(Superseded to 20067700)

$

$

Not available

16

Gravely 011705

ASSEMBLY, REAR WHEEL 23X8.50-12
(Superseded to 20077100)

$

$

Not available

16

Gravely 031424

ASSEMBLY, REAR WHEEL 23X10.50-12
(Superseded to 07150100)

$202.99

$

Usually ships in 4-12 days

0

17

Gravely 102897

SCREW, SET 3/8-16X1.25 SHCP
(Superseded to 21046600)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 187184

KEY, WOODRUFF .250X2.125 SOFT
(Superseded to 06609000)

$3.99

$

In Stock, only 2 left!

0

19

Gravely 018443

RIM, FRONT WHEEL ASSEMBLY
(Superseded to 20257400)

$

$

Not available

20

Gravely 124829

NUT, JAM 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 423315

WASHER, FLAT .813X1.37X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0
