38601 - Toro 24" Snow Commander Snow Thrower (SN: 250000001 - 250999999) (2005) UPPER SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

24" Snow Commander Snow Thrower

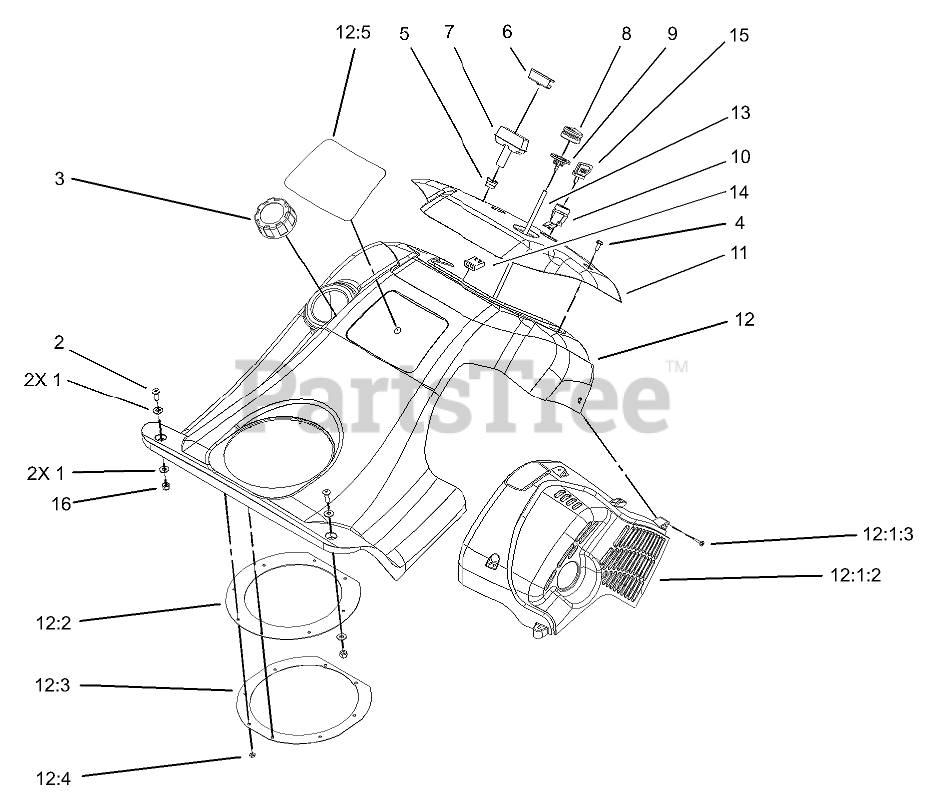

UPPER SHROUD AND CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

2

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

3

Toro 104-4133

GAS CAP ASM

$16.99

$

In Stock, only 1 left!

0

4

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

5

Toro 55-9410

GUIDE-ROPE, STARTER

$16.99

$

Usually ships in 3-6 days

0

6

Toro 612824

CLIP-STARTER

$4.49

$

In Stock, Qty 10

0

7

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

8

Toro 66-7460

BULB-PRIMER

$6.49

$

In Stock, Qty 20+

0

9

Toro 44-2750

BODY-PRIMER

$8.99

$

In Stock, Qty 20+

0

10

Toro 40-5940

SWITCH

$15.99

$

In Stock, only 1 left!

0

11

Toro 104-8662

PANEL-CONTROL R, CE

$

$

Not available

12

Toro 106-4735

UPPER SHROUD ASM
(Superseded to 108-5099)

$

$

Not available

12:1:2

Toro 104-0860

SHIELD-HEAT

$

$

Not available

12:1:3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

12:2

Toro 105-3543

Seal-Chute

$15.99

$

In Stock, only 1 left!

0

12:3

Toro 55-9540-03

RETAINER-SEAL, CHUTE

$21.99

$

Usually ships in 3-6 days

0

12:4

Toro 3290-474

PALNUT

$0.99

$

In Stock, Qty 9

0

12:5

Toro 106-4717

Decal-Shroud Recoil

$

$

Not available

13

Toro 95-1861

HOSE-PRIMER

$11.99

$

In Stock, Qty 6

0

15

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 15

0

16

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 18

0
