38601 - Toro 24" Snow Commander Snow Thrower (SN: 250000001 - 250999999) (2005) UPPER HANDLE ASSEMBLY Parts Diagram

24" Snow Commander Snow Thrower

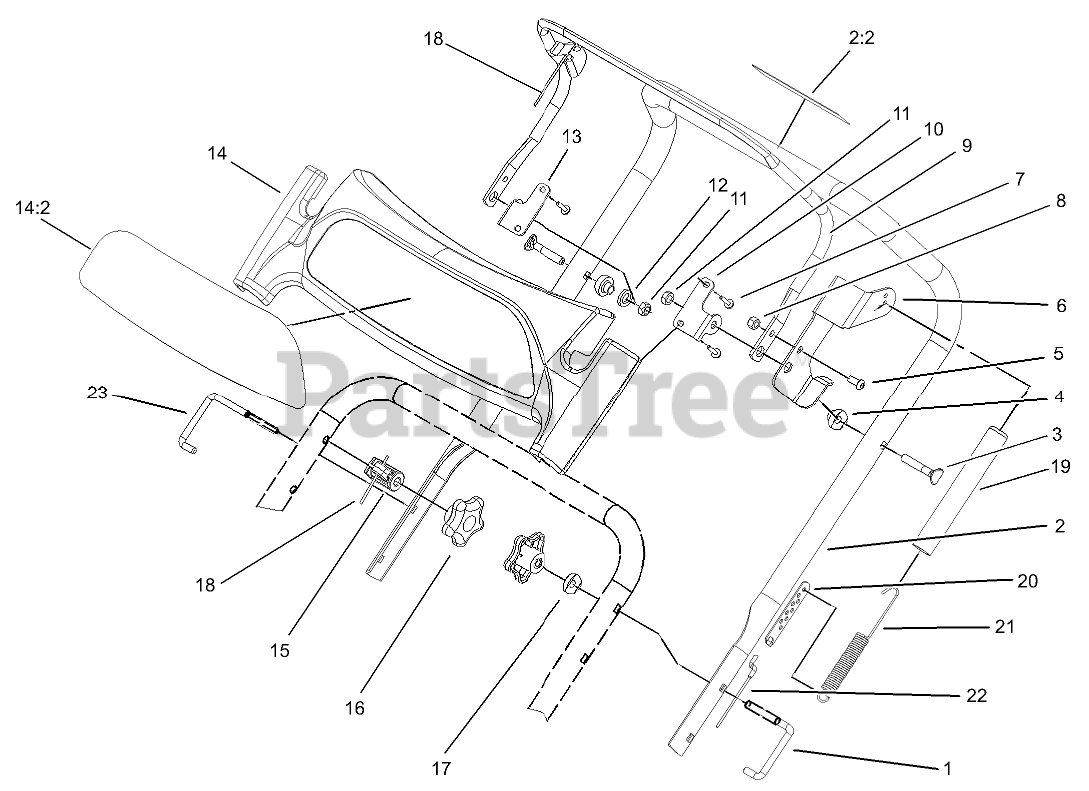

UPPER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 98-2266

LOCK-HANDLE

$5.49

$

In Stock, only 3 left!

0

2

Toro 105-1991

HANDLE-UPPER W/DECAL

$

$

Not available

2:2

Toro 94-2577

DECAL-DRIVE, ROTOR

$4.99

$

In Stock, only 1 left!

0

3

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 7

0

4

Toro 55-9340

SPACER-BAR, CONTROL

$4.99

$

Usually ships in 3-6 days

0

5

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

6

Toro 100-9882-03

ARM-CLUTCH, HANDLE

$

$

Not available

7

Toro 98-1375

SCREW-HWH

$2.49

$

In Stock, Qty 12

0

8

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 18

0

9

Toro 104-4104-03

BAR-CONTROL

$

$

Not available

10

Toro 104-4100

BRACKET-PANEL, LH

$

$

Not available

11

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 11

0

12

Toro 55-9670

WASHER

$2.49

$

Usually ships in 3-6 days

0

13

Toro 104-4101

BRACKET-PANEL, RH

$

$

Not available

14

Toro 106-4737

DISPLAY HANDLE PANEL ASM

$

$

Not available

14:2

Toro 106-4716

Decal-Display, Handle

$

$

Not available

15

Toro 100-9868

GUIDE-Cable, PIVOT

$15.99

$

In Stock, only 3 left!

0

16

Toro 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 6

0

17

Toro 75-9130

WASHER-CURVED
(Superseded to 107-3844)

$1.49

$

In Stock, Qty 20+

0

18

Toro 104-0895

CABLE-PIVOT

$25.99

$

In Stock, Qty 8

0

19

Toro 104-4145

COVER-SPRING

$14.99

$

In Stock, only 2 left!

0

20

Toro 71-5330

ADJUSTER-CABLE, CLUTCH
(Superseded to 136-7126)

$6.99

$

In Stock, Qty 16

0

21

Toro 104-0894

SPRING-CABLE

$23.99

$

In Stock, only 1 left!

0

22

Toro 104-0896

CABLE-CLUTCH

$25.99

$

In Stock, Qty 6

0

23

Toro 104-4126

LOCK-HANDLE, RH

$13.99

$

In Stock, only 2 left!

0
