38601 - Toro 24" Snow Commander Snow Thrower (SN: 250000001 - 250999999) (2005) LOWER HOUSING ASSEMBLY Parts Diagram

24" Snow Commander Snow Thrower

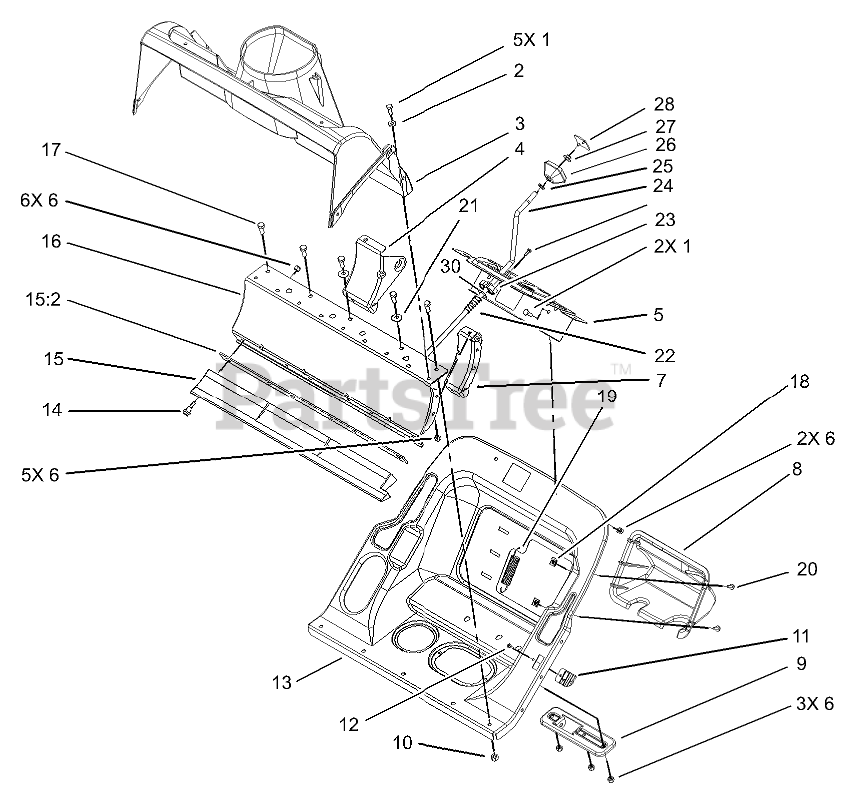

LOWER HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 100-9894

HOUSING-ROTOR, UPPER

$

$

Not available

4

Toro 104-0865

BRACKET-PIVOT, RH

$

$

Not available

5

Toro 104-0887-03

CONTROL PANEL SUPPORT ASM

$

$

Not available

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 104-0864

BRACKET-PIVOT, LH

$

$

Not available

8

Toro 104-8663

COVER-CARB CE

$

$

Not available

9

Toro 100-9897

BRACKET-PIVOT, CENTER

$

$

Not available

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 11

0

11

Toro 104-0880

GUIDE-CABLE, CLUTCH

$

$

Not available

12

Toro 95-4234

SCREW-PPH

$2.49

$

In Stock, Qty 6

0

13

Toro 105-3514-03

HOUSING-LOWER

$

$

Not available

14

Toro 104-0858

BOLT-SHOULDER

$5.49

$

In Stock, Qty 9

0

15

Toro 104-4138

SCRAPER ASM

$47.99

$

In Stock, only 1 left!

0

15:2

Toro 104-0879

FOAM-SCRAPER

$27.99

$

In Stock, only 1 left!

0

16

Toro 100-9893-03

HOUSING-ROTOR, LOWER

$

$

Not available

17

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 100-9889

NUT-SPEED

$7.49

$

In Stock, only 2 left!

0

19

Toro 104-4130

SPRING-EXTENSION, PIVOT

$21.99

$

Usually ships in 3-6 days

0

20

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

22

Toro 104-8664

SPRING-COMPRESSION

$11.99

$

Usually ships in 3-6 days

0

23

Toro 104-8659

BUSHING-CHUTE CRANK

$

$

Not available

24

Toro 104-8658

ROD-CHUTE CRANK

$

$

Not available

25

Toro 104-8665

WASHER

$

$

Not available

26

Toro 62-1320

KNOB-CONTROL, CHUTE

$27.99

$

Usually ships in 3-6 days

0

27

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

28

Toro 62-1520

COVER-KNOB

$

$

Not available

30

Toro 105-3540

Washer

$

$

Not available
