38601 - Toro 24" Snow Commander Snow Thrower (SN: 250000001 - 250999999) (2005) LOWER HANDLE ASSEMBLY Parts Diagram

24" Snow Commander Snow Thrower

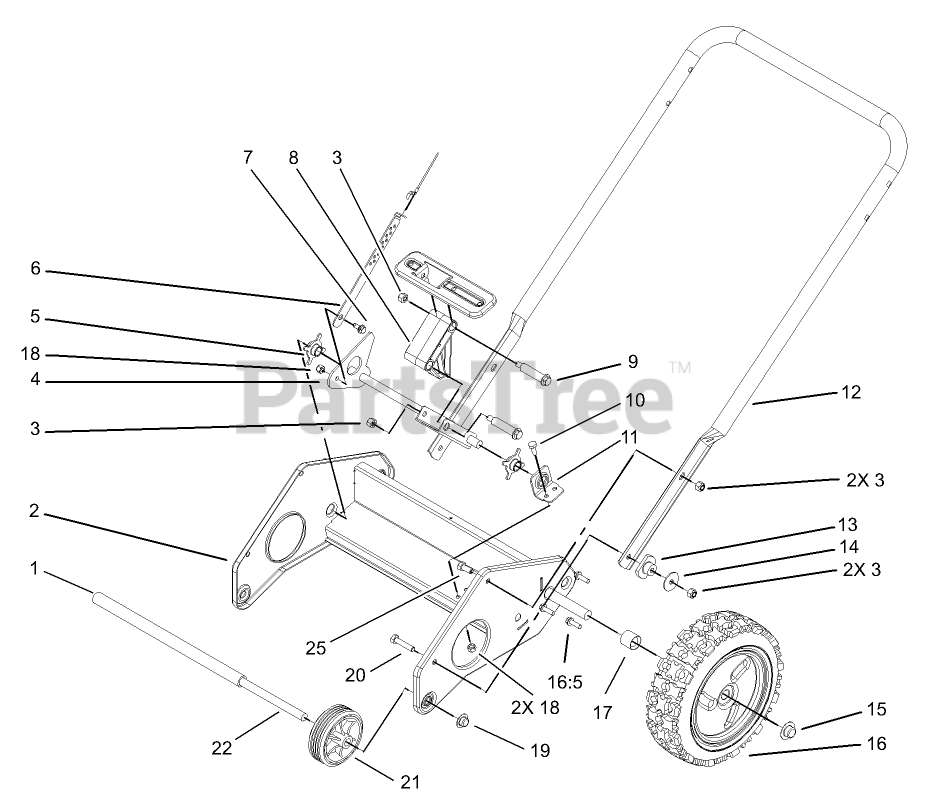

LOWER HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-9878

SPACER-PLASTIC

$

$

Not available

2

Toro 100-9887-03

WHEELFRAME ASM

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-0853

PIVOT ASM

$

$

Not available

5

Toro 104-0855

BUSHING-ROD, PIVOT

$

$

Not available

6

Toro 104-0899

ADJUSTER-CABLE, PIVOT

$15.99

$

In Stock, only 1 left!

0

7

Toro 104-4102

SCREW-SHOULDER

$

$

Not available

8

Toro 100-9896

BLOCK-PIVOT

$

$

Not available

9

Toro 100-9880

BOLT-SHOULDER
(Superseded to 136-7199)

$5.49

$

Usually ships in 3-6 days

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 100-9879

SUPPORT-ROD, PIVOT

$

$

Not available

12

Toro 100-9890-03

HANDLE-LOWER

$121.99

$

In Stock, only 2 left!

0

13

Toro 100-9883

BUSHING-PIVOT

$

$

Not available

14

Toro 3256-57

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

15

Toro 104-4111

NUT-PUSH

$3.99

$

In Stock, only 2 left!

0

16

Toro 105-3549

WHEEL ASM

$

$

Not available

16:5

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

17

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

Usually ships in 3-6 days

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

19

Toro 32112-14

NUT-PUSH

$2.99

$

In Stock, Qty 20+

0

20

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 100-9864

TIRE AND WHEEL ASM

$

$

Not available

22

Toro 100-9875

Axle-Front

$

$

Not available

25

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0
