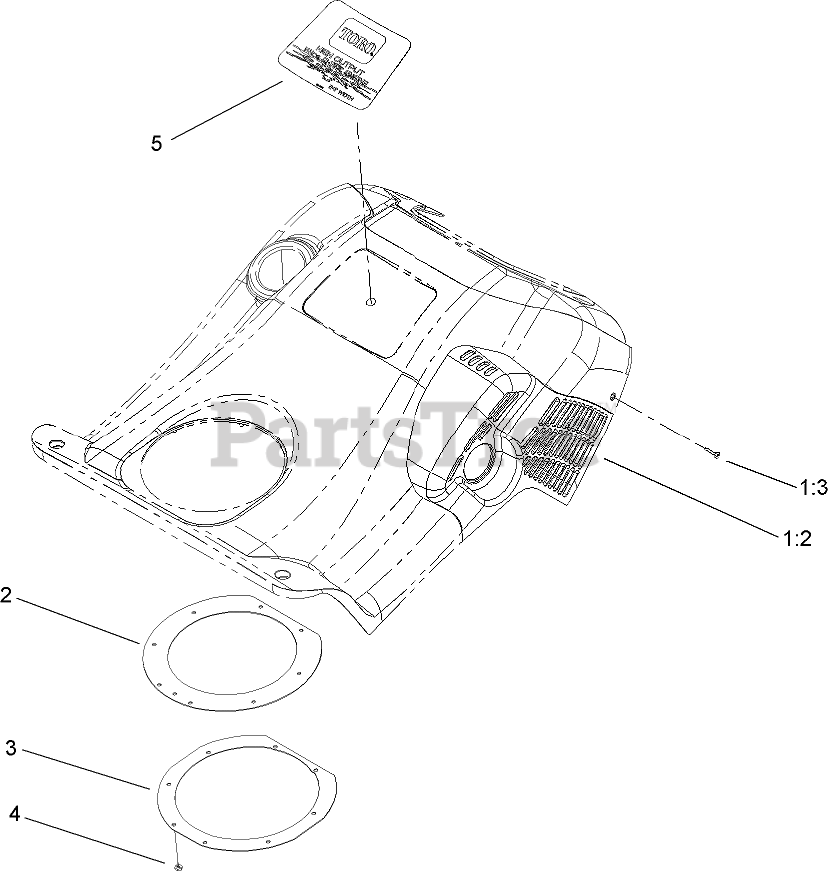

38600 - Toro 24" Snow Commander Snow Thrower (SN: 280000001 - 280999999) (2008) RECOIL UPPER SHROUD ASSEMBLY NO. 108-5099 Parts Diagram

24" Snow Commander Snow Thrower

RECOIL UPPER SHROUD ASSEMBLY NO. 108-5099 Parts Diagram

  • Title
1:2

Toro 104-0860

SHIELD-HEAT

$

$

Not available

1:3

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

1

UPPER SHROUD ASM

Note: Not serviced separately

$

$

Not available

2

Toro 105-3543

Seal-Chute

$15.99

$

In Stock, Qty 6

0

3

Toro 55-9540-03

RETAINER-SEAL, CHUTE

$21.99

$

In Stock, only 4 left!

0

4

Toro 3290-474

PALNUT

$0.99

$

In Stock, Qty 9

0

5

Toro 108-5083

DECAL-UPPER SHROUD

$

$

Not available
