38600 - Toro 24" Snow Commander Snow Thrower (SN: 260010001 - 260999999) (2006) UPPER HOUSING AND SIDE PLATE ASSEMBLY Parts Diagram

24" Snow Commander Snow Thrower

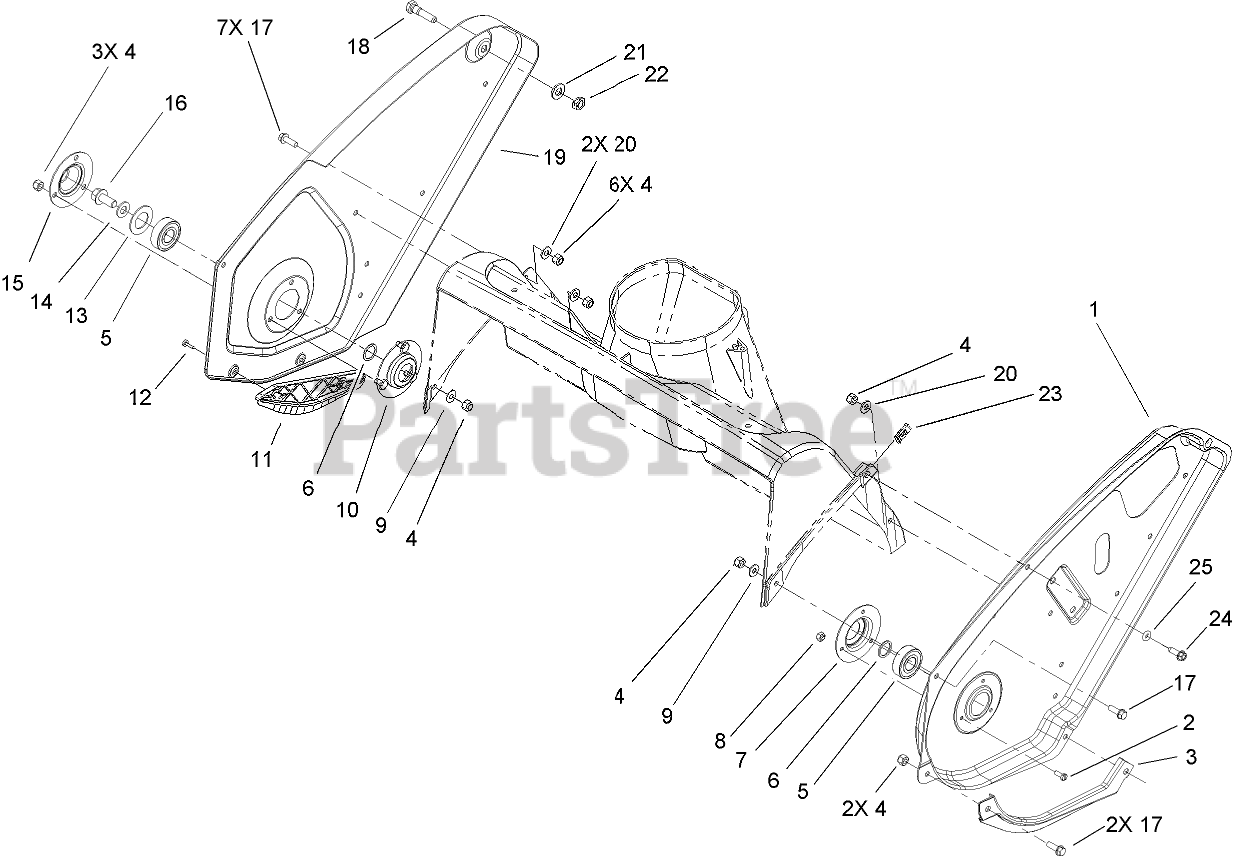

UPPER HOUSING AND SIDE PLATE ASSEMBLY Parts Diagram

  • Title

1

Toro 100-9865-03

SIDEPLATE-LH

$

$

Not available

2

Toro 32105-8

SCREW-SHH

$2.49

$

In Stock, only 1 left!

0

3

Toro 104-0871

GUARD-ROTOR, LH

$5.99

$

In Stock, Qty 9

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

6

Toro 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

7

Toro 38-8620

FLANGE-BEARING

$

$

Not available

8

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 52-9110

FLANGE-BEARING

$24.99

$

In Stock, only 4 left!

0

11

Toro 104-0872

GUARD-ROTOR, RH

$5.99

$

In Stock, only 1 left!

0

12

Toro 95-4234

SCREW-PPH

$2.49

$

In Stock, Qty 5

0

13

Toro 52-7270

WASHER-RUBBER

$4.49

$

In Stock, only 2 left!

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 52-7290-03

RETAINER-BEARING

$23.99

$

Usually ships in 3-6 days

0

16

Toro 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

17

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 20+

0

18

Toro 38-8211

PIN-ROTOR

$6.99

$

Usually ships in 3-6 days

0

19

Toro 100-9870-03

SIDEPLATE-RH

$

$

Not available

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 32152-8

NUT-LOCK, CONE

$3.49

$

In Stock, only 1 left!

0

23

Toro 702552

NUT-SPEED

$

$

Not available

24

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

25

Toro 104-8657

O-RING

$5.99

$

Usually ships in 3-6 days

0
