38599 - Gravely 48" Snow Blower for 4-Wheel Tractor BLOWER HOUSING Parts Diagram

48" Snow Blower for 4-Wheel Tractor

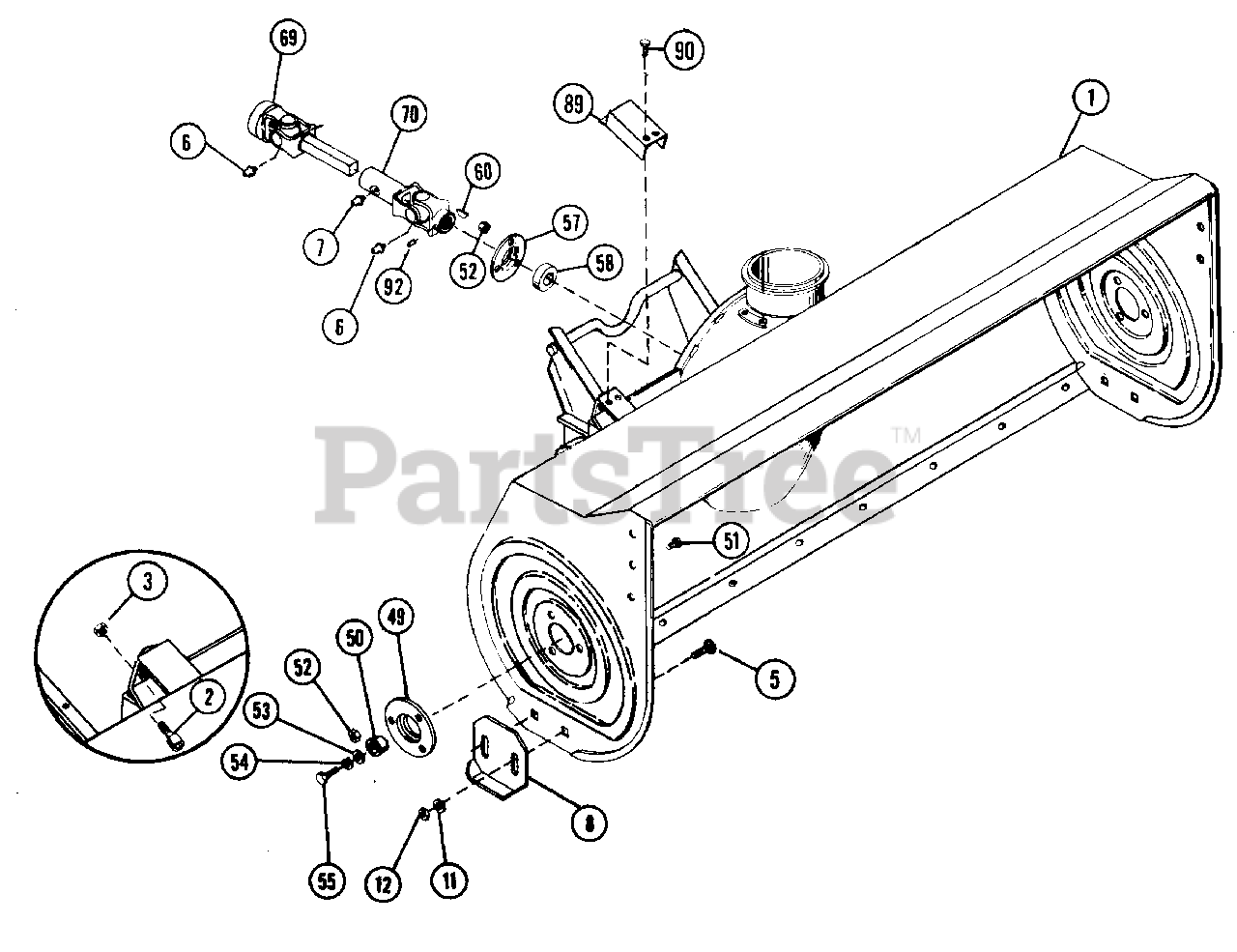

BLOWER HOUSING Parts Diagram

  • Title
1

Gravely 038823

40" SNO THRO HOUSING
(Superseded to 03328600)

$

$

Not available

1

Gravely 037520

48" SNO THRO HOUSING
(Superseded to 03333200)

$

$

Not available

2

Gravely 036885

SCREW, 10-24X.375 CAP
(Superseded to 05915600)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 036886

NUT, LOCK 10-24
(Superseded to 06530600)

$0.99

$

In Stock, Qty 8

0

5

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

8

Gravely 036883

RUNNER, SKID SHOE
(Superseded to 03075553)

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

49

Gravely 036871

SUPPORT, BEARING
(Superseded to 05063300)

$29.99

$

In Stock, only 2 left!

0

50

Gravely 036872

BUSHING, FLANGE 1X1.12X.625
(Superseded to 05503500)

$12.99

$

In Stock, Qty 20+

0

51

Gravely 036873

BOLT, RIB NECK 1/4-20X.5
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

52

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

53

Gravely 036840

WASHER, FLAT .515X1.441X.1
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

54

Gravely 131099

WASHER, LOCK 3/8 SP. HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

55

Gravely 180173

BOLT, HEX 1/2-13X1
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

57

Gravely 036875

BEARING, FLANGE
(Superseded to 03186000)

$45.99

$

Usually ships in 4-12 days

0

58

Gravely 036876

BEARING, BALL
(Superseded to 05416000)

$14.99

$

In Stock, Qty 7

0

60

Gravely 120502

KEY, WOODRUFF 3/16X7/8 HRD #11
(Superseded to 06608200)

$3.99

$

Usually ships in 4-12 days

0

69

Gravely 038819

SHAFT, PROP. SQ. BAR
(Superseded to 03328400)

$

$

Not available

70

Gravely 038818

U-JOINT, FEMALE
(Superseded to 03328300)

$

$

Not available

89

$

$

Not available

90

Gravely 180016

BOLT, HEX 1/4-20X.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

92

Gravely 102592

SCREW, SET 3/8-16X.375
(Superseded to 06004000)

$2.99

$

Usually ships in 4-12 days

0
