38598 - Gravely 32" Snow Blower for 2-Wheel Tractor GEAR CASE AND RAKE Parts Diagram

32" Snow Blower for 2-Wheel Tractor

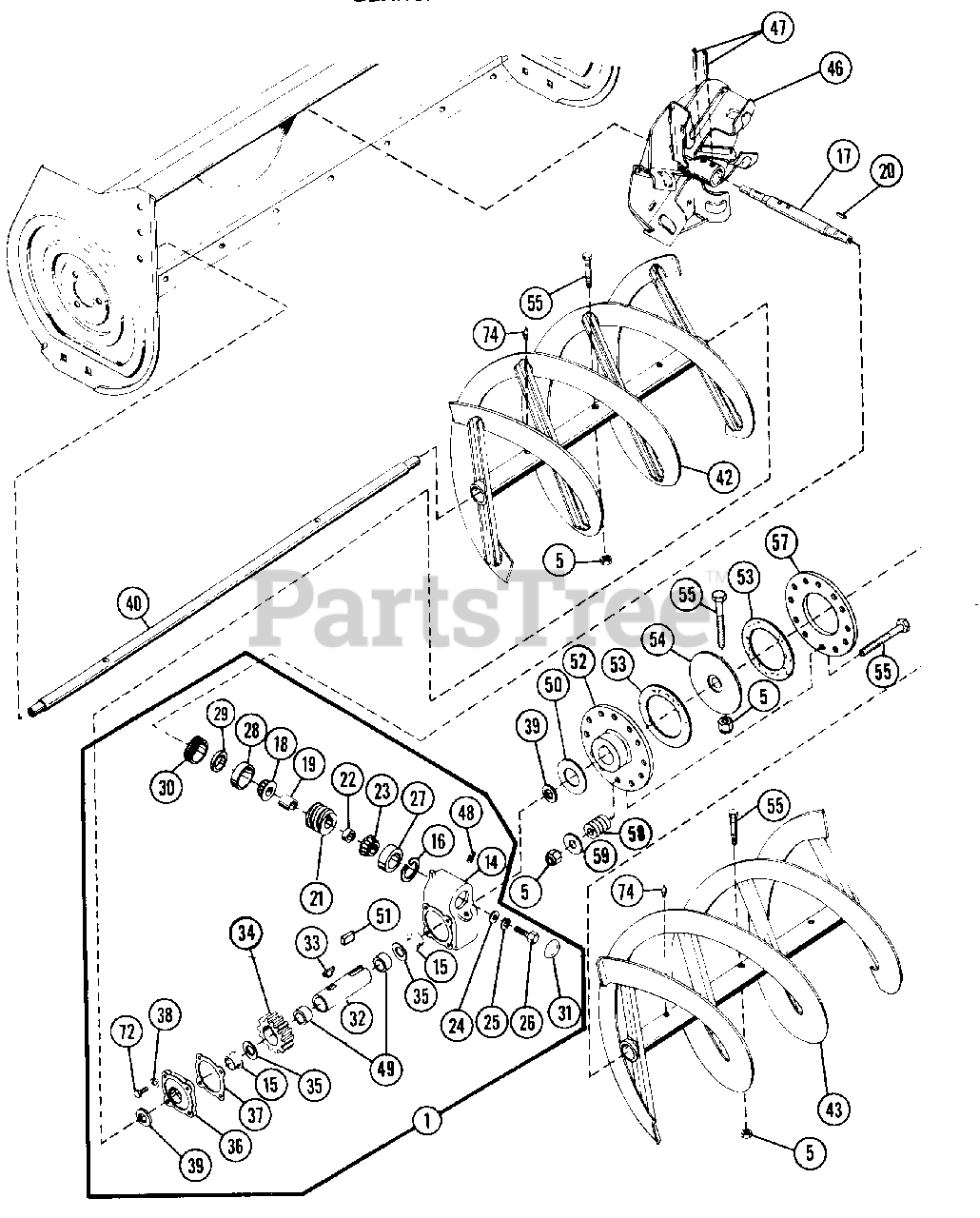

GEAR CASE AND RAKE Parts Diagram

  • Title
1

Gravely 037978

GEARCASE ASSEMBLY
(Superseded to 53301900)

$

$

Not available

5

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 037524

GEAR CASE

$

$

Not available

15

Gravely 036860

BUSHING, FLANGE 1.62X1.87X11
(Superseded to 05505900)

$14.99

$

In Stock, only 2 left!

0

16

Gravely 036921

RING, SNAP INTERNAL 1.781
(Superseded to 05707500)

$9.49

$

In Stock, Qty 11

0

17

Gravely 038817

WORM SHAFT
(Superseded to 03328200)

$270.99

$

In Stock, only 1 left!

0

18

Gravely 037526

BEARING CONE
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

19

Gravely 036352

BEARING SPACER
(Superseded to 03188100)

$26.99

$

In Stock, only 1 left!

0

20

Gravely 036230

KEY, STRAIGHT SAE 1035
(Superseded to 06601300)

$1.49

$

In Stock, Qty 5

0

21

Gravely 036853

WORM
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

22

Gravely 036852

SPACER, BEARING
(Superseded to 00200500)

$7.49

$

In Stock, only 2 left!

0

23

Gravely 018446

BEARING CONE
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

24

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 131099

WASHER, LOCK 3/8 SP HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

26

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 018445

BEARING CUP
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

28

Gravely 037527

BEARING CUP
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

29

Gravely 037528

SEAL
(Superseded to 05604600)

$10.99

$

In Stock, Qty 10

0

30

Gravely 037529

ADJUSTMENT PLUG
(Superseded to 03188200)

$58.99

$

Usually ships in 4-12 days

0

31

Gravely 036856

CAP, DUST
(Superseded to 00403700)

$18.99

$

In Stock, only 1 left!

0

32

Gravely 037530

GEARCASE SHAFT
(Superseded to 03054700)

$

$

Not available

33

Gravely 038820

KEY, FEATHER
(Superseded to 06604800)

$6.99

$

Usually ships in 4-12 days

0

34

Gravely 036858

GEAR, WORM
(Superseded to 52400900)

$176.99

$

Usually ships in 4-12 days

0

35

Gravely 036859

WASHER, 1.625X2.50X.012
(Superseded to 06408700)

$11.99

$

In Stock, only 4 left!

0

36

Gravely 036861

COVER, GEAR CASE
(Superseded to 02401300)

$136.99

$

Usually ships in 4-12 days

0

37

Gravely 036862

GASKET
(Superseded to 00200800)

$3.99

$

In Stock, Qty 20+

0

38

Gravely 121753

WASHER, LOCK 1/4 EXT TH TYA
(Superseded to 21051100)

$

$

Not available

39

Gravely 036863

SEAL
(Superseded to 05607000)

$9.99

$

In Stock, Qty 20+

0

40

Gravely 038831

32" RAKE SHAFT
(Superseded to 03329100)

$258.99

$

Usually ships in 4-12 days

0

42

Gravely 038832

RIGHT RAKE
(Superseded to 53302900)

$452.99

$

Usually ships in 4-12 days

0

43

Gravely 038833

LEFT RAKE
(Superseded to 53303000)

$

$

Not available

46

Gravely 037542

FAN
(Superseded to 03188900)

$672.99

$

Usually ships in 4-12 days

0

47

Gravely 036869

PIN, ROLL 5/16X1.75
(Superseded to 05801500)

$2.49

$

In Stock, Qty 6

0

48

Gravely 035945

PIPE PLUG
(Superseded to 00113800)

$5.99

$

Usually ships in 4-12 days

0

49

Gravely 037532

BUSHING, SLEEVE
(Superseded to 05513900)

$14.99

$

Usually ships in 4-12 days

0

50

Gravely 037535

WASHER
(Superseded to 06421100)

$9.49

$

Usually ships in 4-12 days

0

51

Gravely 037536

KEY, STRAIGHT
(Superseded to 06604700)

$9.49

$

Usually ships in 4-12 days

0

52

Gravely 037537

DRIVER
(Superseded to 03055000)

$

$

Not available

53

Gravely 037538

FRICTION DISC
(Superseded to 03055100)

$97.99

$

Usually ships in 4-12 days

0

54

Gravely 037539

DRIVER PLATE
(Superseded to 03055200)

$

$

Not available

55

Gravely 180087

BOLT, HEX 5/16-18X2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 037540

PRESSURE PLATE
(Superseded to 03055300)

$

$

Not available

58

Gravely 012871

SPRING, COMPRESSION
(Superseded to 08354000)

$9.49

$

Usually ships in 4-12 days

0

59

Gravely 120386

WASHER, FLAT
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

72

Gravely 180021

BOLT, HEX 1/4-20X.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

74

Gravely 036160

SPIN DRIVE ZERK FITTING
(Superseded to 07012600)

$

$

Not available
