38598 - Gravely 32" Snow Blower for 2-Wheel Tractor BLOWER HOUSING, LIFT ASSIST & DEFLECTOR Parts Diagram

32" Snow Blower for 2-Wheel Tractor

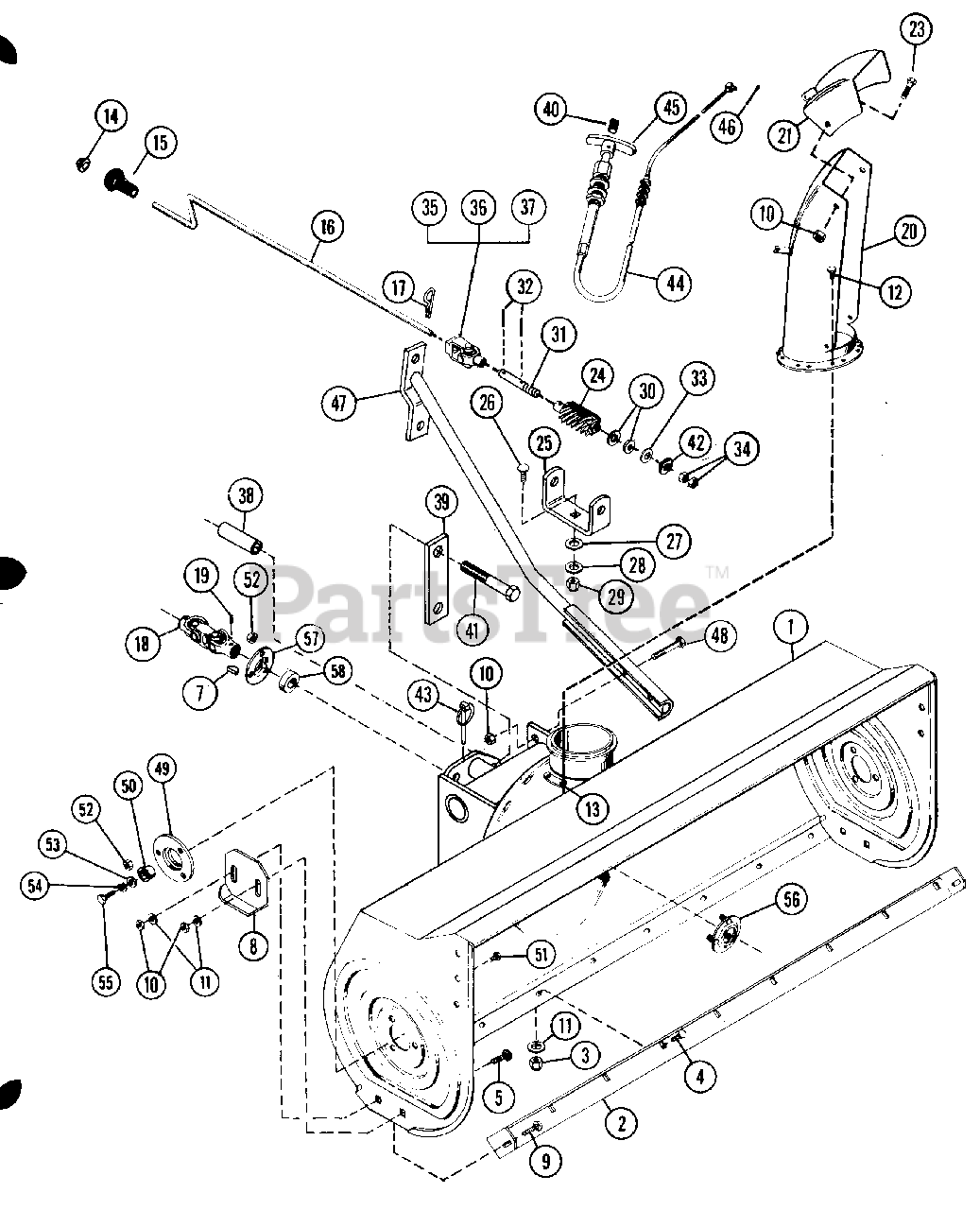

BLOWER HOUSING, LIFT ASSIST & DEFLECTOR Parts Diagram

  • Title
1

Gravely 038829

32" SNO THRO HOUSING
(Superseded to 03329000)

$

$

Not available

2

Gravely 038830

SCRAPER BLADE
(Superseded to 02437300)

$68.99

$

In Stock, only 3 left!

0

3

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 126211

BOLT 5/16-18X.625 RD HD SQ NK
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

5

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

7

Gravely 120502

KEY, WOODRUFF 3/16X7/8 HRD #11
(Superseded to 06608200)

$3.99

$

In Stock, only 1 left!

0

8

Gravely 036883

RUNNER, SKID SHOE
(Superseded to 03075553)

$39.99

$

Usually ships in 4-12 days

0

9

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

10

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 038836

SCREW, TAPTITE #10-24X.375
(Superseded to 07412100)

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 036894

CLAMP, CHUTE
(Superseded to 52409200)

$29.99

$

In Stock, only 1 left!

0

14

Gravely 036903

CAP
(Superseded to 01019800)

$2.99

$

In Stock, Qty 14

0

15

Gravely 036902

KNOB
(Superseded to 07508300)

$13.99

$

In Stock, Qty 6

0

16

Gravely 038849

CRANK, CHUTE CONTROL
(Superseded to 03330600)

$

$

Not available

17

Gravely 036075

HAIR PIN, INTERNAL
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 038834

JOINT ASSEMBLY
(Superseded to 03329900)

$581.99

$

Usually ships in 4-12 days

0

19

Gravely 102592

SCREW, SET 3/8-16X.38 SKHCUP
(Superseded to 06004000)

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 038835

DISCHARGE CHUTE
(Superseded to 02449953)

$

$

Not available

21

Gravely 036893

CHUTE DEFLECTOR

$

$

Not available

23

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 038839

WORM GEAR, L. H.
(Superseded to 02450000)

$45.99

$

Usually ships in 4-12 days

0

25

Gravely 038837

WORM CLEVIS
(Superseded to 02212300)

$15.99

$

Usually ships in 4-12 days

0

26

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

27

Gravely 138489

WASHER, LOCK 3/8 EXT. TH. TYA
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 038838

WASHER, LOCK SPECIAL 5/16 I.D.
(Superseded to 06310600)

$5.99

$

In Stock, only 2 left!

0

29

Gravely 120376

NUT, HEX 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

30

Gravely 038840

WASHER, PLASTIC .390X.875X.0
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

31

Gravely 038841

WORM SHAFT
(Superseded to 02451400)

$

$

Not available

32

Gravely 415236

PIN, SPRING .125X.750
(Superseded to 05803400)

$0.99

$

In Stock, Qty 16

0

33

Gravely 038842

WASHER, .390X.875X7 GA.
(Superseded to 06436800)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 038844

UNIVERSAL HALF
(Superseded to 02470400)

$129.99

$

Usually ships in 4-12 days

0

36

Gravely 038845

BLOCK, UNIVERSAL
(Superseded to 02470400)

$129.99

$

Usually ships in 4-12 days

0

37

Gravely 421202

PIN, SPRING .187X1.00
(Superseded to 05808800)

$2.99

$

Usually ships in 4-12 days

0

38

Gravely 035054

SPACER
(Superseded to 08538800)

$37.99

$

Usually ships in 4-12 days

0

39

Gravely 035053

STRAP, LOCKING
(Superseded to 08538200)

$62.99

$

In Stock, only 2 left!

0

40

Gravely 036911

SCREW, MACHINE 10-32X.50
(Superseded to 06106500)

$2.49

$

Usually ships in 4-12 days

0

41

Gravely 433156

BOLT, HEX 1/2-13X4.50
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

42

Gravely 038843

WAVE WASHER
(Superseded to 01320200)

$3.49

$

In Stock, Qty 7

0

43

Gravely 021244

PIN, SELF-LOCKING
(Superseded to 07014300)

$11.99

$

Usually ships in 4-12 days

0

44

Gravely 036898

CABLE, CONTROL
(Superseded to 06943400)

$168.99

$

In Stock, only 1 left!

0

45

Gravely 036910

HANDLE, TEE
(Superseded to 07513700)

$47.99

$

Usually ships in 4-12 days

0

46

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

47

Gravely 038846

CRANK SUPPORT
(Superseded to 03329743)

$

$

Not available

48

Gravely 180130

BOLT, HEX 3/8-16X2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 6

0

49

Gravely 036871

BEARING SUPPORT
(Superseded to 05063300)

$29.99

$

In Stock, only 1 left!

0

50

Gravely 036872

BUSHING, FLANGE
(Superseded to 05503500)

$12.99

$

In Stock, Qty 20+

0

51

Gravely 036873

BOLT, RIB NECK 1/4-20X.50
(Superseded to 07028600)

$3.99

$

In Stock, Qty 20+

0

52

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

53

Gravely 036840

WASHER, FLAT .515X1.441X.1
(Superseded to 06401022)

$2.99

$

In Stock, Qty 20+

0

54

Gravely 131099

WASHER, LOCK 3/8 SP. HEAVY
(Superseded to 06300120)

$3.49

$

In Stock, only 3 left!

0

55

Gravely 180173

BOLT, HEX 1/2-13X1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

56

Gravely 036875

BEARING, FLANGE
(Superseded to 03186000)

$45.99

$

Usually ships in 4-12 days

0

57

Gravely 036874

BEARING, FLANGE
(Superseded to 03185900)

$22.99

$

In Stock, only 3 left!

0

58

Gravely 036876

BEARING, BALL
(Superseded to 05416000)

$14.99

$

In Stock, only 3 left!

0

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

NS

Gravely 038056

DECAL, AMERICA
(Superseded to 20644900)

$

$

Not available

NS

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

NS

Gravely 038847

DECAL, CHUTE
(Superseded to 03330700)

$

$

Not available

NS

Gravely 038848

DECAL, DEFLECTOR
(Superseded to 03330800)

$

$

Not available
