38593 - Toro Power Clear Snow Thrower (SN: 311000001 - 311999999) (2011) ENGINE ASSEMBLY Parts Diagram

Power Clear Snow Thrower

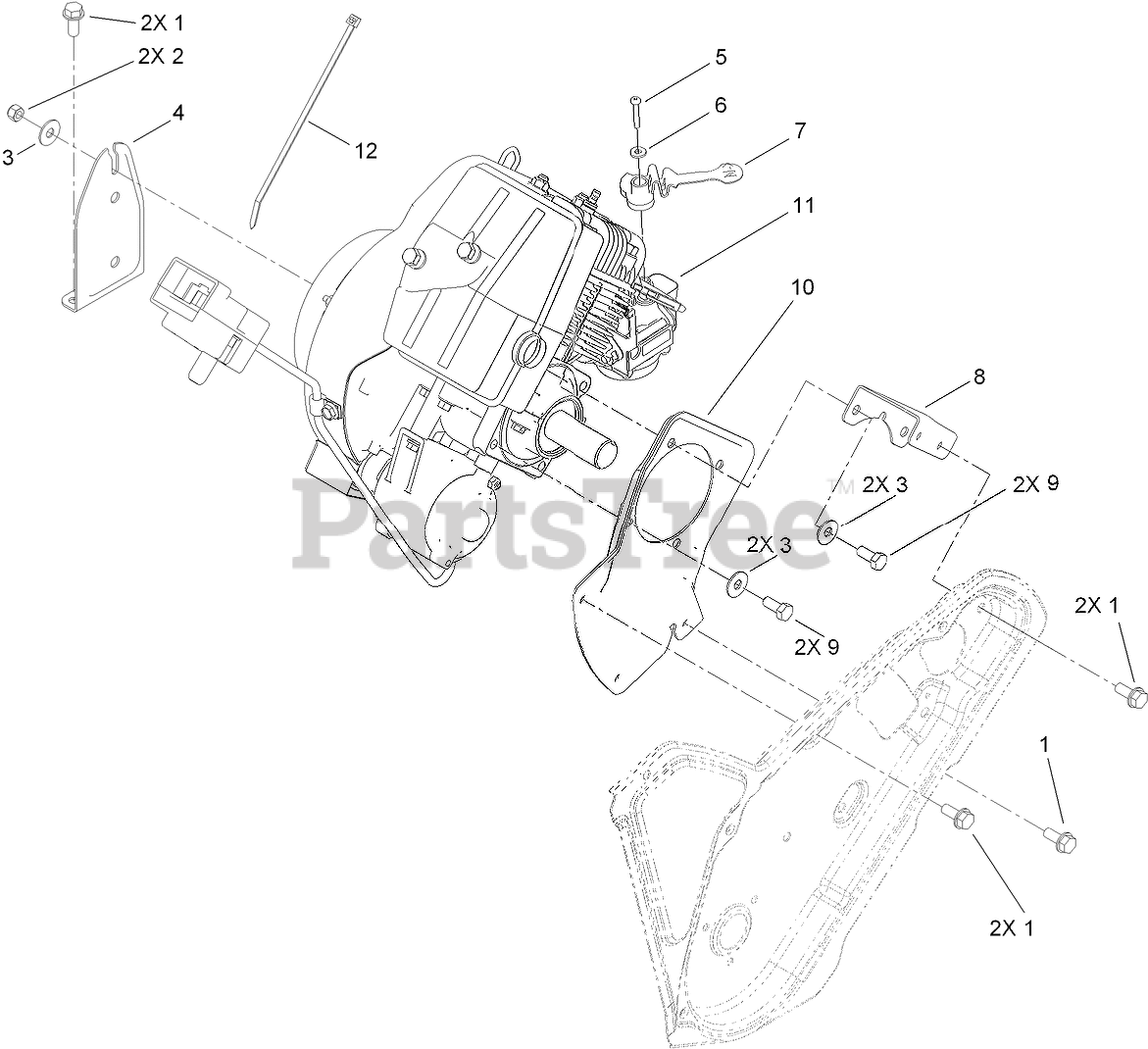

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

3

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

4

Toro 108-4891-03

BRACKET-RECOIL

$8.99

$

Usually ships in 3-6 days

0

5

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 10

0

6

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 110-9382

LEVER-CHOKE

$6.49

$

Usually ships in 3-6 days

0

8

Toro 108-4888-03

SUPPORT-ENGINE, SIDE

$7.99

$

Usually ships in 3-6 days

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Toro 108-4890-03

PLATE-ENGINE, PTO

$

$

Not available

11

ENGINE-B & S, 0842330199-E8

Note: Not serviced separately

$

$

Not available

11

ENGINE-B & S, 0842330199-E8

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

12

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
