38592 (1332) - Toro 32" Power Shift Snow Thrower (SN: 240000001 - 240999999) (2004) RECOIL STARTER PART NO. 590733 (OPTIONAL) Parts Diagram

32" Power Shift Snow Thrower

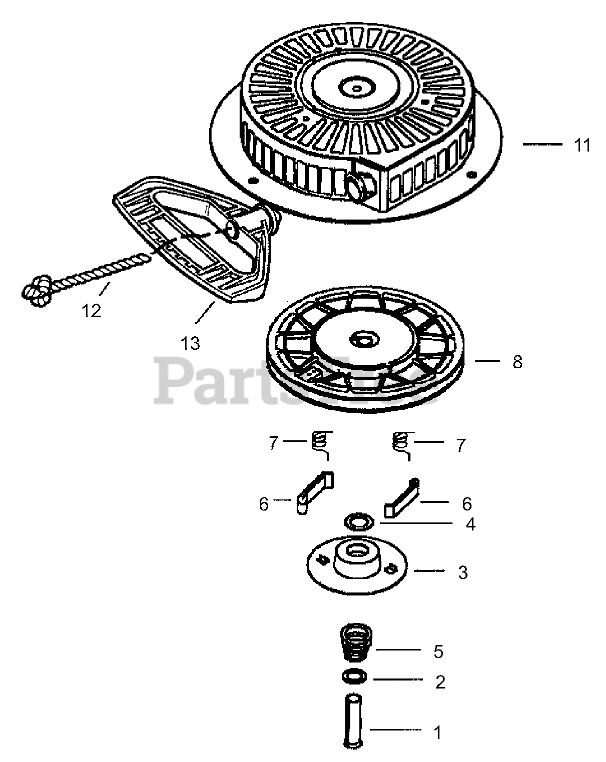

RECOIL STARTER PART NO. 590733 (OPTIONAL) Parts Diagram

  • Title
1

Tecumseh 590599A

Spring Pin (Incl. 4)

$5.49

$

In Stock, only 2 left!

0

2

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 590676

Retainer

$

$

Not available

4

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590697

Spring-Brake

$3.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590698

Dog-Starter

$6.99

$

In Stock, only 4 left!

0

7

Tecumseh 590699

Spring-Dog

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 590709

Pulley and Rewind Spring ASM

$18.99

$

In Stock, only 1 left!

0

11

Tecumseh 590734A

Starter Housing ASM
(Superseded to 590734B)

$

$

Not available

12

Tecumseh 590535

Rope-Starter (98 cut to length)

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0
