38592 (1332) - Toro 32" Power Shift Snow Thrower (SN: 220000001 - 220999999) (2002) RECOIL STARTER NO. 590749 Parts Diagram

32" Power Shift Snow Thrower

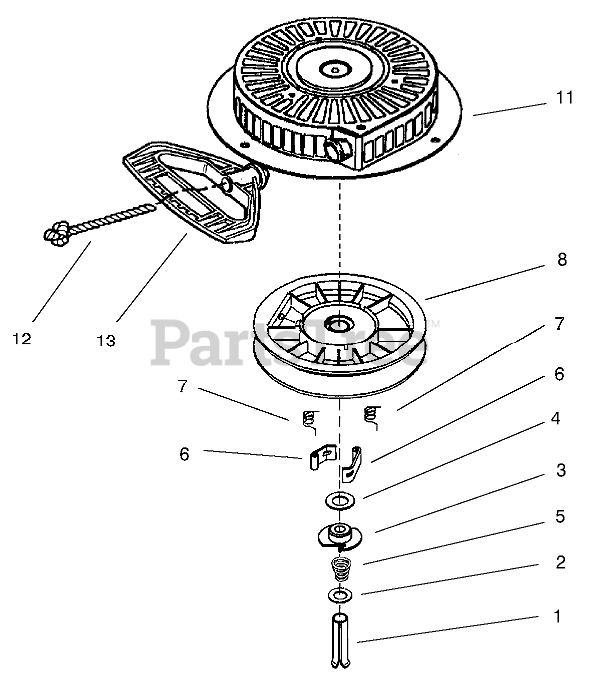

RECOIL STARTER NO. 590749 Parts Diagram

  • Title
1

Tecumseh 590599A

Spring Pin (Incl. 4)

Note: Original Tecumseh Part

$5.49

$

In Stock, only 3 left!

0

2

Tecumseh 590600

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

3

Tecumseh 590679

Retainer

Note: Original Tecumseh Part

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 590601

Washer

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590678

Spring-Brake

Note: Original Tecumseh Part

$3.49

$

Usually ships in 3-12 days

0

6

Tecumseh 590680

Dog-Starter

Note: Original Tecumseh Part

$5.99

$

In Stock, Qty 6

0

7

Tecumseh 590412

Spring-Dog

Note: Original Tecumseh Part

$8.49

$

In Stock, only 2 left!

0

8

Tecumseh 590682

Pulley and Rewind Spring ASM

Note: Original Tecumseh Part

$

$

Not available

11

Tecumseh 590750

Starter Housing ASM
(Superseded to 590750B)

Note: Original Tecumseh Part

$

$

Not available

12

Tecumseh 590535

Rope-Starter (98 cut to length)

Note: Original Tecumseh Part

$9.49

$

In Stock, Qty 12

0

13

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Original Tecumseh Part

$5.49

$

In Stock, only 1 left!

0
