38592 (1332) - Toro 32" Power Shift Snow Thrower (SN: 200000001 - 200999999) (2000) ENGINE AND TRANSMISSION ASSEMBLY Parts Diagram

32" Power Shift Snow Thrower

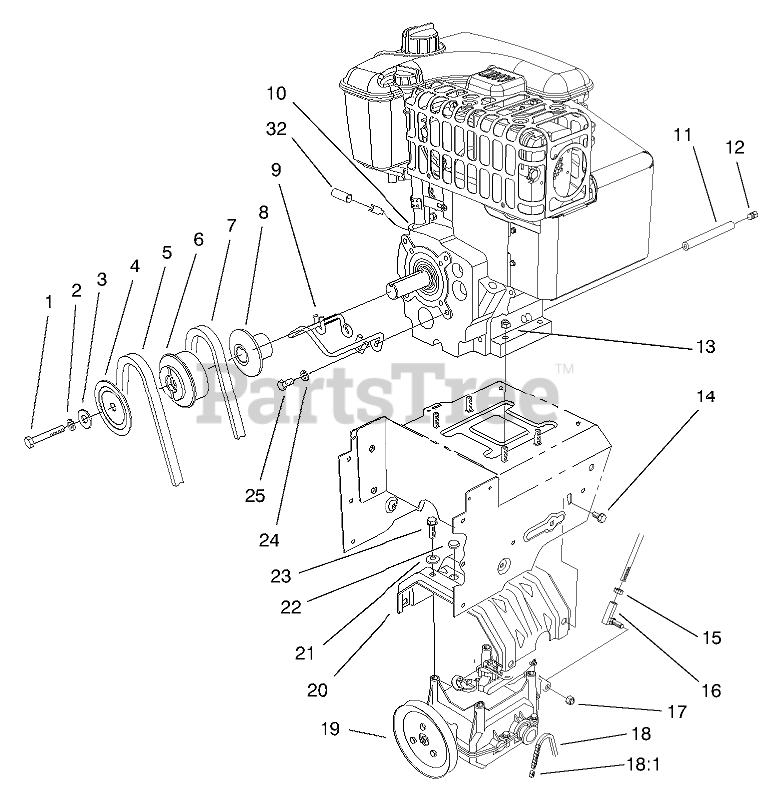

ENGINE AND TRANSMISSION ASSEMBLY Parts Diagram

  • Title
1

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

4

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

5

Toro 63-2967

V-BELT

$31.99

$

In Stock, only 1 left!

0

6

Toro 62-0930

PULLEY-ENGINE, CENTER

$80.99

$

Usually ships in 3-6 days

0

7

Toro 63-2955

V-BELT, TRACTION

$28.99

$

In Stock, only 1 left!

0

8

Toro 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

9

Toro 100-3432

GUIDE-BELT

$134.99

$

Usually ships in 3-6 days

0

10

Engine-13hp Tecumseh Ohsk 130-223819b (only on: 38087)

$

$

Not available

10

Engine-13hp Tecumseh Ohsk 130-223818b (only on: 38592)

$

$

Not available

10:2

Toro 99-9300

Cord-Extention (only on: 38592)
(Superseded to 117-0020)

$23.99

$

Usually ships in 3-6 days

0

11

Toro 289-34

NIPPLE-PIPE

$40.99

$

Usually ships in 3-6 days

0

12

Toro 288-2

CAP-PIPE

$19.99

$

In Stock, only 1 left!

0

13

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

14

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

15

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

16

Toro 78-2920

BALL-JOINT
(Superseded to 94-7572)

$34.99

$

In Stock, only 2 left!

0

17

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

18

Toro 63-2930

CHAIN

$

$

Not available

18:1

Toro 2710-15

LINK-OFFSET

$35.99

$

In Stock, only 1 left!

0

19

Toro 66-8030

TRACTION GEARCASE ASM

$2189.99

$

Usually ships in 3-6 days

0

20

Toro 63-2990-03

TRANSMISSION FRAME ASM

$

$

Not available

21

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

22

Toro 95-7947

CAP-PLUG

$

$

Not available

23

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

26

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

27

Toro 2710-15

LINK-OFFSET

$35.99

$

In Stock, only 1 left!

0

32

Toro 94-2782

Cap-Wire, Lite (only on: 38592)

$3.49

$

Usually ships in 3-6 days

0
