38591 (1232) - Toro 32" Power Shift Snow Thrower (SN: 099000001 - 099999999) (1999) TECUMSEH STARTER NO 590733 (OPTIONAL) Parts Diagram

32" Power Shift Snow Thrower

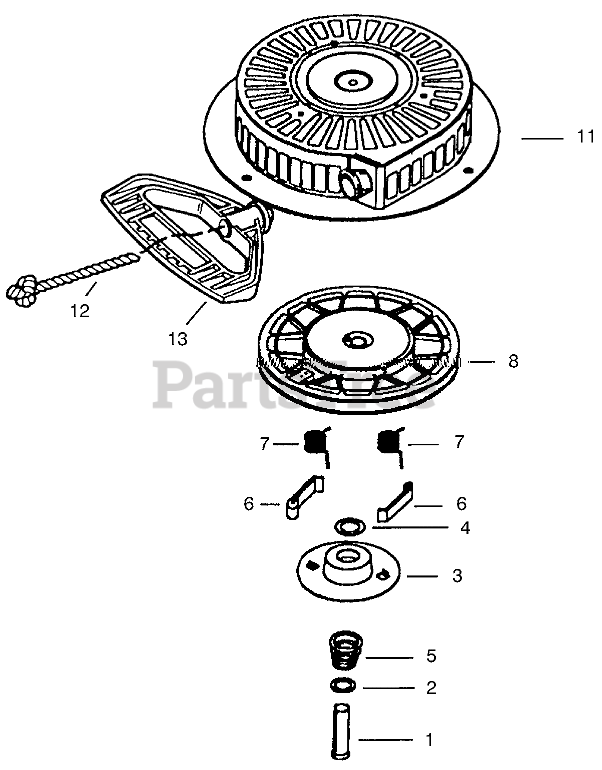

TECUMSEH STARTER NO 590733 (OPTIONAL) Parts Diagram

  • Title
1

Tecumseh 590599A

Pin-Spring (Incl. Ref. #4)

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

In Stock, only 2 left!

0

2

Tecumseh 590600

Washer

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

3

Tecumseh 590696

Retainer

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

In Stock, only 1 left!

0

4

Tecumseh 590601

Washer

Note: Obtain Parts From Your Local Tecumseh Dealer

$1.99

$

In Stock, only 4 left!

0

5

Tecumseh 590697

Spring-Brake

Note: Obtain Parts From Your Local Tecumseh Dealer

$3.99

$

Usually ships in 3-12 days

0

6

Tecumseh 590698

Dog-Starter

Note: Obtain Parts From Your Local Tecumseh Dealer

$6.99

$

In Stock, only 4 left!

0

7

Tecumseh 590699

Spring-Dog

Note: Obtain Parts From Your Local Tecumseh Dealer

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 590709

Pulley and Rewind Spring ASM

Note: Obtain Parts From Your Local Tecumseh Dealer

$18.99

$

In Stock, only 1 left!

0

11

Tecumseh 590734

Starter Housing ASM
(Superseded to 590734B)

Note: Obtain Parts From Your Local Tecumseh Dealer

$

$

Not available

12

Tecumseh 590535

Rope-Starter (98 cut to length)

Note: Obtain Parts From Your Local Tecumseh Dealer

$9.49

$

In Stock, Qty 13

0

13

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Not Included in Starter Assembly

$5.49

$

Usually ships in 3-12 days

0

13

Tecumseh 590574

Handle-Starter, Mitten Grip

Note: Obtain Parts From Your Local Tecumseh Dealer

$5.49

$

Usually ships in 3-12 days

0
