38591 (1232) - Toro 32" Power Shift Snow Thrower (SN: 089000001 - 089999999) (1998) HOUSING ASSEMBLY Parts Diagram

32" Power Shift Snow Thrower

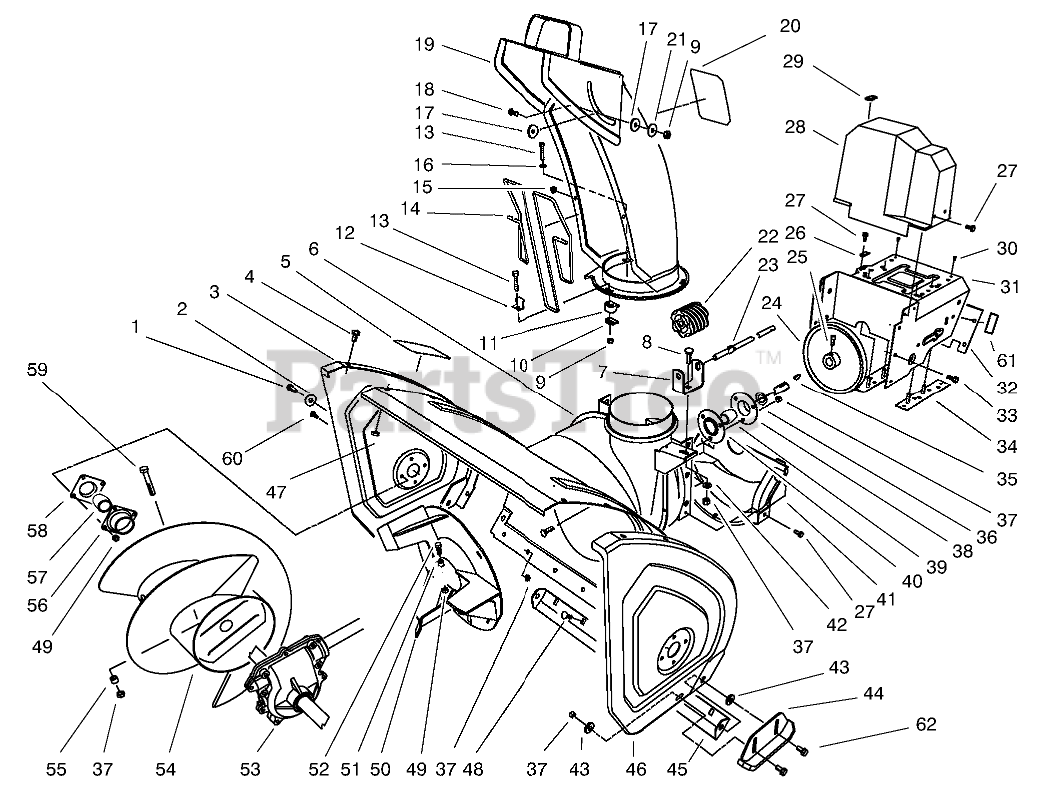

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

2

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

3

Toro 66-7821

Plate-Side
(Superseded to 66-7821-01)

$224.99

$

Usually ships in 3-6 days

0

4

Toro 3234-28

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$10.99

$

In Stock, only 3 left!

0

Toro 94-2568

DECAL-WARNING, AUGER (only on: 38053)

Note: Not illustrated

$10.99

$

In Stock, only 3 left!

0

6

Toro 62-0722

Housing-28"
(Superseded to 62-0722-01)

$

$

Not available

7

Toro 63-2180

BRACKET-WORM, CHUTE

$

$

Not available

8

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 63-2670

PLATE-RETAINER, CHUTE

$1.99

$

In Stock, Qty 20+

0

11

Toro 62-1430

RETAINER-CHUTE

$2.99

$

In Stock, Qty 8

0

12

Toro 63-3130

CLIP-GUARD, CHUTE

$2.49

$

In Stock, Qty 20+

0

13

Toro 3274-13

SCREW-HSH

$3.49

$

In Stock, Qty 20+

0

14

Toro 63-3020

GUARD-CHUTE

$

$

Not available

15

Toro 3290-326

NUT-PUSH

$5.49

$

Usually ships in 3-6 days

0

16

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 63-2900

WASHER-PLASTIC

$1.99

$

In Stock, only 3 left!

0

18

Toro 32122-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

19

Toro 62-0840

Assembly
(Superseded to 62-0840-03)

$

$

Not available

20

Toro 94-8079

DECAL-DANGER (only on: 38078)

$11.99

$

Usually ships in 3-6 days

0

Toro 94-2559

DECAL - DANGER

Note: Not illustrated

$

$

Not available

21

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

22

Toro 62-0820

GEAR-WORM

$

$

Not available

23

Toro 62-1720

ROD-CHUTE, LOWER

$28.99

$

In Stock, only 1 left!

0

24

Toro 62-1300

PULLEY-IMPELLER
(Superseded to 136-7119)

$50.99

$

In Stock, only 1 left!

0

25

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

26

Toro 63-2300

RETAINER-CABLE

$5.49

$

Usually ships in 3-6 days

0

27

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

28

Toro 63-2080

COVER-BELT, UPPER

$

$

Not available

29

Toro 63-3290

COVER-CABLE

$4.49

$

In Stock, Qty 5

0

30

Toro 3269-23

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

31

Toro 66-6980

Frame-Engine
(Superseded to 66-6980-01)

$

$

Not available

32

Toro 62-1440

Cover-Frame, Engine
(Superseded to 62-1440-01)

$

$

Not available

33

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

34

Toro 66-4110

CONTROL COVER

$

$

Currently unavailable

Toro 66-4100

LATCH-CLUTCH SOLENOID

Note: Not illustrated

$

$

Currently unavailable

35

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

36

Toro 252-80

WASHER-THRUST

$9.99

$

In Stock, only 4 left!

0

37

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

38

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 10

0

39

Toro 63-3450

BEARING-BALL

$23.99

$

In Stock, Qty 11

0

40

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 11

0

41

Toro 68-8410

COVER-BELT, LOWER

$98.99

$

Usually ships in 3-6 days

0

42

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

43

Toro 52-2861

WASHER

$1.49

$

In Stock, Qty 14

0

44

Toro 74-1440

Skid
(Superseded to 74-1440-01)

$50.99

$

In Stock, only 2 left!

0

45

Toro 66-7760

Blade-Scraper
(Superseded to 66-7760-01)

$

$

Not available

46

Toro 66-7831

Plate-Side
(Superseded to 66-7831-01)

$224.99

$

Usually ships in 3-6 days

0

47

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

48

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

49

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

50

Toro 66-7920

Impeller
(Superseded to 66-7920-03)

$

$

Not available

51

Toro 66-8010

SPACER

$4.99

$

In Stock, Qty 13

0

52

Toro 321-44

SCREW-HHF

$3.49

$

In Stock, Qty 18

0

53

Toro 74-1562

LH AUGER GEARCASE ASM

$

$

Not available

54

Toro 68-7452

Auger-R.H.
(Superseded to 68-7452-03)

$654.99

$

Usually ships in 3-6 days

0

Toro 68-7462

Auger-L.H.
(Superseded to 68-7462-03)

Note: Not illustrated

$

$

Not available

55

Toro 25-5090

SPACER-HUB, AUGER

$11.99

$

In Stock, Qty 8

0

56

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 4 left!

0

57

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 5

0

58

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

Usually ships in 3-6 days

0

59

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

60

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

61

Toro 68-9390

DECAL

$

$

Not available

62

Toro 3234-5

Screw-Hex Washer Hd. (Incl. Ref. #38-40)

$1.49

$

In Stock, Qty 5

0
