38591 (1232) - Toro 32" Power Shift Snow Thrower (SN: 069000001 - 069999999) (1996) ENGINE, TRANSMISSION DRIVE ASM Parts Diagram

32" Power Shift Snow Thrower

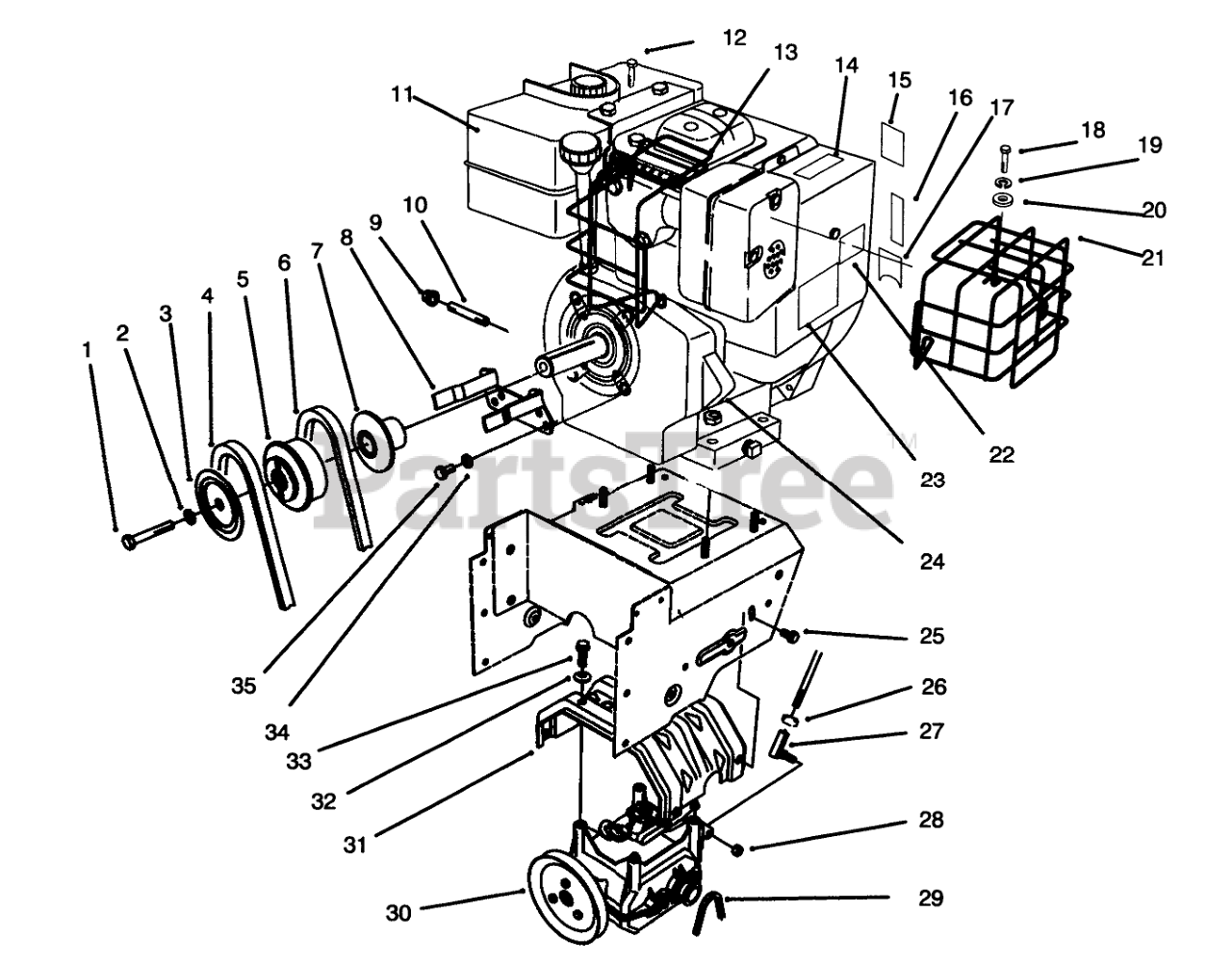

ENGINE, TRANSMISSION DRIVE ASM Parts Diagram

  • Title
1

Toro 3212-8

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

2

Toro 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Toro 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

4

Toro 63-2967

V-BELT

$31.99

$

In Stock, only 1 left!

0

5

Toro 62-0930

PULLEY-ENGINE, CENTER

$80.99

$

Usually ships in 3-6 days

0

6

Toro 63-2955

V-BELT, TRACTION

$28.99

$

In Stock, only 1 left!

0

7

Toro 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

8

Toro 68-7510

Guide-Belt
(Superseded to 68-7510-03)

$

$

Not available

9

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

10

Toro 289-45

NIPPLE-PIPE

$23.99

$

Usually ships in 3-6 days

0

11

Engine-Tecumseh Model-OHS120-222023/24E

$

$

Not available

12

Toro 93-8049

Screw/washer

$

$

Not available

13

Toro 94-2764

Guard-Muffler

$

$

Not available

14

Toro 63-2310

DECAL-HOT SURFACE, WARNING
(Superseded to 94-2576)

$

$

Not available

15

Toro 94-2572

DECAL - PRIMER

$

$

Not available

16

Toro 63-2340

DECAL - THROTTLE, INT'L

$

$

Not available

17

Toro 63-2360

DECAL - CHOKE

$

$

Not available

18

Toro 93-8048

SCREW (only on: 38053)

$

$

Not available

19

Toro 93-8039

Washer-Lock

$

$

Not available

20

Toro 93-8038

Washer-Flat

$

$

Not available

21

Toro 94-2765

Guard-Muffler, Model 38591

$

$

Not available

22

Toro 66-6840

DECAL-WARNING, HOT SURFACE

$80.99

$

Usually ships in 3-6 days

0

23

Toro 93-1265

DECAL-SURFACE, HOT

$8.49

$

Usually ships in 3-6 days

0

24

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

25

Toro 3234-7

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

26

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

27

Toro 63-2640

JOINT-BALL

$

$

Not available

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

29

Toro 63-2930

CHAIN

$

$

Not available

30

Toro 66-8030

TRACTION GEARCASE ASM

$2189.99

$

Usually ships in 3-6 days

0

31

Toro 63-2990

Frame-Transmission
(Superseded to 63-2990-03)

$

$

Not available

32

Toro 3290-461

WASHER-SPRING

$5.49

$

In Stock, only 2 left!

0

33

Toro 11-0590

SCREW-HWHTF
(Superseded to 32144-102)

$3.49

$

Usually ships in 3-6 days

0

34

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

35

Toro 3210-1

SCREW-HH

$7.99

$

In Stock, only 2 left!

0

Toro 2210-250

SCREW-HH

$

$

Not available
