38590 (1232) - Toro 32" Power Shift Snow Thrower (SN: 099000001 - 099999999) (1999) HOUSING ASSEMBLY Parts Diagram

32" Power Shift Snow Thrower

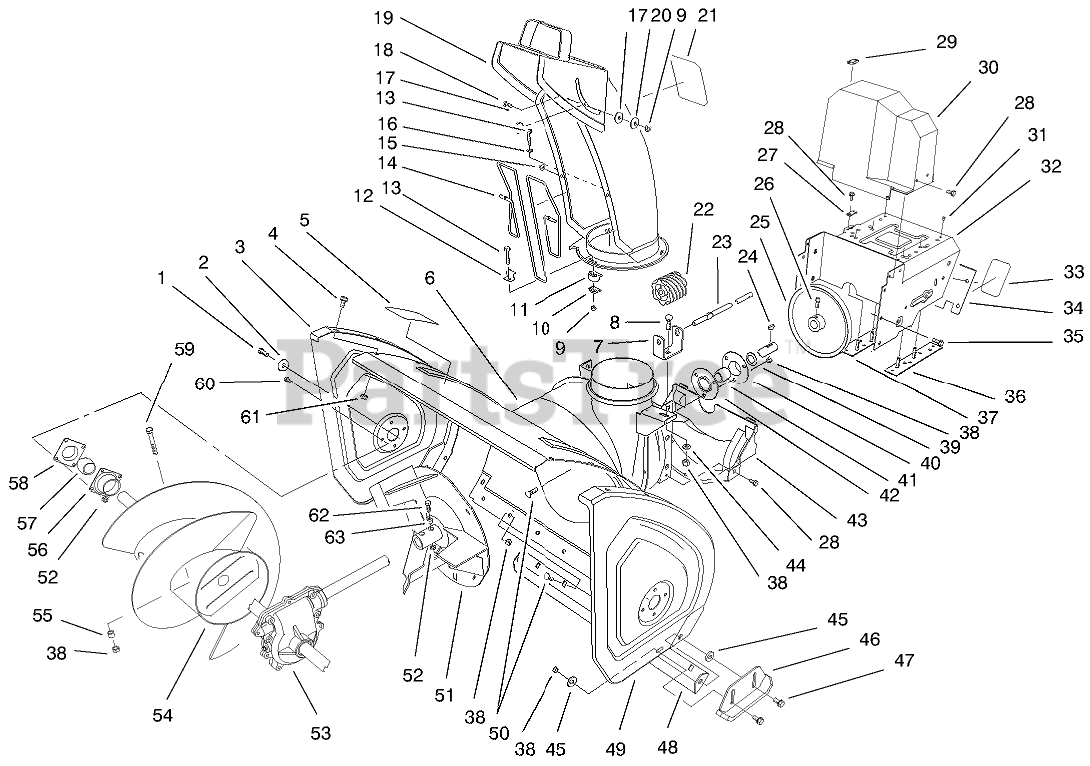

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

2

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

3

Toro 66-7821-01

PLATE-SIDE, RH

$193.99

$

Usually ships in 3-6 days

0

4

Toro 3234-28

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Toro 53-7670

DECAL-WARNING, AUGER
(Superseded to 94-2568)

$8.49

$

In Stock, only 3 left!

0

5

Toro 94-2568

DECAL-WARNING, AUGER (only on: 38053)

$8.49

$

In Stock, only 3 left!

0

6

Toro 62-0722-01

HOUSING

$1844.99

$

Usually ships in 3-6 days

0

7

Toro 63-2180

BRACKET-WORM, CHUTE

$20.99

$

Usually ships in 3-6 days

0

8

Toro 3230-2

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

9

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 63-2670

PLATE-RETAINER, CHUTE

$1.99

$

In Stock, Qty 20+

0

11

Toro 62-1430

RETAINER-CHUTE

$2.99

$

In Stock, Qty 14

0

12

Toro 63-3130

CLIP-GUARD, CHUTE

$1.99

$

In Stock, Qty 20+

0

13

Toro 3274-13

SCREW-HSH

$3.49

$

In Stock, Qty 20+

0

14

Toro 63-3020

GUARD-CHUTE

$44.99

$

Usually ships in 3-6 days

0

15

Toro 3290-326

NUT-PUSH

$4.99

$

Usually ships in 3-6 days

0

16

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 63-2900

WASHER-PLASTIC

$1.49

$

In Stock, only 3 left!

0

18

Toro 32122-32

SCREW

$2.49

$

Usually ships in 3-6 days

0

19

Toro 62-0840-03

CHUTE ASM

$

$

Not available

20

Toro 3256-61

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

21

Toro 94-8079

DECAL-DANGER (only on: 38078)

$10.99

$

Usually ships in 3-6 days

0

21

Toro 94-2559

DECAL - DANGER

$

$

Not available

22

Toro 62-0820

GEAR-WORM

$

$

Not available

23

Toro 62-1720

ROD-CHUTE, LOWER

$24.99

$

In Stock, only 1 left!

0

24

Toro 3257-23

KEY-WOODRUFF

$7.49

$

In Stock, Qty 7

0

25

Toro 62-1300

PULLEY-IMPELLER
(Superseded to 136-7119)

$50.99

$

In Stock, only 1 left!

0

26

Toro 3242-4

SCREW-SET, SQH

$2.99

$

In Stock, only 2 left!

0

27

Toro 63-2300

RETAINER-CABLE

$4.49

$

Usually ships in 3-6 days

0

28

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

29

Toro 63-3290

COVER-CABLE

$3.99

$

In Stock, Qty 5

0

30

Toro 63-2080

COVER-BELT, UPPER

$

$

Not available

31

Toro 3269-23

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

32

Toro 66-6980-01

ENGINE FRAME ASM

$

$

Not available

33

Toro 68-9390

DECAL

$

$

Not available

34

Toro 62-1440-01

COVER-FRAME, ENGINE

$40.99

$

Usually ships in 3-6 days

0

35

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

36

Toro 68-4110

LH FRAME PLATE ASM

$41.99

$

Usually ships in 3-6 days

0

37

Toro 68-4100

RH FRAME PLATE ASM

$

$

Not available

38

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

39

Toro 252-80

WASHER-THRUST

$8.99

$

In Stock, Qty 9

0

40

Toro 26-6110

FLANGE-CUP, BEARING

$6.49

$

In Stock, Qty 17

0

41

Toro 63-3450

BEARING-BALL

$22.99

$

In Stock, Qty 17

0

42

Toro 26-6120

FLANGE-CUP, BEARING

$4.49

$

In Stock, Qty 16

0

43

Toro 68-8410

COVER-BELT, LOWER

$94.99

$

Usually ships in 3-6 days

0

44

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

45

Toro 52-2861

WASHER

$1.49

$

In Stock, Qty 18

0

46

Toro 74-1440-01

SKID ASM

$43.99

$

In Stock, only 2 left!

0

47

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 16

0

48

Toro 66-7760-01

BLADE-SCRAPER

$

$

Not available

49

Toro 66-7831-01

PLATE-SIDE, LH

$193.99

$

Usually ships in 3-6 days

0

50

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

51

Toro 66-7920-03

IMPELLER-4 BLADE

$

$

Not available

52

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

53

Toro 74-1562

LH AUGER GEARCASE ASM

$

$

Not available

54

Toro 68-7452-03

AUGER, RH

$559.99

$

Usually ships in 3-6 days

0

54

Toro 68-7462-03

AUGER, LH

$

$

Not available

55

Toro 25-5090

SPACER-HUB, AUGER

$10.99

$

In Stock, Qty 8

0

56

Toro 20-0990

BEARING-FLANGE, FRONT

$11.99

$

In Stock, only 2 left!

0

57

Toro 20-0980

BEARING

$22.99

$

In Stock, Qty 7

0

58

Toro 20-1000

BEARING-FLANGE, REAR

$11.99

$

In Stock, only 2 left!

0

59

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

60

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

61

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 7

0

62

Toro 321-44

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

63

Toro 66-8010

SPACER

$4.99

$

In Stock, Qty 13

0
