38590 (1232) - Toro 32" Power Shift Snow Thrower (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY Parts Diagram

32" Power Shift Snow Thrower

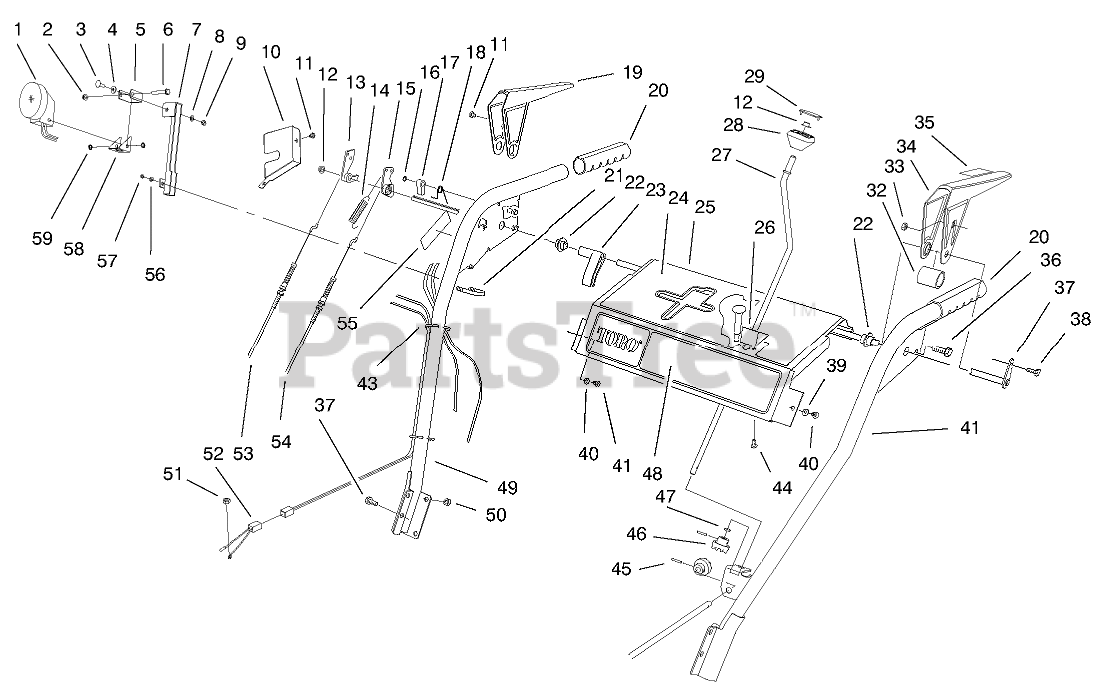

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 54-9871

HEADLAMP ASM

$

$

Not available

2

Toro 32128-35

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

3

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

4

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Toro 218-556

BRACKET

$

$

Not available

6

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

7

Toro 68-7110-03

LIGHT MOUNT ASM

$126.99

$

Usually ships in 3-6 days

0

8

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

9

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

10

Toro 63-2170-03

COVER-LOCK, LEVER

$

$

Not available

11

Toro 2210-250

SCREW-HH

$

$

Not available

12

Toro 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

13

Toro 62-0300

TANG-LOCKING

$

$

Not available

14

Toro 88-0810

SPRING-EXTENSION

$24.99

$

Usually ships in 3-6 days

0

15

Toro 62-0290

CAM-RELEASE

$

$

Not available

16

Toro 32151-66

E-RING-RETAINER

$

$

Not available

17

Toro 62-0280

LATCH-LOCKING

$

$

Not available

18

Toro 63-2910

SPRING-TORSION

$

$

Not available

19

Toro 62-1050-03

LEVER-TRACTION, RH

$59.99

$

Usually ships in 3-6 days

0

20

Toro 66-7850

GRIP-HANDLE

$23.99

$

Usually ships in 3-6 days

0

21

Toro 68-7140

U-BOLT

$

$

Not available

22

Toro 62-1070

BUSHING-LEVER

$3.99

$

Usually ships in 3-6 days

0

23

Toro 62-1640

LEVER-TRIP

$

$

Not available

24

Toro 99-3230

DECAL-PANEL, TOP

$

$

Not available

24

Toro 99-3229

DECAL-CONTROL

$

$

Not available

25

Toro 99-5972

CONTROL PANEL/DECAL ASM (38590)

$272.99

$

Usually ships in 3-6 days

0

25

Toro 99-5973

Control Plate ASM, Welded (Model 38591)

$

$

Not available

26

Toro 62-1490

PLATE-GUIDE

$7.99

$

Usually ships in 3-6 days

0

27

Toro 63-2160

CRANK-ROD, CHUTE

$

$

Not available

28

Toro 62-1320

KNOB-CONTROL, CHUTE

$27.99

$

Usually ships in 3-6 days

0

29

Toro 62-1520

COVER-KNOB

$

$

Not available

32

Toro 63-3380

SPACER-LEVER, TRACTION

$

$

Not available

33

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 62-1060-03

LEVER-TRACTION, LH

$

$

Not available

35

Toro 63-3050

DECAL-LEVER

$

$

Not available

36

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

37

Toro 63-2030

CROSS ROD ASM

$112.99

$

Usually ships in 3-6 days

0

38

Toro 3290-359

SCREW-HWH

$

$

Not available

39

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

40

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

41

Toro 66-8091-03

LH HANDLE ASM

$

$

Not available

43

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

44

Toro 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

0

45

Toro 32121-50

PIN-SPRING

$3.49

$

In Stock, only 3 left!

0

46

Toro 62-1460

GEAR-UNIVERSAL

$

$

Not available

47

Toro 62-1230

WASHER-RUBBER

$6.99

$

In Stock, Qty 7

0

48

Toro 93-8029

DECAL - PANEL FRONT

$

$

Not available

49

Toro 62-1381-03

RH Handle ASM, 24"-32"
(Superseded to 100-3597)

$

$

Not available

50

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

51

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

52

Toro 54-9810

WIRE ASM

$24.99

$

Usually ships in 3-6 days

0

53

Toro 63-2700

CABLE-IMPELLER

$63.99

$

In Stock, only 4 left!

0

54

Toro 63-2710

CABLE-TRACTION

$96.99

$

Usually ships in 3-6 days

0

55

Toro 66-6860

DECAL-WARNING

$

$

Not available

55

Toro 94-2575

DECAL-ADJUSTMENT

$

$

Not available

56

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

57

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

58

Toro 218-554

TO BE DISCONTINED-NOT NEEDED ON PRODUCT

$

$

Not available

59

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0
