38590 (1232) - Toro 32" Power Shift Snow Thrower (SN: 089000001 - 089999999) (1998) CARBURETOR NO. 640105 Parts Diagram

32" Power Shift Snow Thrower

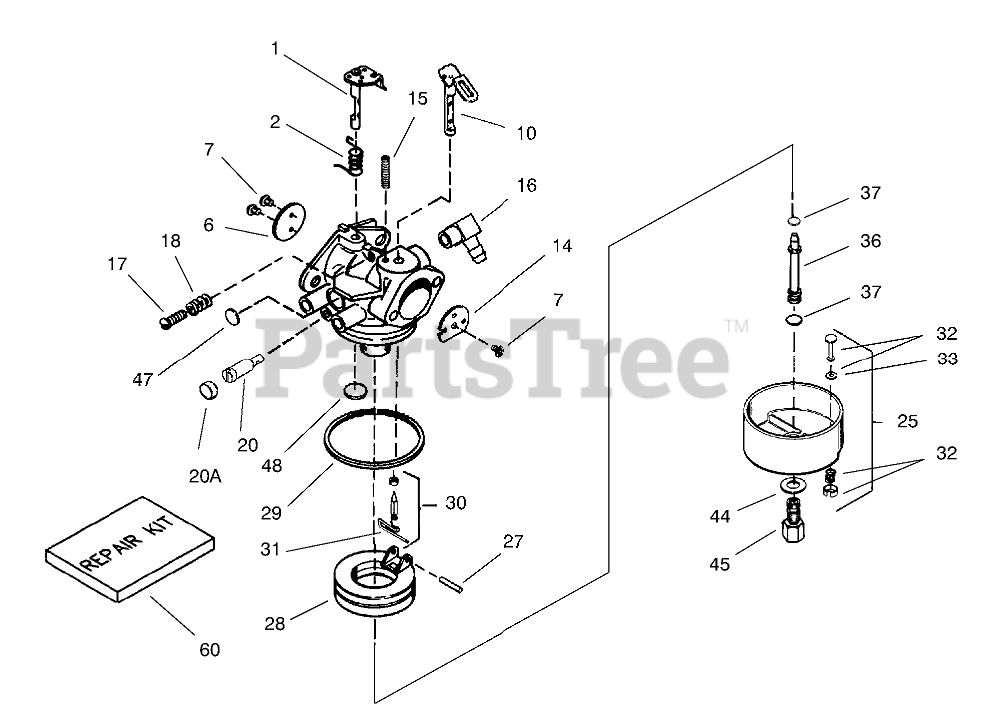

CARBURETOR NO. 640105 Parts Diagram

  • Title
1

Tecumseh 632512

Throttle-Shaft & Lever Asm
(Superseded to 632787)

Note: Original Tecumseh Part

$7.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631970

Spring-Return, Throttle

Note: Original Tecumseh Part

$4.49

$

Usually ships in 3-12 days

0

6

Tecumseh 640107

Throttle Shutter

Note: Original Tecumseh Part

$

$

Not available

7

Tecumseh 650506

Screw-Shutter

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 16

0

10

Tecumseh 632513

Choke Shaft & Lever ASM

Note: Original Tecumseh Part

$8.99

$

Usually ships in 3-12 days

0

14

Tecumseh 632514

Choke Shutter

Note: Original Tecumseh Part

$

$

Not available

15

Tecumseh 630735

Spring-Positioning, Choke

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632527

Fitting-Fuel

Note: Original Tecumseh Part

$8.49

$

In Stock, only 2 left!

0

17

Tecumseh 651025

Screw-Throttle Crack and Idle Speed

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Spring-Tension

Note: Original Tecumseh Part

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 640016

Screw-Restrictor, Idle

Note: Original Tecumseh Part

$9.49

$

In Stock, Qty 9

0

20A

Tecumseh 640053

Cap-Screw, Idle Restrictor

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 5

0

25

Tecumseh 632594A

Float Bowl ASM

Note: Original Tecumseh Part

$14.99

$

In Stock, only 1 left!

0

25

Tecumseh 631951

Float Bowl ASM

Note: Original Tecumseh Part

$17.99

$

In Stock, only 1 left!

0

27

Tecumseh 631024

Shaft-Float

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

Note: Original Tecumseh Part

$7.49

$

In Stock, Qty 10

0

29

Tecumseh 631028

O Ring-Bowl, Float
(Superseded to 631028A)

Note: Original Tecumseh Part

$2.49

$

In Stock, Qty 7

0

30

Tecumseh 631021

Inlet Needle, Seat and Clip ASM
(Superseded to 631021B)

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 19

0

31

Tecumseh 631022

Clip-Spring

Note: Original Tecumseh Part

$1.99

$

In Stock, only 4 left!

0

32

Tecumseh 27136

Bowl Drain ASM
(Superseded to 27136A)

Note: Original Tecumseh Part

$7.49

$

In Stock, only 1 left!

0

33

Tecumseh 27554

Gasket-Plunger, Drain

Note: Original Tecumseh Part

$1.49

$

In Stock, Qty 16

0

36

Tecumseh 640005

Tube-Nozzle, Main

Note: Original Tecumseh Part

$6.99

$

In Stock, Qty 5

0

37

Toro 63254

O-Ring, Main Nozzle Tube

Note:

$

$

Currently unavailable

40

Tecumseh 640106

High Spee Bowl Nut.

Note: Original Tecumseh Part

$7.49

$

In Stock, only 2 left!

0

44

Tecumseh 27110

Washer-Bowl Nut
(Superseded to 27110A)

Note: Original Tecumseh Part

$2.49

$

Usually ships in 3-12 days

0

47

Tecumseh 630748

Plug-Welch, Idle Mixture Well

Note: Original Tecumseh Part

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

Plug-Welch, Atmospheric Vent

Note: Original Tecumseh Part

$1.99

$

In Stock, Qty 5

0

60

Tecumseh 632347

Kit-Repair

Note: Original Tecumseh Part

$20.99

$

Usually ships in 3-12 days

0
