38590 (1232) - Toro 32" Power Shift Snow Thrower (SN: 079000001 - 079999999) (1997) ENGINE ASSEMBLIES OHSK 120-222023F AND 120-222024F Parts Diagram

32" Power Shift Snow Thrower

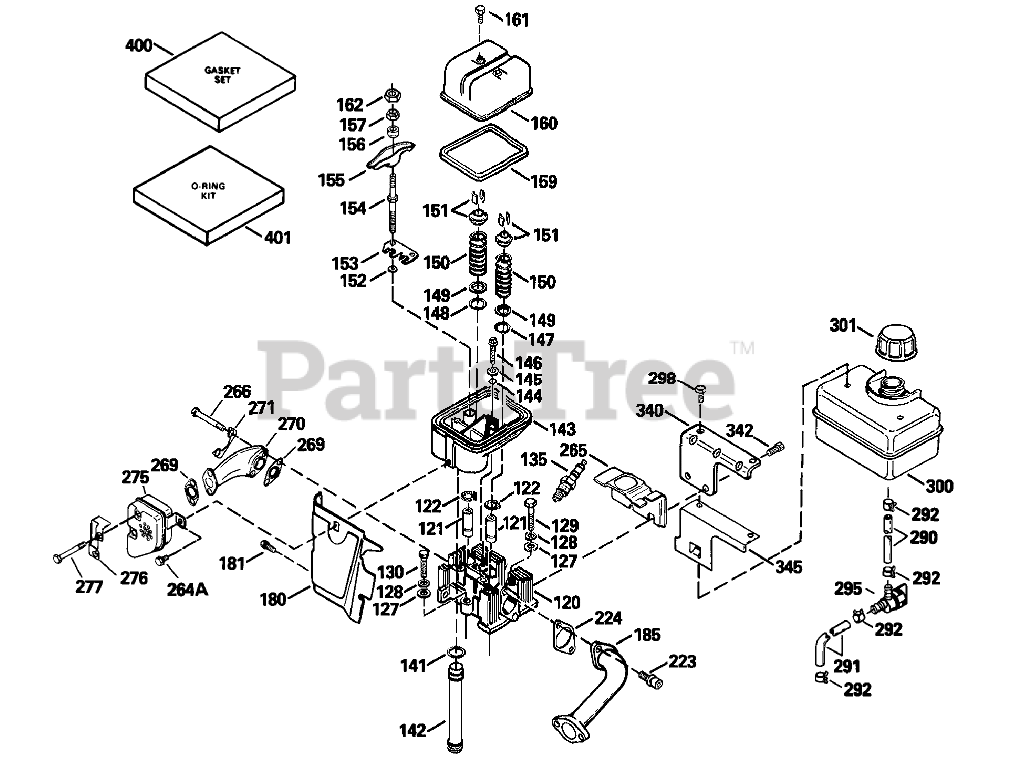

ENGINE ASSEMBLIES OHSK 120-222023F AND 120-222024F Parts Diagram

  • Title

120

Tecumseh 35307

Cylinder Head

$

$

Not available

121

Tecumseh 730218

Valve Guide Kit (Incl. Ref.# 2 of 122)

$24.99

$

In Stock, only 1 left!

0

122

Tecumseh 792035

Ring-Snap

$4.49

$

In Stock, Qty 13

0

127

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

128

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

$

$

Not available

129

Tecumseh 650746

Screw

$1.99

$

Usually ships in 3-12 days

0

130

Tecumseh 650692

Screw

$

$

Not available

135

Tecumseh 34046

Spark-Plug (RL86C)

$5.49

$

In Stock, only 4 left!

0

141

Tecumseh 33481

"O"Ring

$1.99

$

In Stock, only 3 left!

0

142

Tecumseh 35475

Push Rod Tube

$

$

Not available

143

Tecumseh 35310

55062 SNWTHWR ADN.W

$32.99

$

Usually ships in 3-12 days

0

144

Tecumseh 33484

"O"Ring

$1.99

$

In Stock, only 2 left!

0

145

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

146

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

147

Tecumseh 33509

"O"Ring

$3.99

$

In Stock, only 1 left!

0

148

Tecumseh 34410

O-Ring (Also Incl. in 401)

$3.99

$

Usually ships in 3-12 days

0

149

Tecumseh 33510

Cap-Valve Spring

$1.99

$

Usually ships in 3-12 days

0

150

Tecumseh 33507

Spring-Valve

$3.99

$

In Stock, only 1 left!

0

151

Tecumseh 33508

Keeper-Spring, Valve

$9.49

$

In Stock, only 2 left!

0

152

Tecumseh 35295

O-Ring (Also Incl. in 401)

$1.99

$

Usually ships in 3-12 days

0

153

Tecumseh 35296

Guide-Push Rod

$6.49

$

Usually ships in 3-12 days

0

154

Tecumseh 650878

Rocker Arm Stud

$5.49

$

Usually ships in 3-12 days

0

155

Tecumseh 35297

Arm-Rocker
(Superseded to 730221A)

$37.99

$

Usually ships in 3-12 days

0

156

Tecumseh 35298

Bearing-Rocker Arm

$1.99

$

Usually ships in 3-12 days

0

157

Tecumseh 28264

Lock Nut (Incl. Ref.# 162)(Also Incl. in 401)

$3.99

$

In Stock, only 2 left!

0

159

Tecumseh 35299B

O-Ring (Incl. 2 of 161)(Also Incl. in 401)

$11.99

$

Usually ships in 3-12 days

0

160

Tecumseh 35300

Housing-Rocker Arm
(Superseded to 35300A)

$

$

Not available

161

Tecumseh 650879

Screw

$1.99

$

Usually ships in 3-12 days

0

162

Tecumseh 650903

Jam Nut

$1.99

$

Usually ships in 3-12 days

0

180

Tecumseh 35301

Blower Housing Extension

$

$

Not available

181

Tecumseh 650128

Screw

$5.49

$

In Stock, only 1 left!

0

185

Tecumseh 35690

Intake Pipe

$50.99

$

In Stock, only 2 left!

0

223

Tecumseh 650971

Screw (T-30, 5/16-18 X 7/8)

$1.99

$

In Stock, only 4 left!

0

224

Tecumseh 33515A

Gasket-Pipe

$1.99

$

In Stock, only 3 left!

0

264A

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 13

0

265

Tecumseh 35290

Cover-Cylinder Head

$3.49

$

In Stock, only 1 left!

0

266

Tecumseh 650876

Screw (5/16-18 X 1-9/32)

$3.49

$

In Stock, only 2 left!

0

269

Tecumseh 35762

Gasket-Manifold, Exhaust

$1.99

$

In Stock, Qty 6

0

270

Tecumseh 35292

Exhaust Manifold

$

$

Not available

271

Tecumseh 35293

Plate-Locking

$5.49

$

In Stock, only 2 left!

0

275

Tecumseh 35294

Muffler
(Superseded to 37250)

$

$

Not available

276

Tecumseh 35348

Plate-Locking

$4.99

$

In Stock, only 2 left!

0

277

Tecumseh 650877

Screw (5/16-18 X 4-1/2)

$7.49

$

In Stock, Qty 7

0

290

Tecumseh 30962

Line-Fuel

$30.99

$

In Stock, Qty 7

0

291

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 5

0

292

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Valve-Shut Off, Fuel

$13.99

$

In Stock, Qty 11

0
