38590 (1232) - Toro 32" Power Shift Snow Thrower (SN: 069000001 - 069999999) (1996) TECUMSEH MODEL NO. OHSK120-222023E/24E Parts Diagram

32" Power Shift Snow Thrower

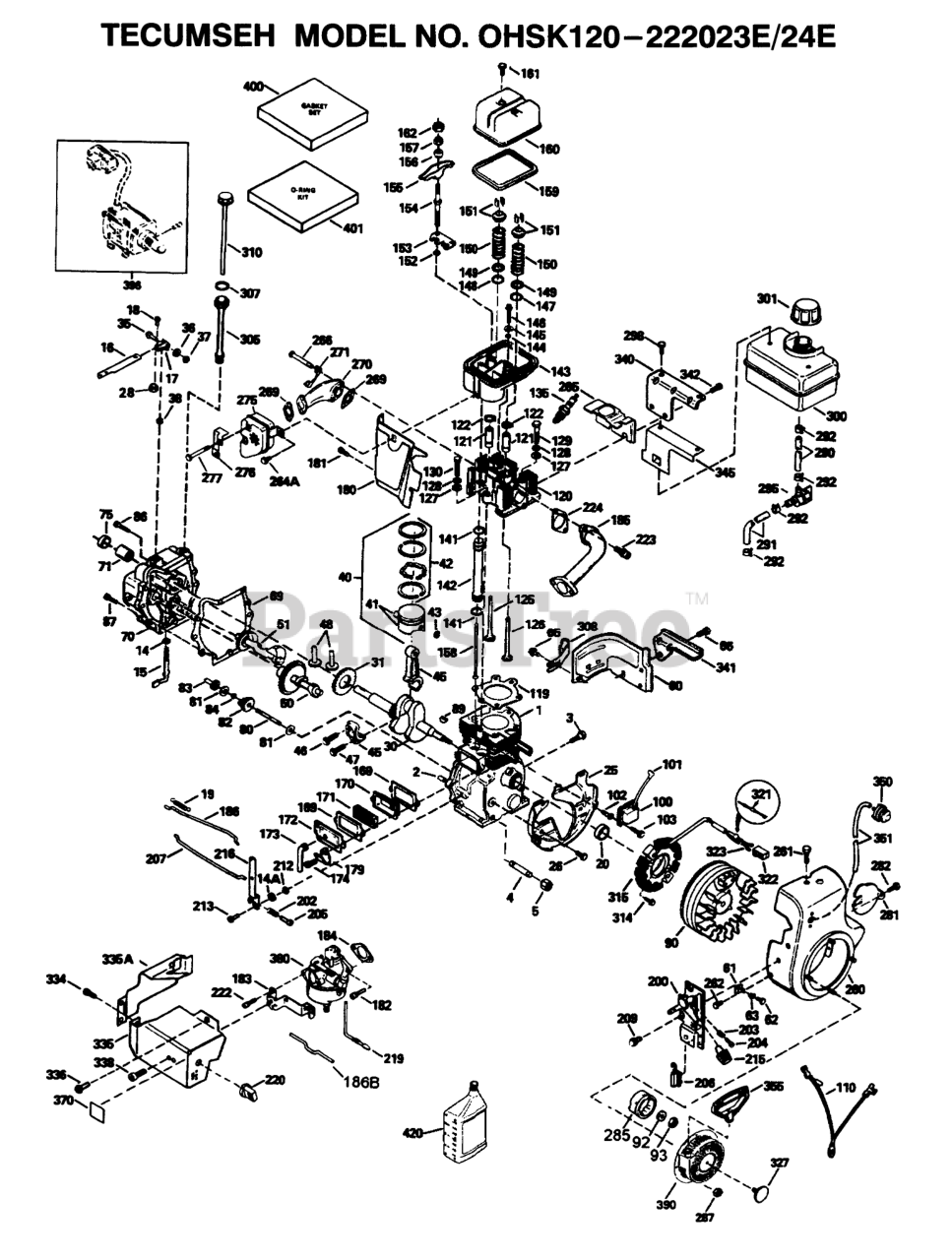

TECUMSEH MODEL NO. OHSK120-222023E/24E Parts Diagram

  • Title

Engine-Kohler OHSK120-222023E Used On Model No.38591

Note: Not illustrated

$

$

Not available

Engine-Kohler OHSK120-222024E Used On Model No.38590

Note: Not illustrated

$

$

Not available

1

Tecumseh 35677A

Cylinder (Incl. Ref.#2, 20, 72 & 80)

$165.99

$

Usually ships in 3-12 days

0

2

Tecumseh 27652

Pin-Dowel

$2.49

$

Usually ships in 3-12 days

0

3

Tecumseh 650820

Screw (1/4-20x1/2)

$3.99

$

In Stock, Qty 15

0

4

Nipple-Pipe

$

$

Not available

5

Tecumseh 30969

Cap-Pipe

$5.49

$

In Stock, only 1 left!

0

14

Tecumseh 28277

Washer-Flat

$1.99

$

In Stock, only 4 left!

0

14A

Tecumseh 28558

Washer

$1.99

$

Usually ships in 3-12 days

0

15

Toro 335685

Rod-Governor (Incl. Ref.#14 & 38)

$

$

Currently unavailable

16

Tecumseh 35686

Governor Lever
(Superseded to 35686A)

$1.99

$

In Stock, only 1 left!

0

17

Tecumseh 29916

Clamp-Lever, Governor

$1.99

$

In Stock, only 2 left!

0

18

Tecumseh 650548

Screw
(Superseded to 651018)

$1.99

$

In Stock, Qty 8

0

19

Tecumseh 35688

Throttle Spring

$3.99

$

In Stock, only 1 left!

0

20

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

25

Tecumseh 36460

Baffle-Housing, Blower
(Superseded to 37853)

$11.99

$

In Stock, only 1 left!

0

26

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

28

Tecumseh 30322

Nut-Lock

$1.99

$

Usually ships in 3-12 days

0

30

Tecumseh 36706

Crankshaft

$

$

Not available

31

Tecumseh 35327

Counterbalance Gear

$18.99

$

Usually ships in 3-12 days

0

35

Tecumseh 29826

Screw

$1.99

$

In Stock, only 4 left!

0

36

Tecumseh 29918

Washer-Lock

$1.99

$

In Stock, Qty 5

0

37

Tecumseh 29216

Nut-Lock

$1.99

$

In Stock, only 3 left!

0

38

Tecumseh 29642

Ring-Retaining

$100.99

$

In Stock, only 2 left!

0

40

Tecumseh 35776

Set-Piston, Pin & Ring (Std.
(Superseded to 35776B)

$54.99

$

Usually ships in 3-12 days

0

Tecumseh 35777

Piston, Pin & Ring Set (.010)
(Superseded to 35777A)

Note: Not illustrated

$

$

Not available

Tecumseh 35778

55079/55080 PLYMOUT
(Superseded to 35778A)

Note: Not illustrated

$158.99

$

Usually ships in 3-12 days

0

41

Tecumseh 35773

Set-Piston & Pin Asm (Std.) (Incl. Ref. #43)
(Superseded to 35776B)

$54.99

$

Usually ships in 3-12 days

0

Tecumseh 35774

Set-Piston & Pin Asm .010" O.S. (Incl. Ref. #43)
(Superseded to 35777A)

Note: Not illustrated

$

$

Not available

Tecumseh 35775

Set-Piston & Pin Asm .020" O.S. (Incl. Ref. #43)
(Superseded to 35778A)

Note: Not illustrated

$158.99

$

Usually ships in 3-12 days

0

42

Tecumseh 35779

Ring Set (STD)

$44.99

$

In Stock, only 1 left!

0

Tecumseh 35780

Ring Set (.010)

Note: Not illustrated

$

$

Not available

Tecumseh 35781

Ring Set (.020)

Note: Not illustrated

$

$

Not available

43

Tecumseh 35772

Retaining Ring-Piston Pin

$1.99

$

In Stock, only 4 left!

0

45

Tecumseh 35681

Connecting-Rod Asm (Incl. Ref. #46 & 47)
(Superseded to 36898A)

$52.99

$

In Stock, only 1 left!

0

46

Tecumseh 650908

Bolt-Rod
(Superseded to 651063)

$1.99

$

In Stock, only 3 left!

0

47

Tecumseh 650882

Bolt-Rod
(Superseded to 651033A)

$

$

Not available

48

Tecumseh 35313

Lifter-Valve
(Superseded to 35313A)

$

$

Not available

50

Tecumseh 35682A

Camshaft

$105.99

$

Usually ships in 3-12 days

0

51

Tecumseh 35315A

Counterbalance Weight

$95.99

$

Usually ships in 3-12 days

0

60

Tecumseh 35316A

Extension-Housing, Blower

$3.99

$

Usually ships in 3-12 days

0

61

Tecumseh 34126

Bracket

$1.99

$

Usually ships in 3-12 days

0

62

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 2 left!

0

63

Tecumseh 28545

Grommet

$1.99

$

In Stock, only 4 left!

0

65

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

66

Tecumseh 650561

Screw (1/4-20x19/32)

$1.99

$

In Stock, only 2 left!

0

69

Tecumseh 35683

55072/75/86/89 TWO

$3.99

$

Usually ships in 3-12 days

0

70

Tecumseh 35684A

Cover-Cylinder (Incl. Ref. #14, 15, 38, 71 & 75)
(Superseded to 35684B)

$

$

Not available

71

Tecumseh 35377

Bushing-Crankshaft

$11.99

$

In Stock, only 3 left!

0

75

Tecumseh 35319

Seal-Oil

$4.99

$

In Stock, only 2 left!

0

80

Tecumseh 35751

Governor Shaft

$

$

Not available

81

Tecumseh 35479

Washer
(Superseded to 651080)

$1.99

$

In Stock, Qty 8

0

82

Tecumseh 35321

Gear-Asm Governor

$9.49

$

In Stock, only 1 left!

0

83

Tecumseh 35322

Governor Spool

$1.99

$

In Stock, Qty 5

0

84

Tecumseh 29193

Ring-Retaining

$1.99

$

In Stock, only 4 left!

0

86

Tecumseh 650833

Screw (1/4-20x1-3/16)

$1.99

$

Usually ships in 3-12 days

0

87

Tecumseh 650832

Screw (1/4-20x1-11/16)

$

$

Not available

89

Tecumseh 32589

Key-Flywheel

$1.49

$

In Stock, only 4 left!

0

90

Tecumseh 611094

Flywheel (W/Ring Gear)

$

$

Not available

Tecumseh 611093

Flywheel ASM

Note: Not illustrated

$

$

Not available

93

Tecumseh 650881

Nut-Flywheel

$1.99

$

Usually ships in 3-12 days

0

100

Tecumseh 35135

Solid State ASM
(Superseded to 35135B)

$62.99

$

Usually ships in 3-12 days

0

101

Tecumseh 610118

Cover-Spark Plug

$6.49

$

In Stock, only 2 left!

0

102

Tecumseh 650872

Stud
(Superseded to 651024)

$3.99

$

In Stock, only 2 left!

0

103

Tecumseh 651007

Screw (T-15, 10-24 x 15/16)

$1.99

$

In Stock, only 4 left!

0

110

Tecumseh 35253

Ground Wire

$6.49

$

In Stock, only 2 left!

0

119

Tecumseh 35306A

Cylinder Head Gasket

$11.99

$

In Stock, only 1 left!

0

120

Tecumseh 35307

Cylinder Head

$

$

Not available

121

Tecumseh 730218

Kit-Valve Grind (Incl. 2 of Ref. #122)

$24.99

$

In Stock, only 1 left!

0

122

Toro 792036

Ring-Retaining

$

$

Currently unavailable

125

Tecumseh 35308

Exhaust Valve (Std.)

$70.99

$

Usually ships in 3-12 days

0

Tecumseh 35433

Exhaust Valve (1/32)

Note: Not illustrated

$119.99

$

Usually ships in 3-12 days

0

126

Tecumseh 35309

Intake Valve (Std.)

$33.99

$

Usually ships in 3-12 days

0

Tecumseh 35432

Intake Valve (1/32)

Note: Not illustrated

$96.99

$

Usually ships in 3-12 days

0

127

Tecumseh 650691

Washer-Flat

$1.99

$

Usually ships in 3-12 days

0

128

Tecumseh 650690

Washer-Belleville
(Superseded to 730324)

$9.99

$

Usually ships in 3-12 days

0

129

Tecumseh 650746

Screw

$1.99

$

Usually ships in 3-12 days

0

130

Tecumseh 650692

Screw

$

$

Not available

135

Tecumseh 34046

Spark-Plug (RL86C)

$4.99

$

In Stock, only 3 left!

0

141

Tecumseh 33481

"O"Ring

$1.99

$

Usually ships in 3-12 days

0

142

Tecumseh 35475

Push Rod Tube

$

$

Not available

143

Tecumseh 35310

55062 SNWTHWR ADN.W

$32.99

$

Usually ships in 3-12 days

0

144

Tecumseh 33484

"O"Ring

$1.99

$

In Stock, only 2 left!

0

145

Tecumseh 650168

Washer

$1.99

$

Usually ships in 3-12 days

0

146

Tecumseh 32610A

Bolt-Rod, Connecting

$1.99

$

In Stock, Qty 6

0

147

Tecumseh 33509

"O"Ring

$3.99

$

In Stock, only 1 left!

0

148

Tecumseh 34110

"O"Ring
(Superseded to 34110A)

$

$

Not available

149

Tecumseh 33510

Cap-Valve Spring

$1.99

$

Usually ships in 3-12 days

0

150

Tecumseh 33507

Spring-Valve

$3.99

$

In Stock, only 1 left!

0

151

Tecumseh 33508

Keeper-Spring, Valve

$9.49

$

In Stock, only 2 left!

0

152

Tecumseh 32595

"O"Ring

$

$

Not available

153

Tecumseh 35296

Guide-Push Rod

$6.49

$

Usually ships in 3-12 days

0

154

Tecumseh 650878

Rocker Arm Stud

$5.49

$

Usually ships in 3-12 days

0

155

Tecumseh 35297

Arm-Rocker
(Superseded to 730221A)

$37.99

$

Usually ships in 3-12 days

0

156

Tecumseh 35298

Bearing-Rocker Arm

$1.99

$

Usually ships in 3-12 days

0

157

Tecumseh 28264

Nut

$3.99

$

In Stock, only 2 left!

0

158

Tecumseh 35466

Rod-Push

$14.99

$

In Stock, only 2 left!

0

159

Tecumseh 35299B

"O"Ring

$11.99

$

Usually ships in 3-12 days

0

160

Tecumseh 35300

Housing-Rocker Arm
(Superseded to 35300A)

$

$

Not available

161

Tecumseh 650879

Screw

$1.99

$

Usually ships in 3-12 days

0

162

Tecumseh 650903

Jam Nut

$1.99

$

Usually ships in 3-12 days

0

169

Tecumseh 27896A

Gasket-Cover, Valve

$1.49

$

In Stock, Qty 10

0

170

Tecumseh 28423

Body-Breather

$13.99

$

In Stock, only 1 left!

0

171

Tecumseh 28424

Element-Breather

$3.99

$

In Stock, only 3 left!

0

172

Tecumseh 28425

Cover-Valve

$7.49

$

In Stock, only 1 left!

0

173

Tecumseh 35350

Tube-Breather

$6.49

$

Usually ships in 3-12 days

0

174

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

179

Tecumseh 30593

Retainer Clip

$1.99

$

In Stock, only 1 left!

0

180

Tecumseh 35301

Blower Housing Extension

$

$

Not available

181

Tecumseh 650128

Screw

$5.49

$

Usually ships in 3-12 days

0

182

Tecumseh 650517

Screw (T-30, 1/4-20 X 27-32)

$1.99

$

In Stock, only 1 left!

0

183

Tecumseh 34583A

Bracket-Choke

$12.99

$

In Stock, Qty 6

0

184

Tecumseh 33263

Gasket-Carburetor To Intake Pipe

$1.49

$

In Stock, Qty 20+

0

185

Tecumseh 35690

Intake Pipe

$50.99

$

In Stock, only 2 left!

0

186

Tecumseh 35691

Governor Link

$2.49

$

In Stock, only 1 left!

0

186B

Tecumseh 36653

Spring-Choke

$1.99

$

In Stock, only 2 left!

0

192

Tecumseh 650880

Washer-Belleville

$1.99

$

In Stock, only 3 left!

0

200

Tecumseh 35702

Bracket-Control (Incl. Ref. #203, 204 & 206)

$38.99

$

In Stock, only 1 left!

0

202

Tecumseh 36482

Compression Spring

$3.99

$

In Stock, only 1 left!

0

203

Tecumseh 31342

Spring-Compression

$5.99

$

In Stock, only 1 left!

0

204

Tecumseh 650549

Screw
(Superseded to 651029)

$1.99

$

In Stock, only 2 left!

0

205

Tecumseh 650777

Screw
(Superseded to 651019)

$1.99

$

In Stock, Qty 5

0

206

Tecumseh 610973

Terminal

$3.99

$

In Stock, Qty 5

0

207

Tecumseh 35692

Choke Link

$3.49

$

Usually ships in 3-12 days

0

209

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, only 3 left!

0

212

Tecumseh 30773A

Bushing

$

$

Not available

213

Tecumseh 650930

Screw

$

$

Not available

215

Tecumseh 35440

Knob-Control

$3.99

$

Usually ships in 3-12 days

0

216

Tecumseh 35679

Lever-Adjusting

$6.49

$

Usually ships in 3-12 days

0

219

Tecumseh 35689

Rod-Choke

$

$

Not available

220

Tecumseh 35438

Knob-Control

$3.99

$

In Stock, only 1 left!

0

222

Tecumseh 28820

Screw (10-32 x 1/2)
(Superseded to 651081)

$4.49

$

In Stock, only 3 left!

0

223

Tecumseh 650971

Screw (T-30, 5/16-18 X 7/8)

$1.99

$

In Stock, only 4 left!

0

224

Tecumseh 33515A

Gasket-Pipe

$1.99

$

In Stock, only 3 left!

0

260

Tecumseh 35694

Blower Housing
(Superseded to 35694A)

$74.99

$

Usually ships in 3-12 days

0

261

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

262

Tecumseh 29747B

Screw

$1.99

$

In Stock, Qty 9

0

264A

Tecumseh 30063

Screw

$1.99

$

In Stock, Qty 20+

0

265

Tecumseh 35290

Cover-Cylinder Head

$3.49

$

In Stock, only 1 left!

0

266

Tecumseh 650876

Screw (5/16-18 X 1-9/32)

$3.49

$

In Stock, only 3 left!

0

269

Tecumseh 35762

Gasket-Manifold, Exhaust

$1.99

$

In Stock, Qty 6

0

270

Tecumseh 35292

Exhaust Manifold

$

$

Not available

271

Tecumseh 35293

Plate-Locking

$5.49

$

In Stock, only 3 left!

0

275

Tecumseh 35294

Muffler
(Superseded to 37250)

$

$

Not available

276

Tecumseh 35348

Plate-Locking

$4.99

$

Usually ships in 3-12 days

0

277

Tecumseh 650877

Screw (5/16-18 X 4-1/2)

$7.49

$

In Stock, Qty 5

0

281

Tecumseh 33013

Screw

$3.99

$

Usually ships in 3-12 days

0

282

Tecumseh 650760

Screw (8-32 x 3/8)

$1.99

$

In Stock, only 2 left!

0

285

Tecumseh 35985B

Cup-Starter
(Superseded to 35985C)

$13.99

$

In Stock, only 1 left!

0

287

Tecumseh 29752

Nut and Lock Washer (1/4-28)

$1.99

$

In Stock, only 3 left!

0

290

Tecumseh 30962

Line-Fuel

$30.99

$

In Stock, Qty 6

0

291

Tecumseh 29774

Line-Fuel (8.62)

$34.99

$

In Stock, Qty 6

0

292

Tecumseh 26460

Clamp-Line, Fuel

$1.49

$

In Stock, Qty 20+

0

295

Tecumseh 35857

Valve-Shut Off, Fuel

$13.99

$

Usually ships in 3-12 days

0

298

Tecumseh 650665

Screw (1/4-15x7/8)

$1.99

$

In Stock, only 3 left!

0

300

Toro 314156A

Tank-Fuel (Incl. Ref. #292 & 301)

$

$

Currently unavailable

301

Tecumseh 36246

Cap-Fuel
(Superseded to 37844)

$5.99

$

In Stock, Qty 6

0

305

Tecumseh 35574

Tube-Fill, Oil

$5.49

$

In Stock, only 1 left!

0

307

Tecumseh 35499

O-Ring

$1.49

$

In Stock, only 3 left!

0

308

Tecumseh 35539

Clip-Tube, Fill

$1.99

$

Usually ships in 3-12 days

0

310

Tecumseh 35700

Dipstick

$7.49

$

Usually ships in 3-12 days

0

314

Tecumseh 650873

Screw (1/4-20 x 3/4)

$1.99

$

Usually ships in 3-12 days

0

315

Tecumseh 611104

Coil-Alternator OHSK120-222023E Only (Incl. Ref. #321-323)

$146.99

$

Usually ships in 3-12 days

0

315

Tecumseh 611111

Coil-Alternator OHSK120-222024E Only (Incl. Ref. #323)

$68.99

$

Usually ships in 3-12 days

0

321

Tecumseh 611161

Diode

$17.99

$

Usually ships in 3-12 days

0

322

Tecumseh 611142

Body-Connector

$3.99

$

Usually ships in 3-12 days

0

323

Tecumseh 611118

Terminal

$1.99

$

Usually ships in 3-12 days

0

327

Tecumseh 35392

Plug Starter

$1.99

$

Usually ships in 3-12 days

0

334

Tecumseh 650257

Screw (8-32 X 5/16)

$1.49

$

In Stock, Qty 17

0

335

Tecumseh 35698

Carburetor Cover

$

$

Not available

335A

Tecumseh 35693

Carburetor Cover

$

$

Not available

336

Tecumseh 650765

Screw (10-32x1/2)

$1.49

$

In Stock, only 4 left!

0

338

Tecumseh 650821

Screw (10-32 x 1/2)

$1.99

$

In Stock, only 3 left!

0

340

Tecumseh 35696

55073/76/87/90 SNWT
(Superseded to 35696A)

$21.99

$

Usually ships in 3-12 days

0

341

Tecumseh 35697

Bracket-Fuel Tank

$

$

Not available

342

Toro 792028

Screw (5/16-18 X 7/8)

$

$

Currently unavailable

345

Tecumseh 35699

Baffle-Heat

$

$

Not available

350

Tecumseh 570682

Primer-Asm
(Superseded to 570682A)

$10.99

$

In Stock, only 4 left!

0

351

Tecumseh 32180C

Line-Primer

$6.99

$

In Stock, only 4 left!

0

355

Tecumseh 590574

Handle-Starter, Mitten Grip

$5.49

$

Usually ships in 3-12 days

0

370

Tecumseh 36261

Decal-Lubrication

$

$

Not available

380

Tecumseh 632536

Carburetor (Incl. Ref. #184)
(Superseded to 640105)

$106.99

$

In Stock, only 1 left!

0

390

Tecumseh 590733

Starter-Rewind
(Superseded to 590789)

$87.99

$

In Stock, only 1 left!

0

396

Tecumseh 33329D

Starter-Electric (110 Volt)
(Superseded to 33329E)

$

$

Not available

400

Tecumseh 35331B

Gasket Set

$50.99

$

Usually ships in 3-12 days

0

401

Tecumseh 35332

O-Ring Kit

$21.99

$

In Stock, only 1 left!

0

420

Tecumseh 730226

Oil-Engine (SAE 5W30)
(Superseded to 730226B)

$13.99

$

In Stock, Qty 9

0
