385877-0001-B1 - Briggs & Stratton Vertical Engine Crankshaft, Cylinder, Crankcase Cover/Sump, Piston/Rings/Connecting Rod Parts Diagram

Vertical Engine

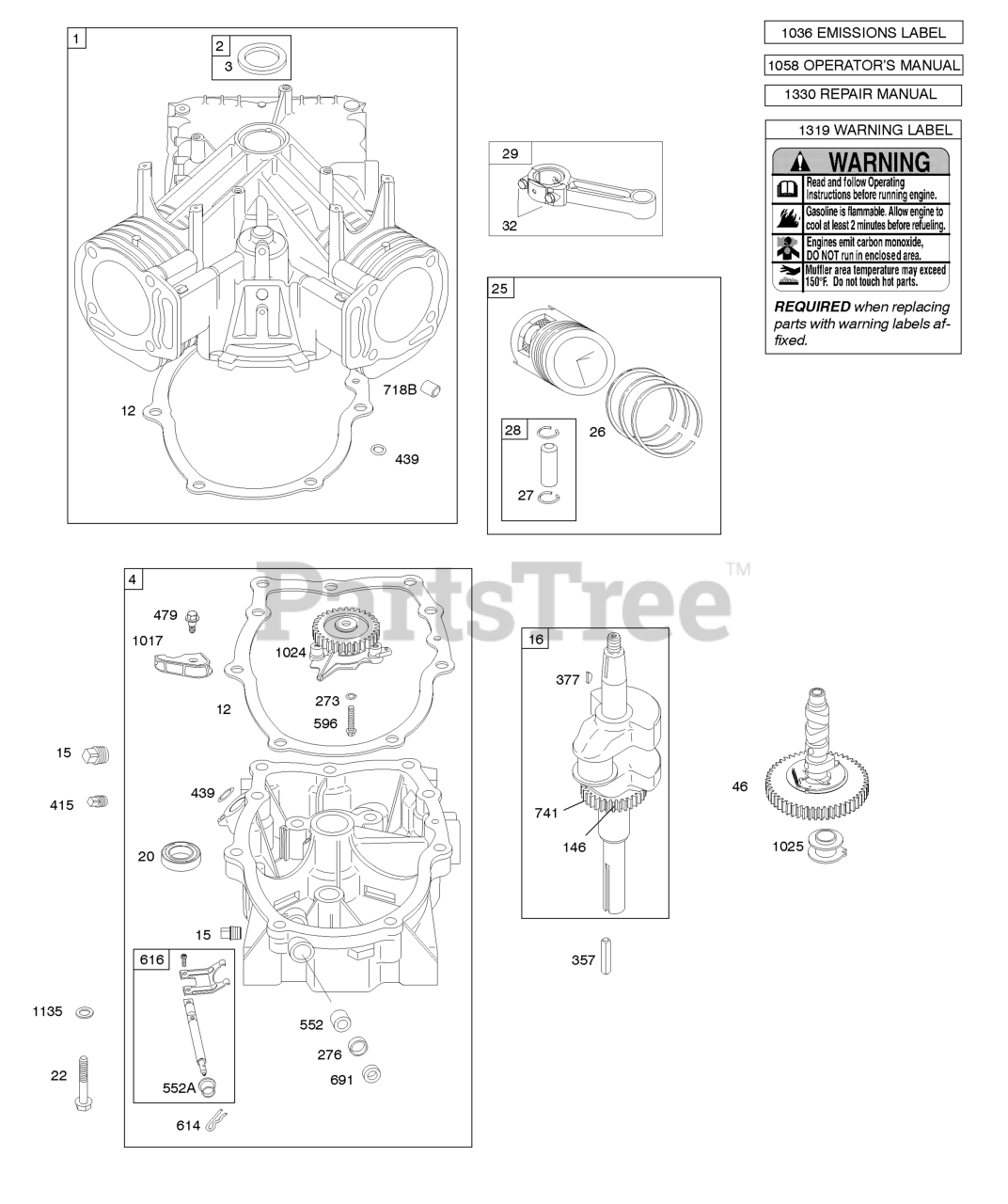

Crankshaft, Cylinder, Crankcase Cover/Sump, Piston/Rings/Connecting Rod Parts Diagram

  • Title

1

Briggs & Stratton 842648

Cylinder Assembly

$604.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 843954

Sump-Engine

$208.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 845254

Gasket-Crankcase

$45.99

$

In Stock, Qty 12

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

Note: (3/8"-18 NPTF-External 7/16" Sq)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 843809

Crankshaft
(Superseded to 84004537)

$332.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 6

0

25

Briggs & Stratton 843805

Piston Assembly

Note: (Standard)

$139.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 844877

Piston Assembly

Note: (.020" Oversize)

$130.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 843806

Ring Set

Note: (Standard)

$53.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 843824

Ring Set

Note: (.020" Oversize)

$55.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690683

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844023

Pin-Piston

$15.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 807900S

Rod-Connecting

Note: (Standard)

$

$

Not available

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.49

$

In Stock, only 1 left!

0

46

Briggs & Stratton 690927

Camshaft

$184.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 690704

Washer-Sealing

Note: (Governor Crank)

$5.99

$

In Stock, only 1 left!

0

357

Briggs & Stratton 691483

KEY, Drive Pulley

$6.99

$

In Stock, only 1 left!

0

377

Briggs & Stratton 808095

Key-Woodruff

$13.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 794903

PLUG

Note: (Square Head)

$5.49

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

479

Briggs & Stratton 843961

Screw

Note: (Oil Pump Screen) (Oil Pump Screen)

$4.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 690701

Bushing-Governor Crank

$7.99

$

In Stock, only 1 left!

0

552A

Briggs & Stratton 806686

Bushing-Governor Crank

$8.49

$

Usually ships in 2-12 days

0

596

Briggs & Stratton 807389

Screw

Note: (Oil Pump) (M6x25mm)

$3.99

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 691550

PIN, Cotter

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 806685

Crank-Governor

$30.99

$

Usually ships in 2-12 days

0

691

Briggs & Stratton 842826

Seal-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

718B

Briggs & Stratton 806469

Pin-Locating

$5.99

$

In Stock, only 2 left!

0

741

Briggs & Stratton 691530

Gear-Timing
(Superseded to 846085)

$19.99

$

Usually ships in 2-12 days

0

1017

Briggs & Stratton 843960

Screen-Oil Pump

$14.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 843959

Pump-Oil

$96.99

$

Usually ships in 2-12 days

0

1025

Briggs & Stratton 690689

Spool-Governor

$22.99

$

In Stock, only 2 left!

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1058

Briggs & Stratton 279765

Operator's Manual

$

$

Not available

1135

Briggs & Stratton 806497

Washer

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 6

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 3 left!

0
