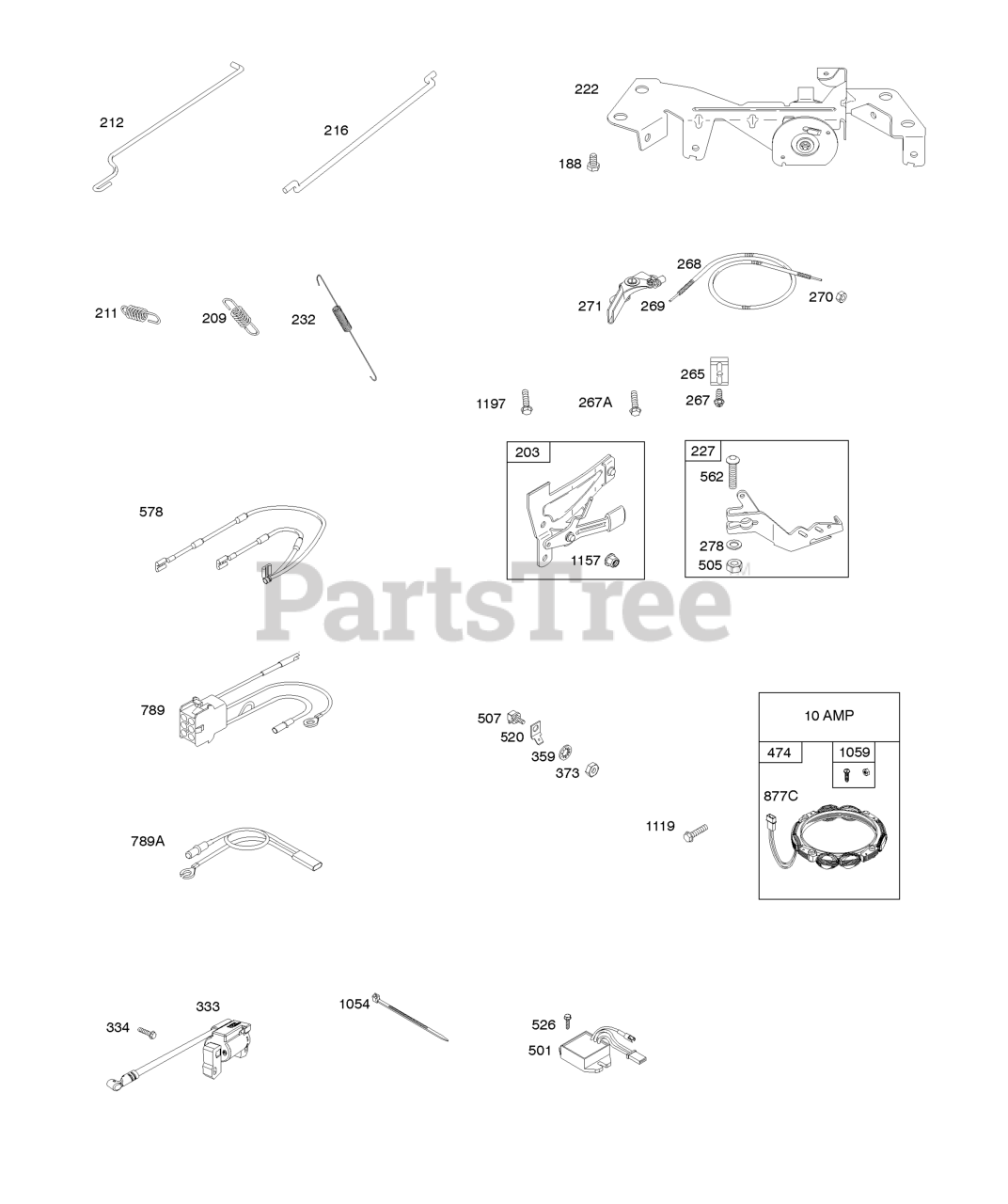

385877-0001-B1 - Briggs & Stratton Vertical Engine Controls, Springs, Alternators, Ignition Parts Diagram

Vertical Engine

Controls, Springs, Alternators, Ignition Parts Diagram

  • Title

10

Briggs & Stratton 806421

SCREW

Note: (Breather Assembly)

$

$

Not available

188

Briggs & Stratton 692056

Screw

Note: (Control Bracket)

$5.99

$

In Stock, Qty 20+

0

203

Briggs & Stratton 808753

Crank-Bell

$38.99

$

In Stock, only 1 left!

0

209

Briggs & Stratton 692071

Spring-Governor

Note: (White)

$7.49

$

In Stock, only 2 left!

0

211

Briggs & Stratton 806868

Spring-Governed Idle

$4.99

$

In Stock, only 1 left!

0

212

Briggs & Stratton 847015

Link-Throttle

$6.49

$

Usually ships in 2-12 days

0

216

Briggs & Stratton 690705

Link-Choke

$6.49

$

In Stock, Qty 9

0

222

Briggs & Stratton 808454

Bracket-Control

$38.99

$

In Stock, only 2 left!

0

227

Briggs & Stratton 690236

Lever-Governor Control

$27.99

$

In Stock, only 1 left!

0

232

Briggs & Stratton 692073

Spring-Governor Link

$9.49

$

In Stock, only 1 left!

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 792629

SCREW

Note: (Casing Clamp) (Casing Clamp)

$3.49

$

Usually ships in 2-12 days

0

267A

Briggs & Stratton 841552

SCREW

Note: (Casing Clamp) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0

268

Briggs & Stratton 691025

CASING, Control Wire

Note: (Cut To Required Length)

$

$

Not available

269

Briggs & Stratton 691026

WIRE, Control
(Superseded to 26634)

Note: (Cut To Required Length)

$

$

Not available

270

Briggs & Stratton 691027

NUT

Note: (Control Wire Casing)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 691028

Lever-Control

$45.99

$

Usually ships in 2-12 days

0

278

Briggs & Stratton 842122

Washer

Note: (Governor Control Lever)

$5.49

$

In Stock, only 4 left!

0

333

Briggs & Stratton 844548

Armature-Magneto
(Superseded to 845606)

$71.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 845823

Nut

Note: (Ground Terminal)

$4.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 845907

REGULATOR

Note: (3 Wire)(16 Amp)

$61.99

$

In Stock, Qty 20+

0

505

Briggs & Stratton 844752

Nut

Note: (Governor Control Lever) (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 2 left!

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 1 left!

0

526

Briggs & Stratton 692067

SCREW

Note: (Regulator) (M6x12mm)

$3.99

$

In Stock, Qty 9

0

562

Briggs & Stratton 690239

Bolt

Note: (Governor Control Lever)

$5.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 844547

Wire Assembly

$17.99

$

In Stock, Qty 20+

0

789

Briggs & Stratton 796030

Harness-Wiring
(Superseded to 698332)

$28.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 844914

Harness-Wiring

$42.99

$

Usually ships in 2-12 days

0

877C

Briggs & Stratton 399916

Wire/Connector-Alternator

Note: (10 AMP)

$12.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0

1157

Briggs & Stratton 690713

Nut
(Superseded to 806447)

Note: (Bell Crank)

$

$

Not available

1197

Briggs & Stratton 841552

SCREW

Note: (Hand Choke Rod) (M5x20mm)

$3.49

$

In Stock, only 1 left!

0
