385877-0001-B1 - Briggs & Stratton Vertical Engine Carburetor Overhaul Kit, Valve Gasket Set Parts Diagram

Vertical Engine

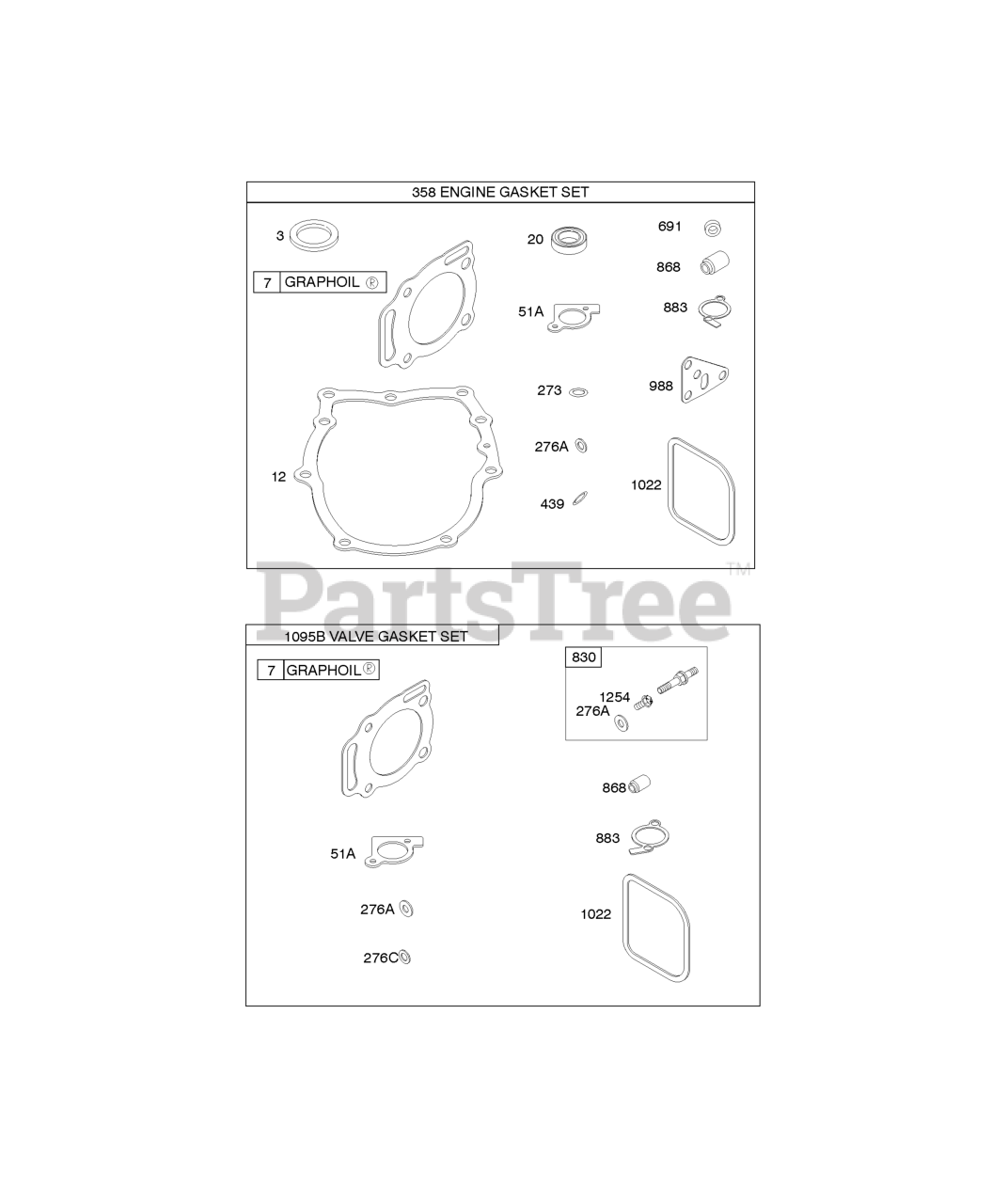

Carburetor Overhaul Kit, Valve Gasket Set Parts Diagram

  • Title

3

Briggs & Stratton 805101S

Seal-Oil
(Superseded to 845659)

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 842622

Gasket-Cylinder Head
(Superseded to 84006734)

Note: (Graphoil)

$32.99

$

In Stock, Qty 12

0

12

Briggs & Stratton 845254

Gasket-Crankcase

$45.99

$

In Stock, Qty 11

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 806418

Gasket-Intake

Note: (Manifold/Heads)

$3.99

$

In Stock, Qty 6

0

94

Briggs & Stratton 844935

Kit-Idle Mixture

$31.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 844906

Pin-Float Hinge

$10.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 844907

Valve-Float Needle

$42.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 844908

Gasket-Float Bowl

$

$

Not available

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

276A

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 20+

0

276B

Briggs & Stratton 806476

Washer-Sealing

Note: (Fuel Solenoid)

$6.99

$

In Stock, only 2 left!

0

358

Briggs & Stratton 842658

Gasket Set-Engine

$146.99

$

In Stock, only 4 left!

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

691

Briggs & Stratton 842826

Seal-Governor Shaft

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 806425

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, only 3 left!

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$4.99

$

In Stock, Qty 20+

0

1095B

Briggs & Stratton 842662

Gasket Set-Valve
(Superseded to 84006736)

$77.99

$

In Stock, only 2 left!

0

1416

Briggs & Stratton 809640

Cap-Carburetor

Note: USE REFERENCE 964 ONLY

$10.99

$

Usually ships in 2-12 days

0
